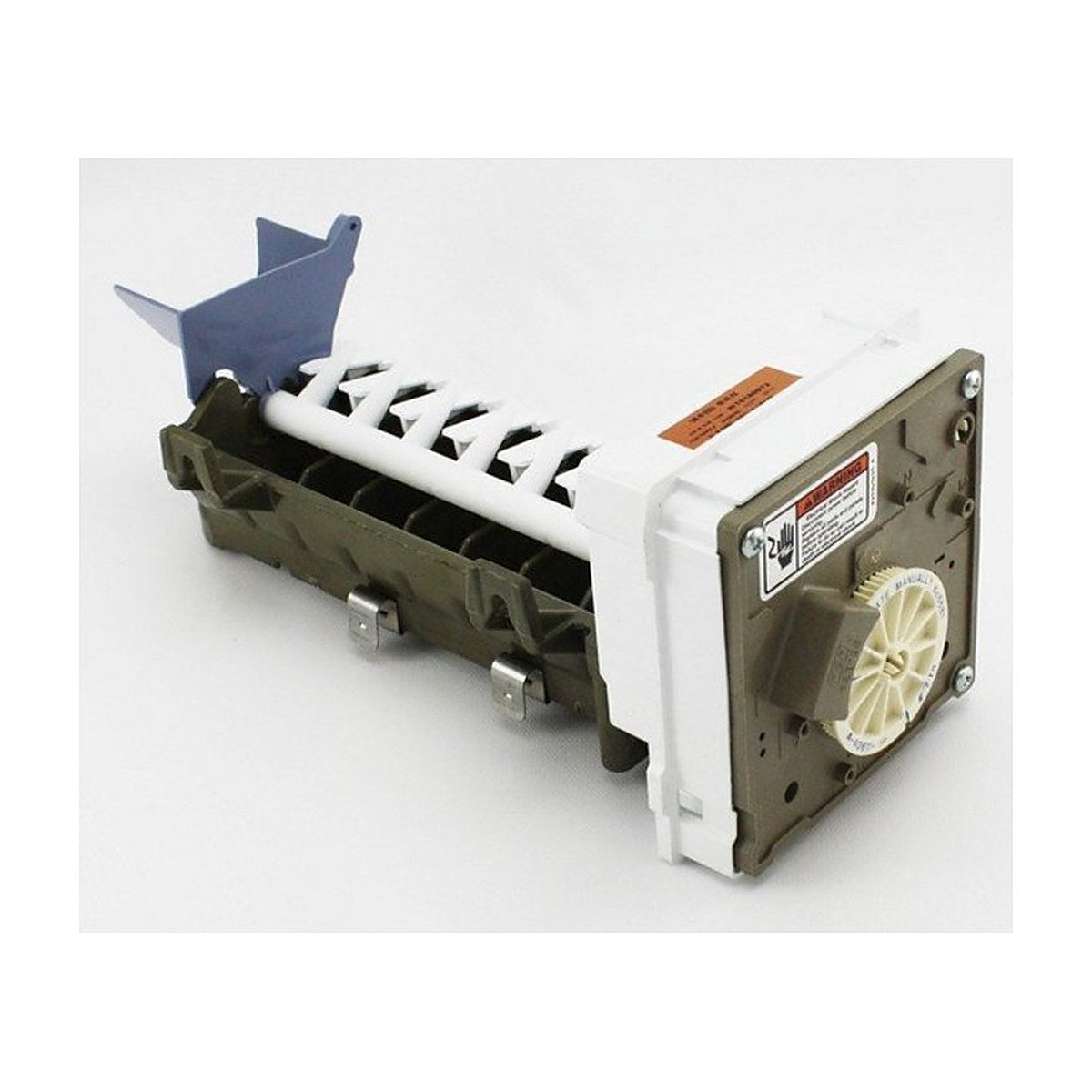

W10190972 Generic Replacement Ice Maker suits Whirlpool, Maytag, Amana, Jenn-Air Fridges with Automatic Ice Makers
- Original part no.
- W10190972
- Part grade
- Generic
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
When the ice tray in a Whirlpool, Maytag, Amana or Jenn-Air fridge stops producing, the ice maker unit itself is often to blame. This generic W10190972 is an aftermarket replacement made to suit the ice maker sold under that number. It's a compatible part rather than one supplied by the fridge maker. Pull out your old ice maker and look for W10190972 on its label before you order.
Fridge ice maker not making ice? Signs the unit has failed
The ice maker runs the whole cycle. It calls for water to fill the mould, waits for the water to freeze, then turns the ejector to drop the cubes into the bin and starts again. It also senses when the bin is full and pauses production. A faulty unit can stop making ice altogether, freeze cubes that never release, jam halfway through the eject cycle or keep harvesting when the bin is already full. Before replacing it, check that water actually reaches the tray and the freezer is cold enough, because a blocked water line or a failed inlet valve can produce the same symptoms.
Part details
- Part number W10190972
- Generic aftermarket ice maker assembly
- Suits Whirlpool, Maytag, Amana and Jenn-Air fridges that use ice maker W10190972
Changing over the ice maker
Turn the fridge off at the wall and shut off its water supply before starting. Empty the ice bin, then undo the mounting screws and unplug the ice maker's wiring connector. Fit the new unit in the same position, reconnect the plug and restore power and water. Allow up to a day for the freezer to settle, and tip out the first batch of ice.
Questions about this part
Will this fit my fridge?
It suits Whirlpool, Maytag, Amana and Jenn-Air fridges that use ice maker W10190972. The easiest check is the number on your old ice maker. If you can't find it, send the fridge's model number through the parts enquiry form and we'll check it.
Specifications
| Brand | Universal |
|---|---|
| Original part number | W10190972 |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | W10190972_G |
| Appliance | Fridge Parts |
| Shipping weight | 0.4 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
