SYPCBLEDE Genuine Rangehood LED Control PCB Board 5 Pin for Glen Dimplex Group Rangehoods, Use with Capacitor ATCAP02
- Original part no.
- SYPCBLEDE
- Part grade
- Genuine
- Appliance
- Rangehood Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

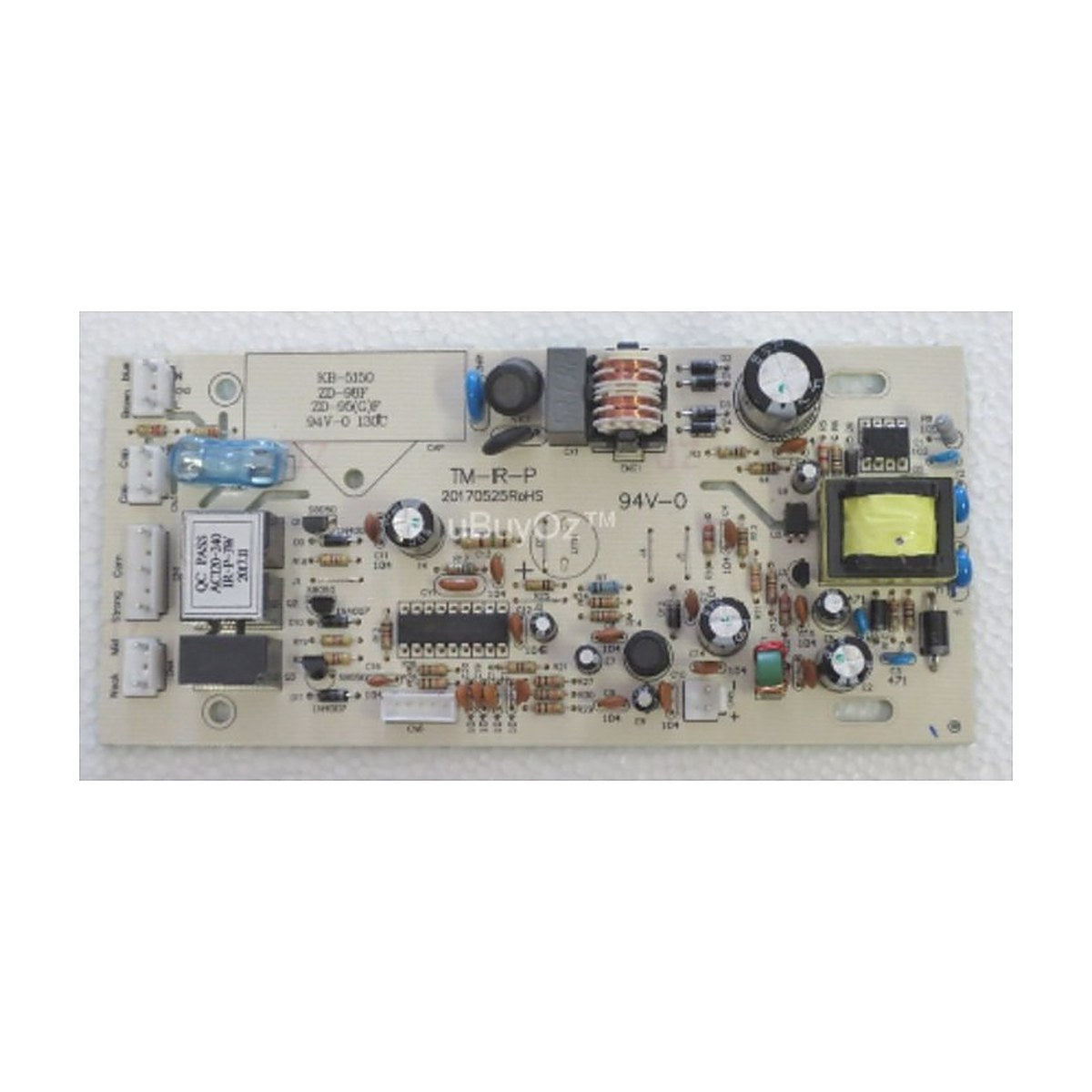

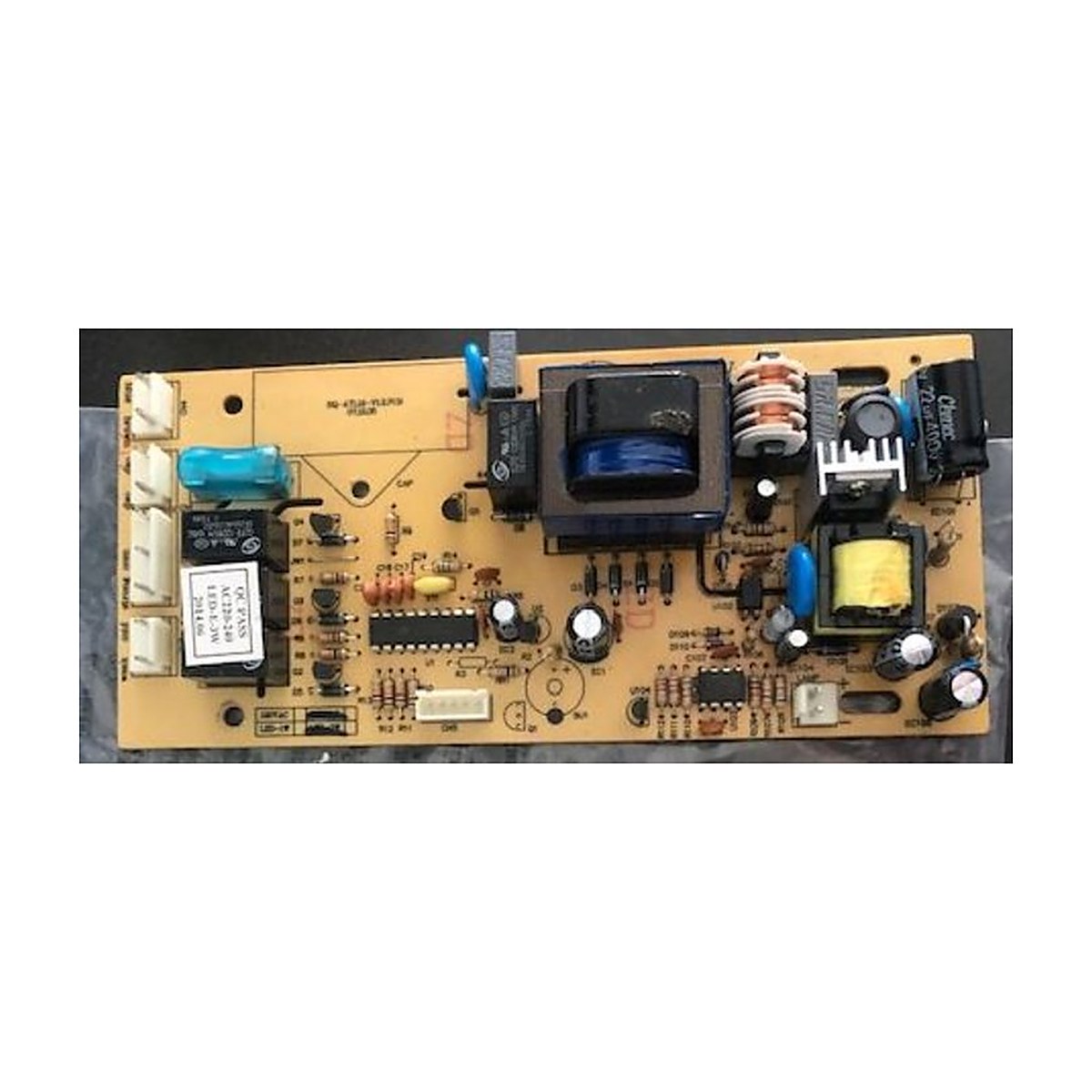

SYPCBLEDE is a genuine 5 pin LED control board for rangehoods supplied through Glen Dimplex, the group behind brands such as Baumatic and Technika. It is one of several boards used across those hoods, with separate versions for LED, LCD and halogen setups, so matching your old board is the key step. The board is used with a separate capacitor, part ATCAP02, which is not included.
Rangehood fan or lights not answering the controls?
Everything you press on the front of the rangehood is read by this board. It then switches the fan motor between its speeds and turns the lights on and off. A failing board can leave the hood completely dead, stuck on a single speed, unable to switch off, flickering its lights or ignoring button presses. Grease, steam and heat are hard on electronics, and a power surge can finish a board off too. Similar symptoms can come from a blown light, a damaged button panel or a motor that has seized, so check those first.
Part details
- Genuine Glen Dimplex rangehood control board
- Stock code SYPCBLEDE
- LED version with a 5 pin connection
- Used with capacitor ATCAP02, sold separately
- Related boards: ATPCB02 (LED), ATPCB04 (LCD), ATPCBA03 (halogen)
| Board type | LED |
|---|---|
| Connector | 5 pin |
Checking and fitting the board
Isolate the rangehood at the power point or switchboard first, and use a licensed electrician if it is hard-wired. Remove the filters and the electronics cover, then photograph your old board and every plug before unplugging anything. Compare the photo with this board, including the 5 pin connector. Fit the ATCAP02 capacitor as part of the job and test each fan speed and the lights.
Questions about this part
How do I know this is the right board for my rangehood?
Glen Dimplex hoods use different boards for LED, LCD and halogen versions, and they can look alike. Send a clear photo of your old board, plus the model number from the label inside the hood, through the parts enquiry form and we'll confirm the match before you order.
Specifications
| Original part number | SYPCBLEDE |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | SYPCBLEDE |
| Appliance | Rangehood Parts |
| Shipping weight | 0.4 kg |
