SE284 Generic Rangehood Halogen Light 12V suits Rangehoods RWC3CH6SS RWC3CH9SS RWE3CH9SS RWE3CL9SS RWG3CH9SS RWH3CH9SS RWC3CL6SS

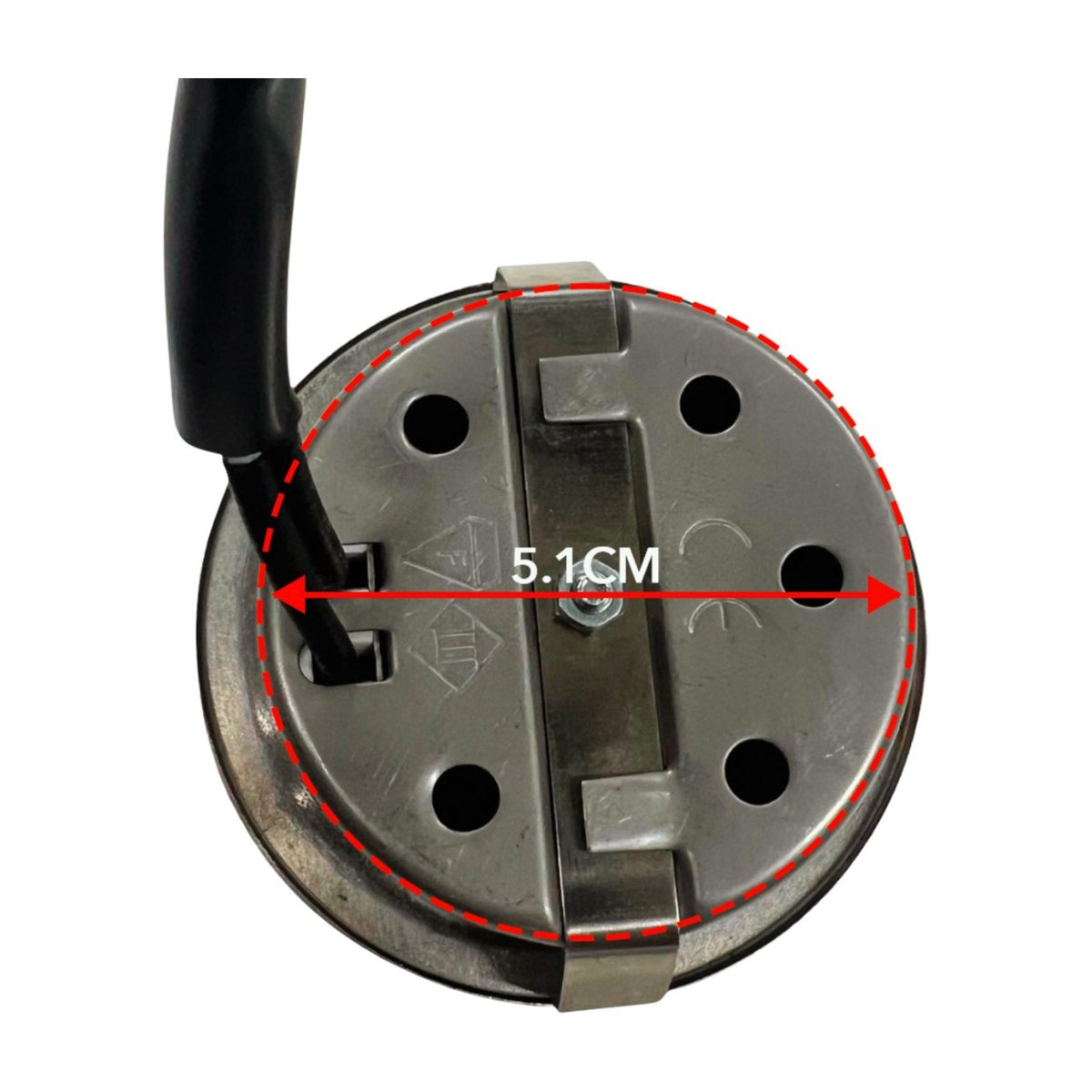

SE284 is a generic 12V halogen light fitting for rangehoods. Model numbers on file include the RWH3CH9SS and RWH3CH6SS, the RWG3CH9SS, four RWE3 hoods such as the RWE3CL9SS, and five RWC3 hoods including the RWC3CH6WH. If your hood's model isn't listed, compare the old light's size and connection before ordering.

Rangehood halogen light gone dark?

Halogen lights give a bright light over the cooktop but run hot, and that heat combined with grease and steam shortens their life. A 12V halogen is fed by a transformer in the rangehood, not directly by mains power. If one light has gone out while the others still work, the light or its holder is usually at fault. When all the lights fail together, test the transformer and the light switch before buying globes. A light that flickers or only works when tapped often has a loose or burnt connection.

Part details

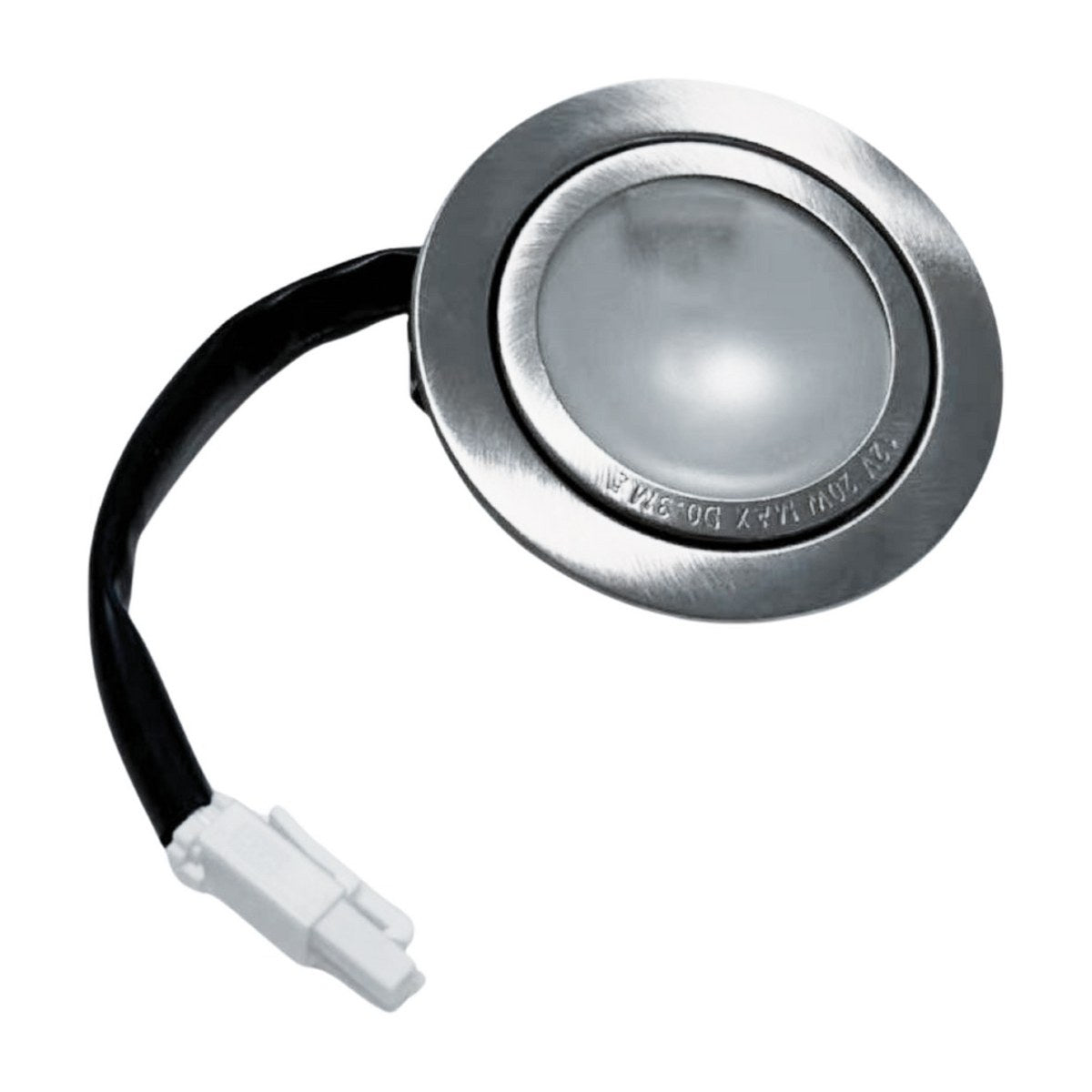

• Generic 12V halogen rangehood light
• Part number SE284
• Listed for RWC3, RWE3, RWG3 and RWH3 rangehood models on file
• Low voltage, runs from the hood's transformer

Changing a halogen light

Turn the rangehood off at the wall or switchboard and give the lights time to cool, as halogens get very hot. Remove the filters, then ease the old fitting out of the hood. Try not to touch the glass of the new halogen with bare fingers, as skin oil can shorten its life. Connect the new light, press it into place and test it. A licensed electrician should handle any hard-wired connections.

Questions about this part

Can I swap this halogen for an LED?

Only if the hood's transformer suits LEDs. Many halogen transformers don't work properly with LED lights and can cause flicker. Unless you know your hood supports LEDs, replacing like for like with this 12V halogen is the simplest fix.
