R234012 Genuine Halogen Lamp Assembly 12V 20W for ILVE Rangehoods IVX40-90 IVX40-60 IVX40-70 CU79-90 CU89-90 X39-90 IVX39-80S A90

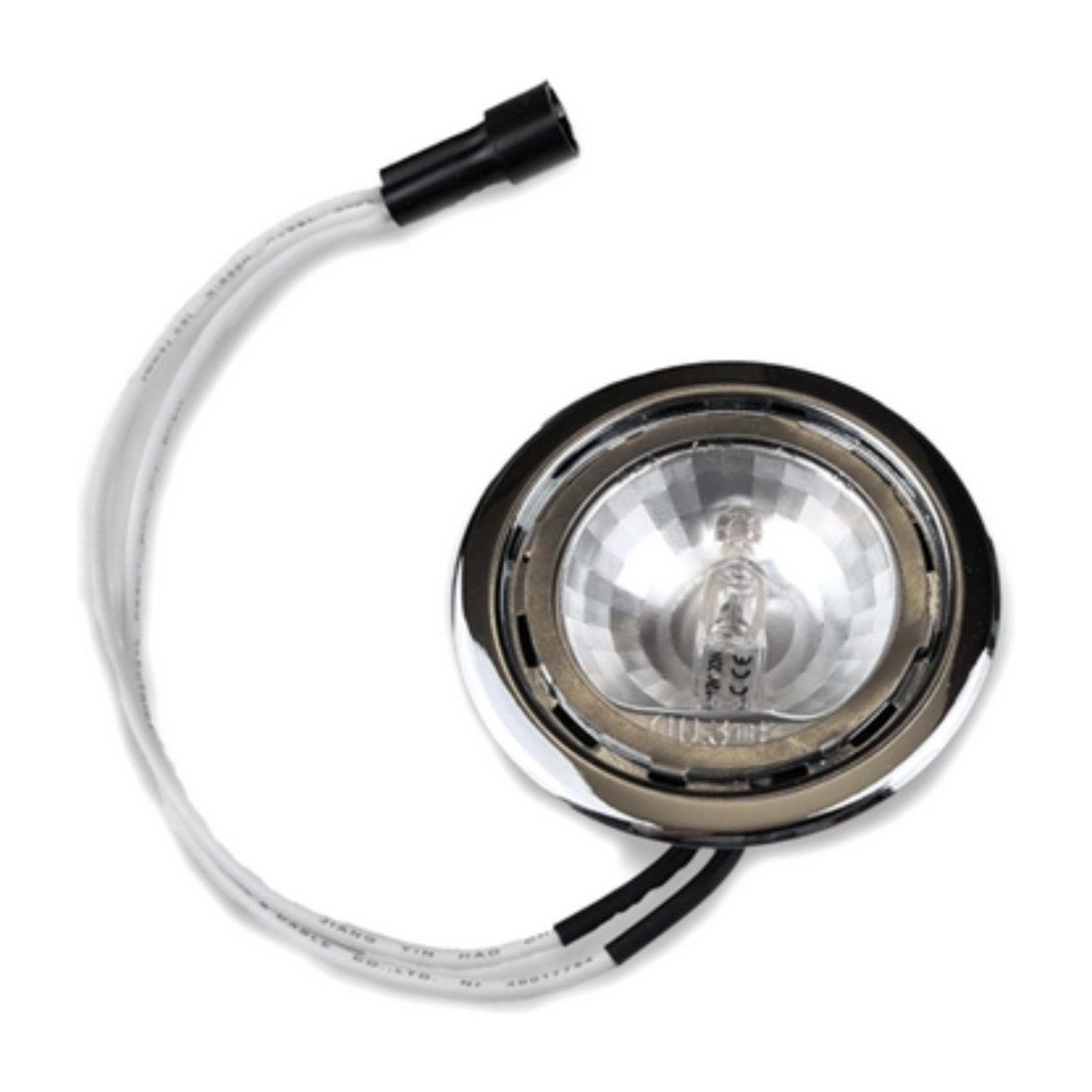

This is ILVE's genuine halogen lamp assembly for rangehoods, part R234012, a 12V 20W down light that shines onto the cooktop. It is listed for ILVE hoods across several ranges, including the IVX40-60, IVX40-70, IVX40-80 and IVX40-90, the CU79-60, CU79-70 and CU79-90 and the matching CU89 sizes, the X39-90, IVX39-80S, T29NF, A90 and B1S-90.

ILVE rangehood light not working?

The lamp assembly is the light fitting set into the underside of the hood. It holds the halogen globe and its connections so the cooking area stays well lit. Because it sits right above the cooktop, it takes a lot of heat, steam and grease. Over the years the lamp holder can go brittle, the contacts corrode and the fitting works loose in its cut-out. If a new globe does not fix a dead light, the light flickers, or one light works and the other does not, the fitting is a likely suspect. A failed 12V transformer gives similar symptoms, so test that if every light is out.

Part details

• Genuine ILVE part R234012
• Halogen down light assembly
• 12V, 20W rating
• 15 ILVE rangehood models on file

Changing the lamp assembly

Switch the rangehood off, isolate the power at the wall or switchboard and let the old light cool fully. Remove the grease filters if they are in the way, then ease the light fitting out of the hood and disconnect its wiring, noting which way it connects. Fit the new assembly, push it home into the cut-out and test the lights. If your hood is hard-wired, have a licensed electrician do the job.

Questions about this part

Will this fit my ILVE hood if it is not listed?

Possibly. Check the part number on the old light fitting, and find the hood model on the label behind the grease filters. If they do not match this listing, send the details through the parts enquiry form and we will check for you.
