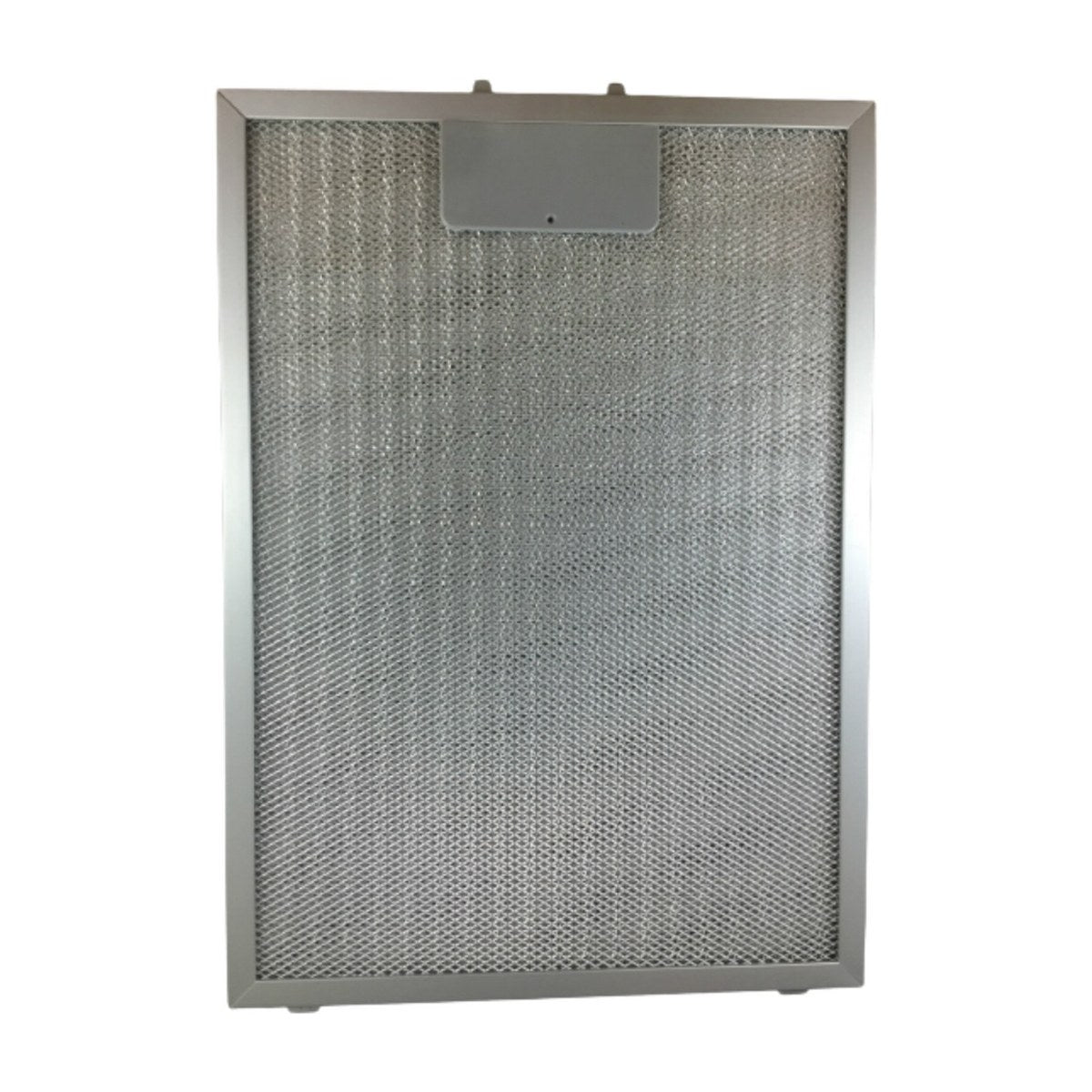

R104163 Genuine Aluminium Rangehood Filter 335 x 267mm for Robinhood, Fisher & Paykel Rangehoods RH600CR RH900CR RH1200CR HC90CXV1 HC60PCSX1

Part R104163 is the genuine aluminium grease filter for Robinhood and Fisher & Paykel rangehoods, measuring 335 x 267mm. Robinhood models listed include the RH600CR, RH900CR, RH900CB and RH1200CR, and on the Fisher & Paykel side it suits hoods such as the HC60PCSX1, HC90CXV1 and HC120PCHPX1. You may also see it written as 104163.

Rangehood not pulling smoke or dripping grease?

The aluminium filter traps grease from cooking fumes before the air reaches the fan and ducting. As grease builds up in the mesh, airflow drops, so the hood gets louder while clearing less smoke and steam. A badly clogged filter can drip grease back onto the cooktop and becomes a fire risk if it's left too long. Filters that are bent, torn or have lost their shape won't seal properly in the hood, letting grease straight past them. Regular cleaning helps, but a damaged or permanently stained filter should be replaced.

Part details

• Genuine part R104163
• Aluminium grease filter
• Measures 335 x 267mm
• Also listed as 104163
• Listed for Robinhood and Fisher & Paykel rangehoods

Swapping the filter

Switch the rangehood off and make sure the cooktop and filter are cool. Release the catch on the filter and lower it out, supporting it so grease doesn't drip onto the cooktop. Check the size against the new filter, then hook the back edge in first and push it up until the catch clicks. Run the fan to check for rattles.

Questions about this part

How many filters does my rangehood need?

That depends on the hood width, as wider hoods often take two or more filters side by side. Count the filters in your hood and check its model number, usually on a label behind the filters, before ordering.
