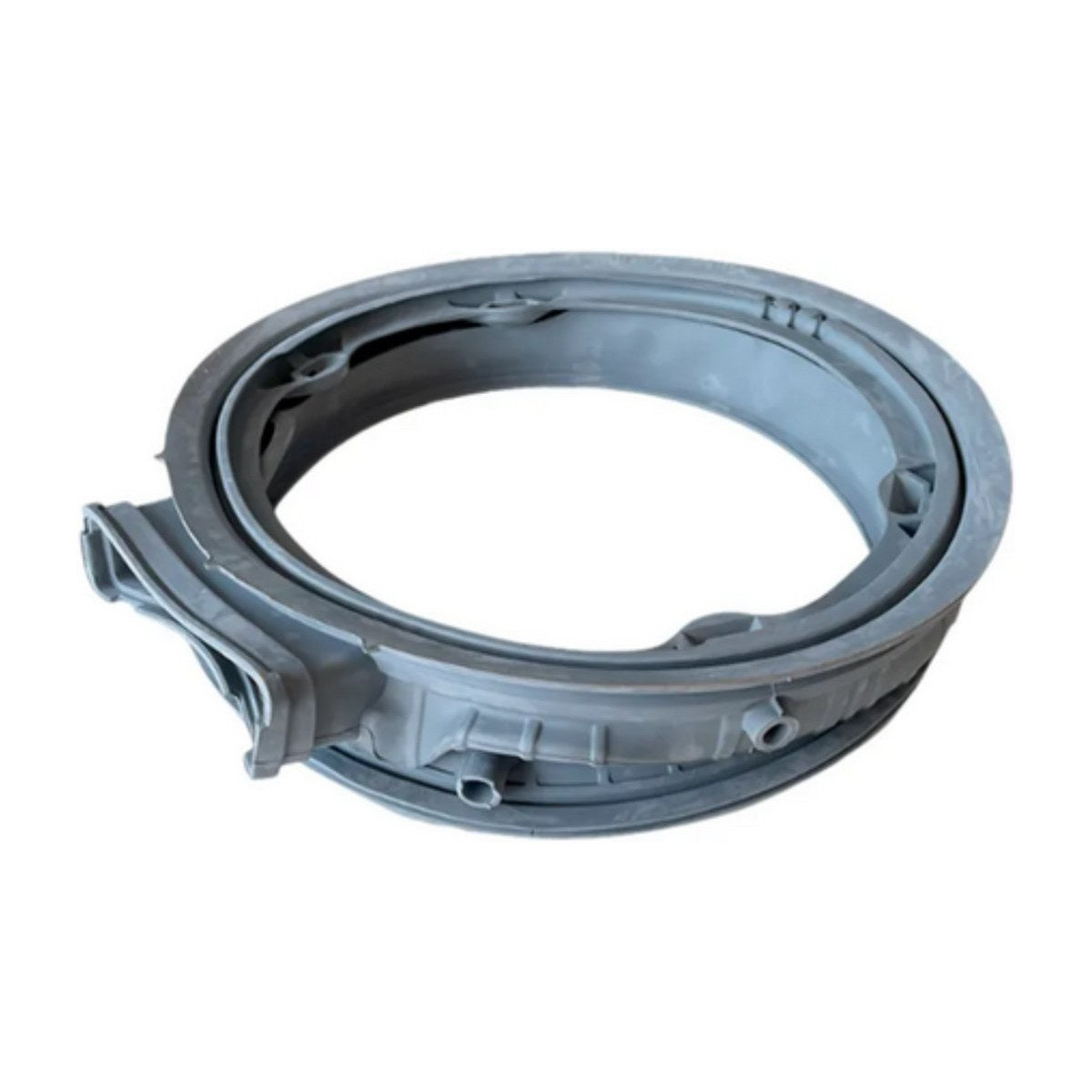

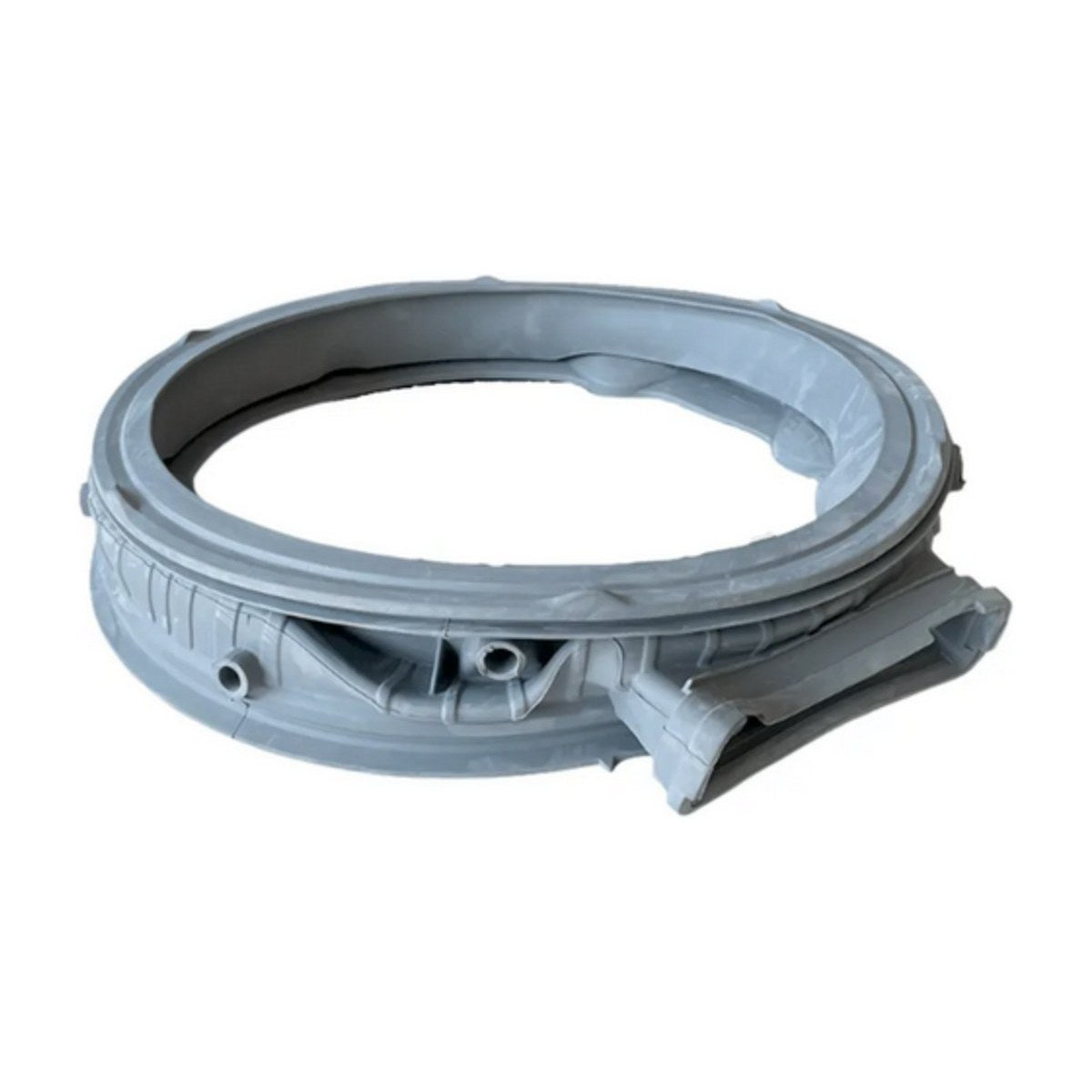

MDS66651627 Genuine Door Gasket for LG Front Load Washing Machines WVC9-1410W WVC9-1412B WVC9-1412W MDS66651603

For the LG WVC9 front loaders, MDS66651627 is the genuine door gasket that seals the drum to the cabinet front. It's linked to LG number MDS66651603, so you may see either on parts lists. Models on file are the WVC9-1410W, WVC9-1412B and WVC9-1412W. Your model is printed on the label inside the door or on the back of the machine.

Signs your LG washer door gasket is failing

During the spin cycle the drum moves around a lot, and this gasket has to flex with it while staying sealed against the door glass. Years of that movement, harsh detergents and trapped objects cause splits and thinning, usually around the bottom. You might find a puddle under the front after each wash, damp patches on the floor, or water marks on the inside of the door. Black spots or a mouldy smell coming from the folds are another sign, especially if the machine is often left shut between washes.

Part details

• Genuine LG part MDS66651627
• Linked to LG number MDS66651603
• Front load washer door gasket
• Listed for WVC9-1410W, WVC9-1412B and WVC9-1412W

Changing the door gasket

Isolate the washer at the power point and shut off both taps. Prise off the outer clamp spring with a flat screwdriver, fold the gasket back and undo the inner clamp. Fit the new gasket to the tub lip first, lining up any locating marks, then refit the inner clamp, the front lip and the outer clamp. Run a rinse cycle and check for drips.

Questions about this part

How do I find my LG washer's model number?

It is on the compliance label, usually on the back panel or inside the door opening. LG models in this range start with WVC9, such as WVC9-1410W. Match yours to the list before ordering.
