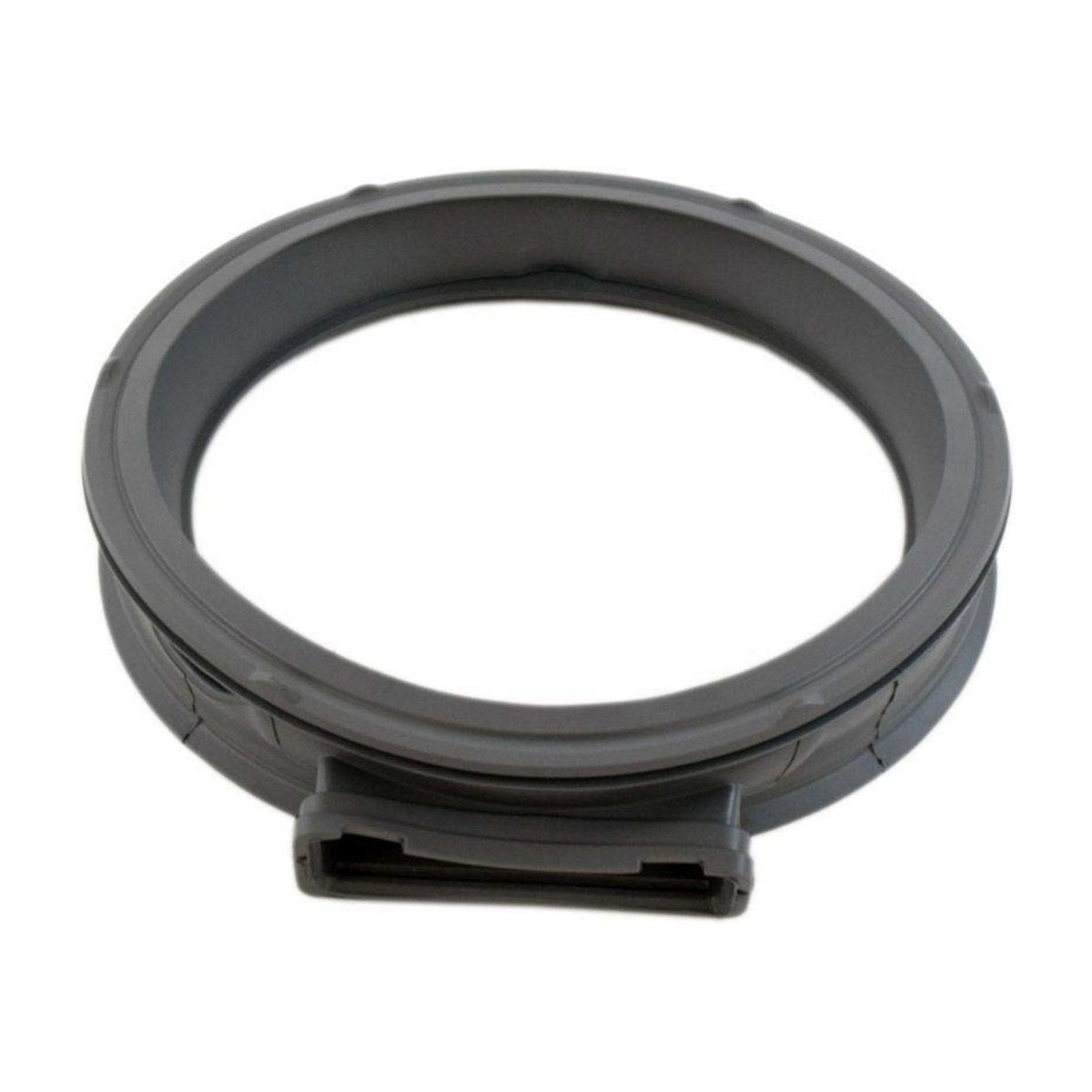

MDS63939301 Genuine Door Seal for LG Front Load Washing Machines and Washer Dryers WD1409HPW WDC1409HCW WTW1409HCW F14A8RDS

Water on the laundry floor after a wash often comes from a split or perished door seal. MDS63939301 is the genuine LG door seal, also called the door boot or gasket, for LG front loaders and washer dryers. It's listed for the WD1409HPW, WDC1409HCW, WTW1409HCW and F14A8RDS. Check the model on the label inside the door opening to confirm before ordering.

LG front loader leaking from the door

The door seal is the folded, flexible boot between the drum opening and the front panel. It flexes as the drum moves and seals against the glass when the door shuts, keeping water inside during the wash and spin. Tears usually start in the lower fold, where coins, underwire and grit get trapped, and mould tends to build up in the same spot. Leaks at the front of the machine, a musty smell that won't wash out and black marks on clothes are the common signs. A torn seal needs replacing, as patches rarely last.

Part details

• Genuine LG part MDS63939301
• Door seal, also known as a door boot or gasket
• For LG front load washing machines and washer dryers
• Listed for WD1409HPW, WDC1409HCW, WTW1409HCW and F14A8RDS

Fitting an LG door seal

Turn the washer off at the wall and turn the taps off. Remove the outer clamp ring from the door opening, peel the seal off the front lip, then release the inner clamp on the drum side. Line up any locating marks on the new seal with the drum, fit the inner clamp first, then the front lip and outer clamp. A spare set of hands makes the clamps much easier.

Questions about this part

Do I need to remove the front panel to fit it?

Often not, as the seal can usually be changed through the door opening once both clamp rings are off. Some LG models are easier with the top or front panel removed, especially when refitting the inner clamp.
