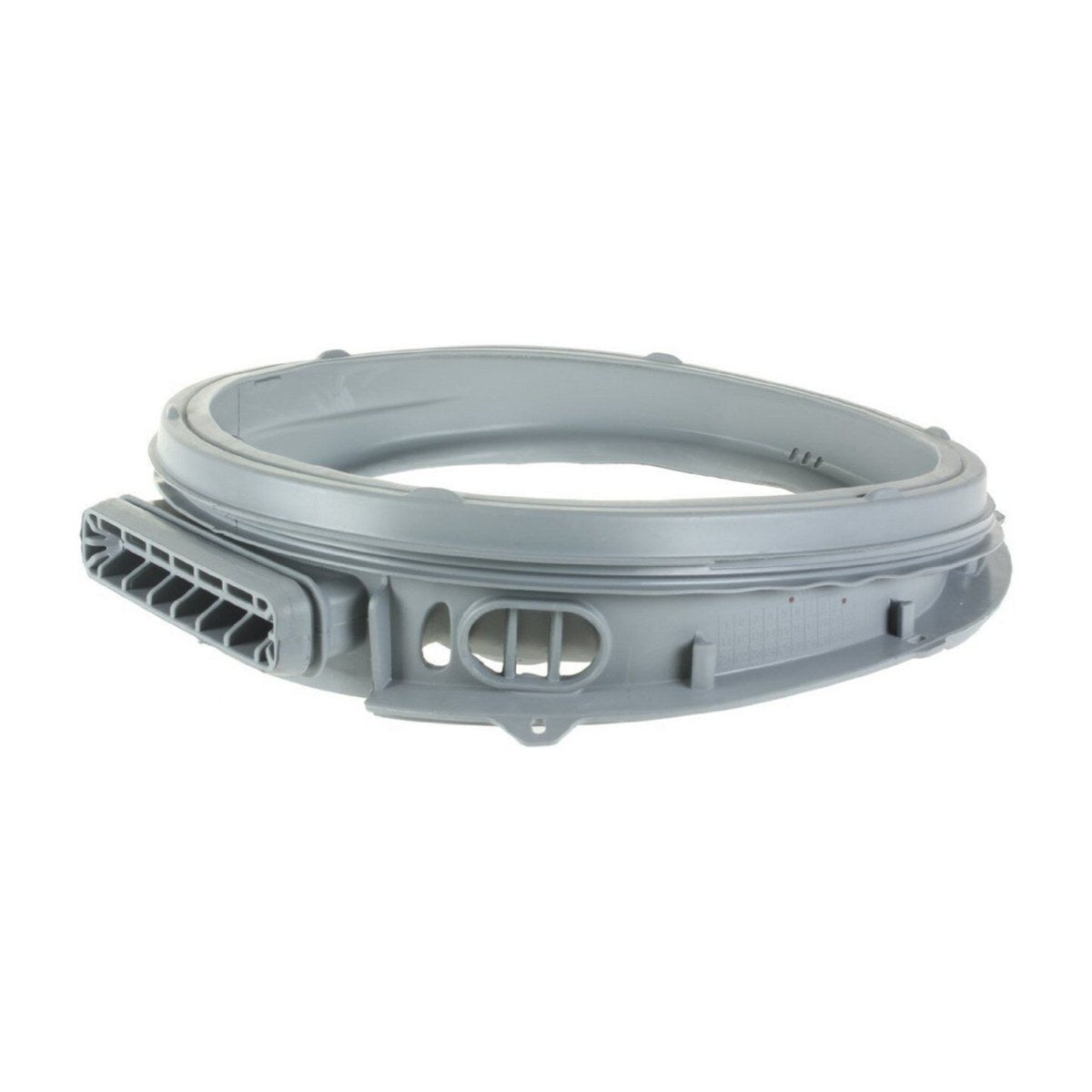

MDS62012603 Genuine Door Seal for LG Front Load Washing Machines WD14070SD6 WD14060SD6 WD1410SBW F1443KD F1495BD WD14075D6

MDS62012603 is LG's genuine door seal, often called the door boot or bellows, for its front load washing machines. This rubber gasket closes the gap between the tub and the cabinet front so water stays in when the door is shut. It's on file for the F1443KD and F1495BD series along with the WD1410SBW, WD14060SD6, WD1411SBW, WD14075D6 and WD14070SD6. A torn or perished seal is a common reason a front loader leaks from the door.

LG front loader leaking from the door?

During a wash, water and suds sit right up against the door seal, so any split, hole or perished fold lets water escape onto the floor. Leaks often show up during the spin or at the start of a wash as the drum fills. Seals also trap water, lint and detergent in their lower folds, which leads to black mould and a sour smell that won't wash away. Look for tears near the bottom of the seal, damage from coins or underwire bras, and stiff or cracked rubber.

Part details

• Genuine LG part MDS62012603
• Front load door seal, also called the door boot
• On file for 16 LG models
• Listed for F1443KD, F1495BD and WD14070SD6

Replacing an LG door seal

Unplug the washer and turn the taps off. Remove the outer clamp band, peel the seal off the cabinet front, then work around the inside to release the inner band holding it to the tub. Note how the old seal is oriented, including any drain holes at the bottom, and line the new one up the same way. Seat both bands fully, then run a rinse cycle and check for drips.

Questions about this part

Is this the genuine LG seal?

Yes. MDS62012603 is a genuine LG part listed for the F1443KD, F1495BD and WD-series models on file. Check the model on the label inside the door opening or on the back of your machine to confirm the match.
