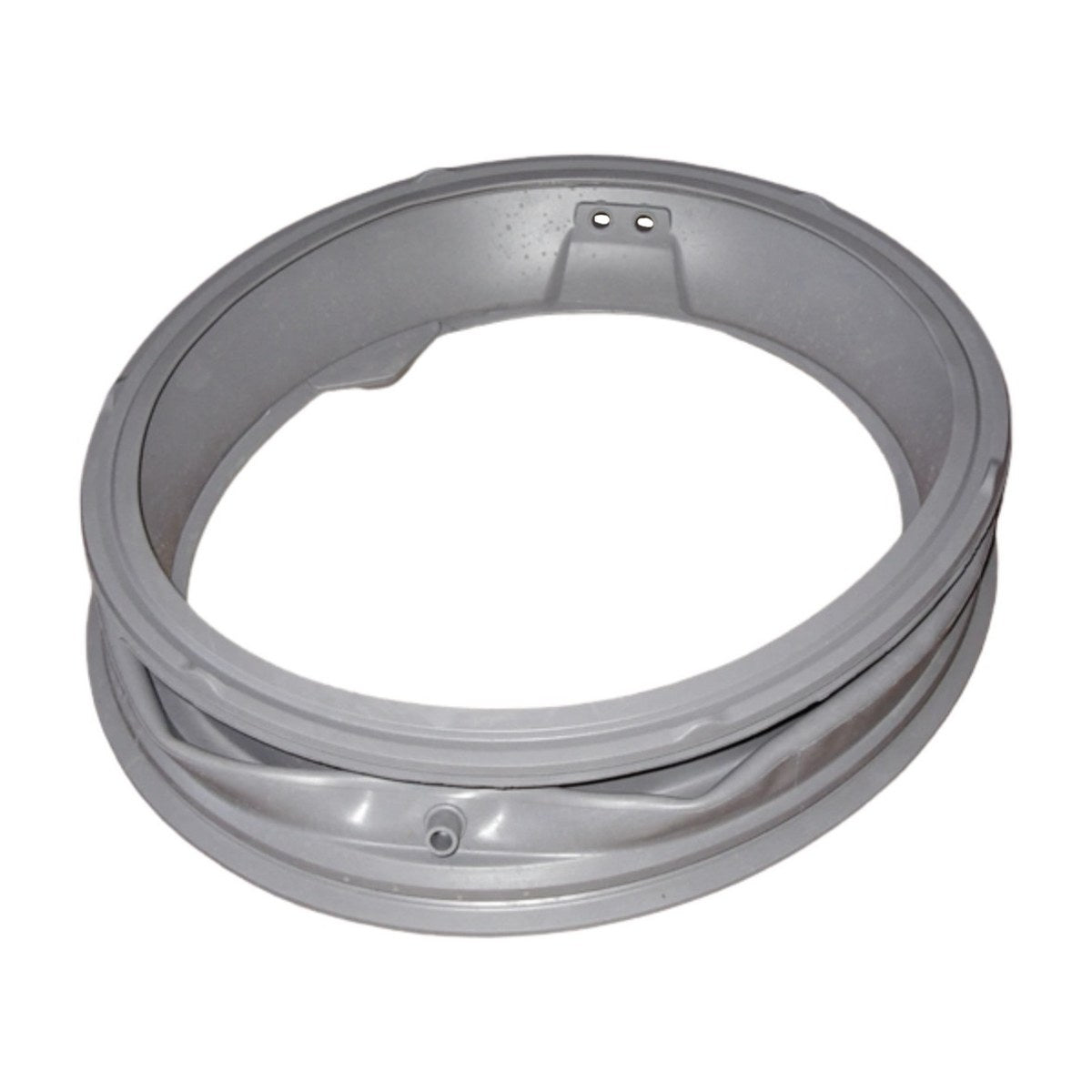

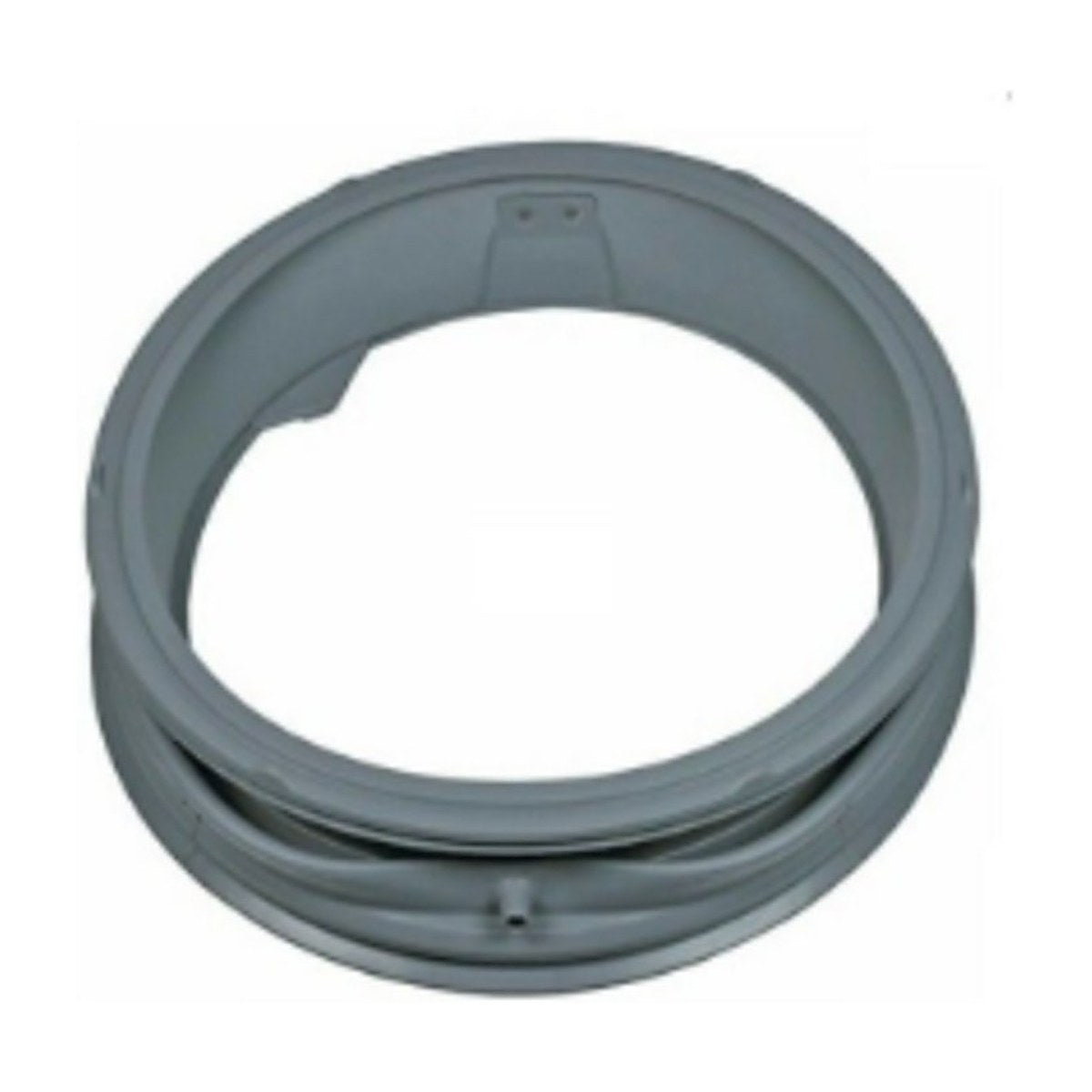

MDS38265303 Genuine Door Seal with 2 Holes for LG Washing Machines WD14030D6 WD14130D6 WD14024D6 WD1409NCW WD14135D6 F14A8FD WTW1409VCB

Part MDS38265303 is a genuine LG washing machine door seal with two holes moulded into it. LG also catalogues it as MDS38265305 and MDS65695801. It's listed for the WD14030D6 and WD14039D, the WD14130D6 and WD14135D6, WD14024D6 machines and the WD1408 and WD1409 ranges, plus the F14A8FD, WD-F14427D and WTW1409VCB. Swap it in when the old seal is split or stained beyond cleaning.

Why an LG door seal starts leaking

Sitting between the drum opening and the door glass, the seal stops water escaping while the drum turns and flexes on its suspension. Constant movement, detergent residue and trapped water slowly take their toll. Splits usually start in the lower fold, where hair pins, coins and grit collect, and the first sign is often a puddle under the washer after a cycle. Black spots that won't clean off, a sour smell when the door opens and loose sections near the clamp are other common reasons to replace it.

Part details

• Genuine LG part MDS38265303
• Cross reference MDS38265305 and MDS65695801
• Seal version with two holes
• Listed for LG WD14030, WD14130 and WD1409 series washers

Fitting the new seal

Switch off at the wall and turn off the water before starting. Release the front wire band, ease the seal off the cabinet lip, then undo the inner band at the tub. Position the new seal so both holes sit where the old ones were, seat it all the way round the tub lip and refit the bands. Test with a short wash.

Questions about this part

My old seal has two holes, is this the right one?

This seal has two holes and is listed for LG WD14030D6, WD14130D6, WD1409NCW and similar models. Check your model number on the label inside the door or on the back, as LG also makes single hole versions for other machines.
