IM61-03 Generic Fan Forced Oven Element 2800W 3 Ring 186mm suits Ariston Ovens CP-059MD-X CP-859MD-X CP-859MT-X XC902GHDC
- Original part no.
- IM61-03
- Part grade
- Generic
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

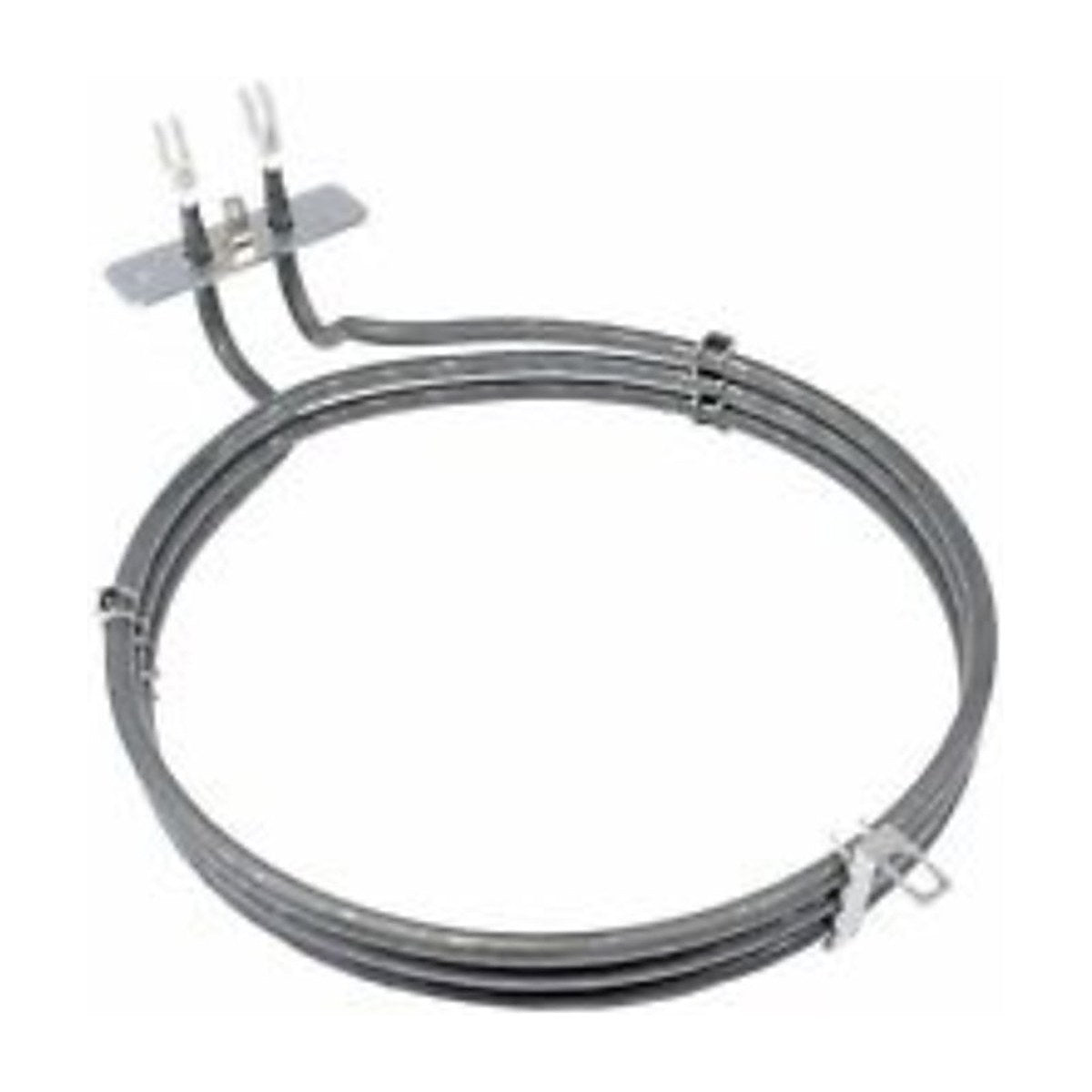

Here's a generic replacement fan forced element for Ariston ovens, part number IM61-03. It's rated at 2800W, has three heating rings across a 186mm diameter, and uses a long neck with an earth connection. It suits Ariston models including the CP-059MD-X, XC902GHDC, CP-859MD-X, CP-859M-X and CP-859MT-X. Before ordering IM61-03, check that your old element matches on ring count, diameter and neck length.
Ariston oven not heating on fan forced? Check the element
The fan element is the round heating ring that wraps around the fan at the back of the oven. The fan pulls air across it and pushes the heat out through the cavity, so this element does the heavy lifting on fan forced settings. When it fails, the oven may stay cold or only warm slowly on fan modes while the top and bottom elements still work. A safety switch that trips the moment you select fan forced, blistering or a break in the sheath, and food that won't brown are other common signs. A multimeter continuity test across the terminals will confirm it.
Part details
- Generic replacement element, part IM61-03
- 2800W rating
- 3 ring design, 186mm diameter
- Long neck with earth connection
- Listed for Ariston XC902GHDC, CP-059MD-X, CP-859M-X, CP-859MT-X and CP-859MD-X ovens
| Power | 2800W |
|---|---|
| Rings | 3 |
| Diameter | 186mm |
| Neck | Long neck |
| Earth | Earth connection |
Fitting the IM61-03 element
Isolate the oven at the switchboard and let it cool fully. Hard-wired ovens need a licensed electrician. Take off the fan cover inside the cavity to reach the element. Photograph the terminal and earth connections before undoing them, because the new element must be wired the same way. Once everything is back together, run the oven on fan forced and confirm it heats evenly.
Questions about this part
How do I know this is the right element for my Ariston?
Find the model number on the rating plate, usually on the door frame or side trim, and compare it with the models listed here. Also count the rings on your old element and measure it across. It should be three rings at 186mm.
Is this a genuine Ariston part?
No. IM61-03 is a generic aftermarket element made to suit these Ariston ovens. It matches the 2800W rating and the 3 ring, 186mm layout listed for those models.
Specifications
| Original part number | IM61-03 |
|---|---|
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | IM61-03_G |
| Appliance | Oven Parts |
| Shipping weight | 0.7 kg |
