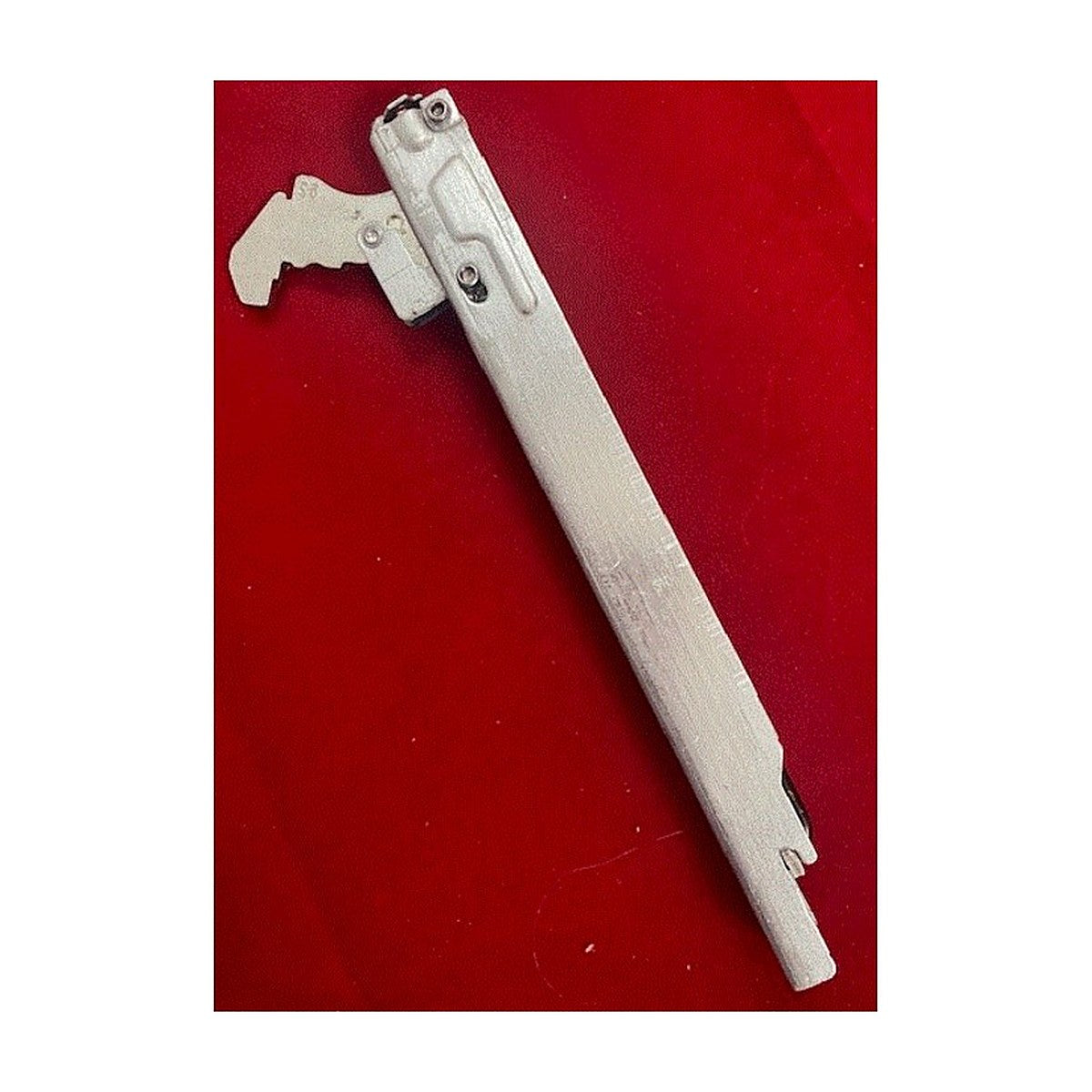

H2530140008 Genuine Oven Door Hinge for Blanco Ovens, Also H25-30-140-008, Spring Hinge for a Weak or Broken Oven Door

H2530140008, also written H25-30-140-008, is a genuine Blanco hinge for an oven door. It bears the weight of the door and pulls it closed against the seal. We don't hold a model list for H2530140008, so look for the number on your old hinge before ordering. If it can't be read, send your oven model number through the parts enquiry form and we can help.

Oven door hinge faults to look for

Oven hinges combine a pivot and a spring. The pivot lets the door swing down, and the spring stops it dropping and pulls it closed. Heat and constant use eventually fatigue the spring or wear the pivot, so the door may slam open, close with a gap, sit lopsided or bounce back up. Steam or heat escaping around the top of the door is a common side effect. A broken hinge can also let the door come loose, which is a burn risk with a hot oven.

Part details

• Genuine Blanco part H2530140008
• Also numbered H25-30-140-008
• Hinge for an oven door
• Replaces a weak, bent or broken hinge

Fitting the hinge

With the oven cold and the power isolated, open the door and flip the hinge locking clips if fitted, then lift the door off. Remove the screws holding the old hinge to the oven frame and slide it out. Fit the new hinge, refit the door, release the clips and check the door closes evenly on both sides.

Questions about this part

Is H25-30-140-008 the same part?

Yes. H25-30-140-008 is the same number written with dashes. You may see either form on the old hinge or in a parts list, and both refer to this genuine Blanco hinge.
