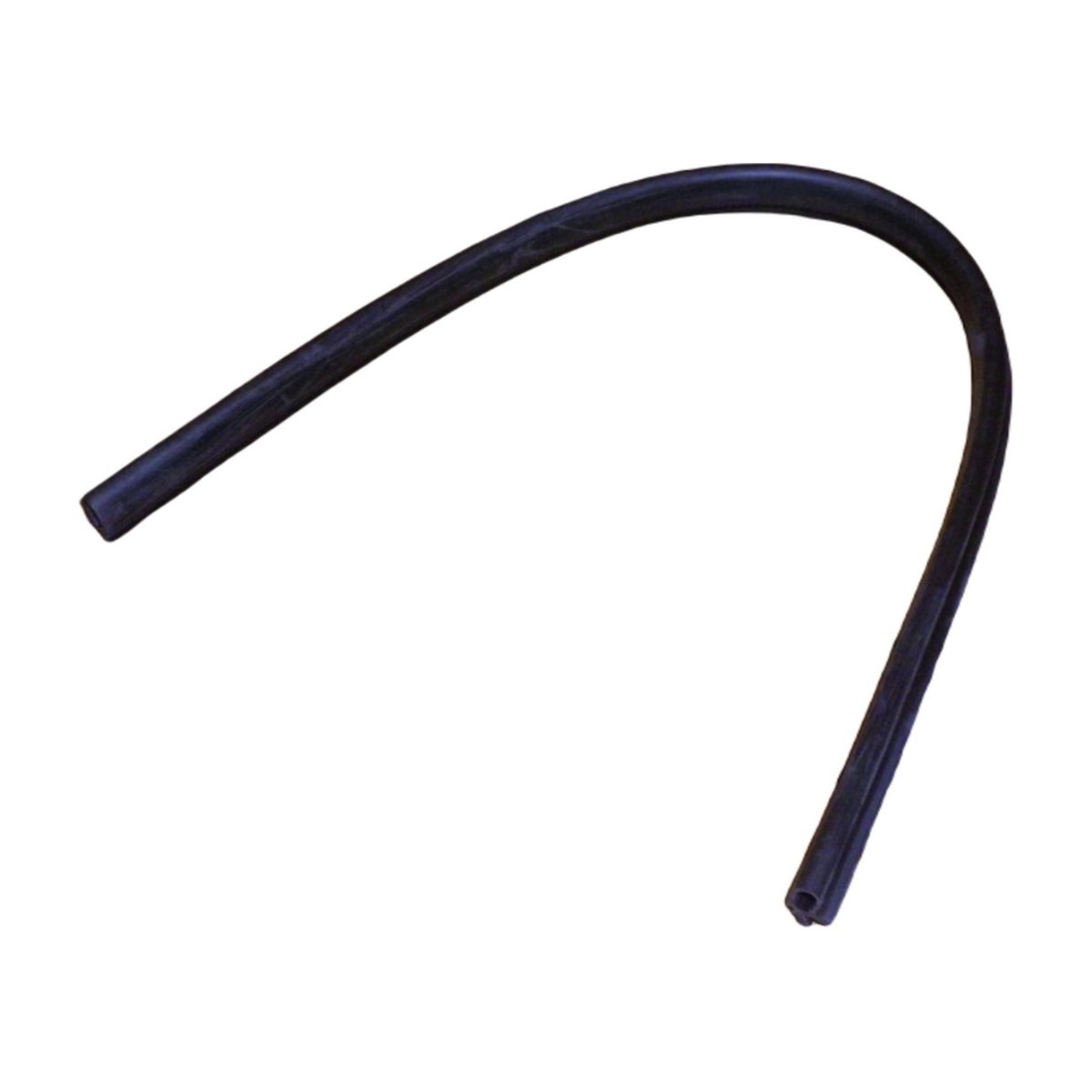

H012G4050243 Genuine Dishwasher Lower Door Seal for Haier, Fisher & Paykel Dishwashers HDW300SS HDW201SS HDW101SS DW60CCX1 DW60CEX1

Water on the floor in front of the dishwasher? H012G4050243 is the genuine lower door seal, the inner door gasket for Haier dishwashers including the HDW300SS, HDW201SS, HDW201WH, HDW101SS and HDW12-TFE3SS. The same seal is listed for Fisher & Paykel DW60CCX1, DW60CCW1, DW60CEX1 and DW60CDX3 models. It runs along the bottom of the inner door, a common place for door leaks to begin.

Dishwasher leaking from the bottom of the door?

On most dishwashers the sides and top of the door close against a gasket around the tub, while the bottom edge relies on a separate lower seal fitted to the inner door. During a wash, water is sprayed hard against the door, and this strip stops it running out underneath and onto the floor. Heat and detergent slowly harden the rubber, and it can split, shrink or be dragged out of place by the lower rack. Typical signs are a puddle at the front after a cycle, water marks on the kickboard and swollen cabinetry beside the dishwasher.

Part details

• Genuine part H012G4050243
• Lower inner door seal for dishwashers
• Listed for Haier HDW101, HDW201, HDW300 and HDW12-TFE3 models
• Listed for Fisher & Paykel DW60CC, DW60CE and DW60CD models

Fitting the lower door seal

Switch the dishwasher off at the wall and open the door fully. Note how the old seal is attached and which way its lip faces before removing it, then clean any grime or detergent build-up from the mounting edge. Fit the new seal in the same orientation along its full length. Run a rinse cycle with a dry towel on the floor to check for drips.

Questions about this part

How do I know this seal fits my dishwasher?

Check the model on the rating label, usually on the edge of the door or inside the door frame. If it reads HDW300SS, HDW201SS, HDW101SS, DW60CCX1 or another listed model, this is the seal on file for it.
