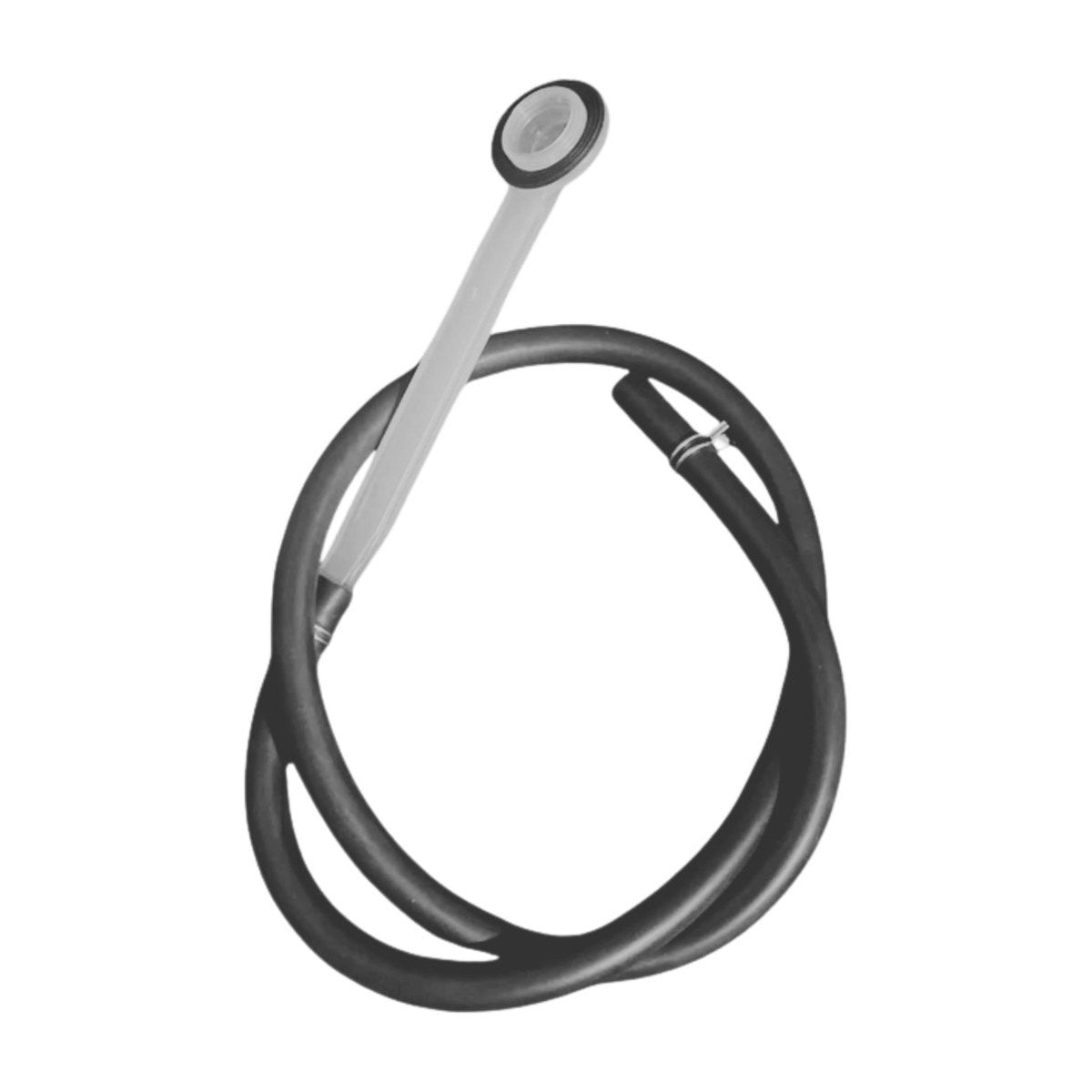

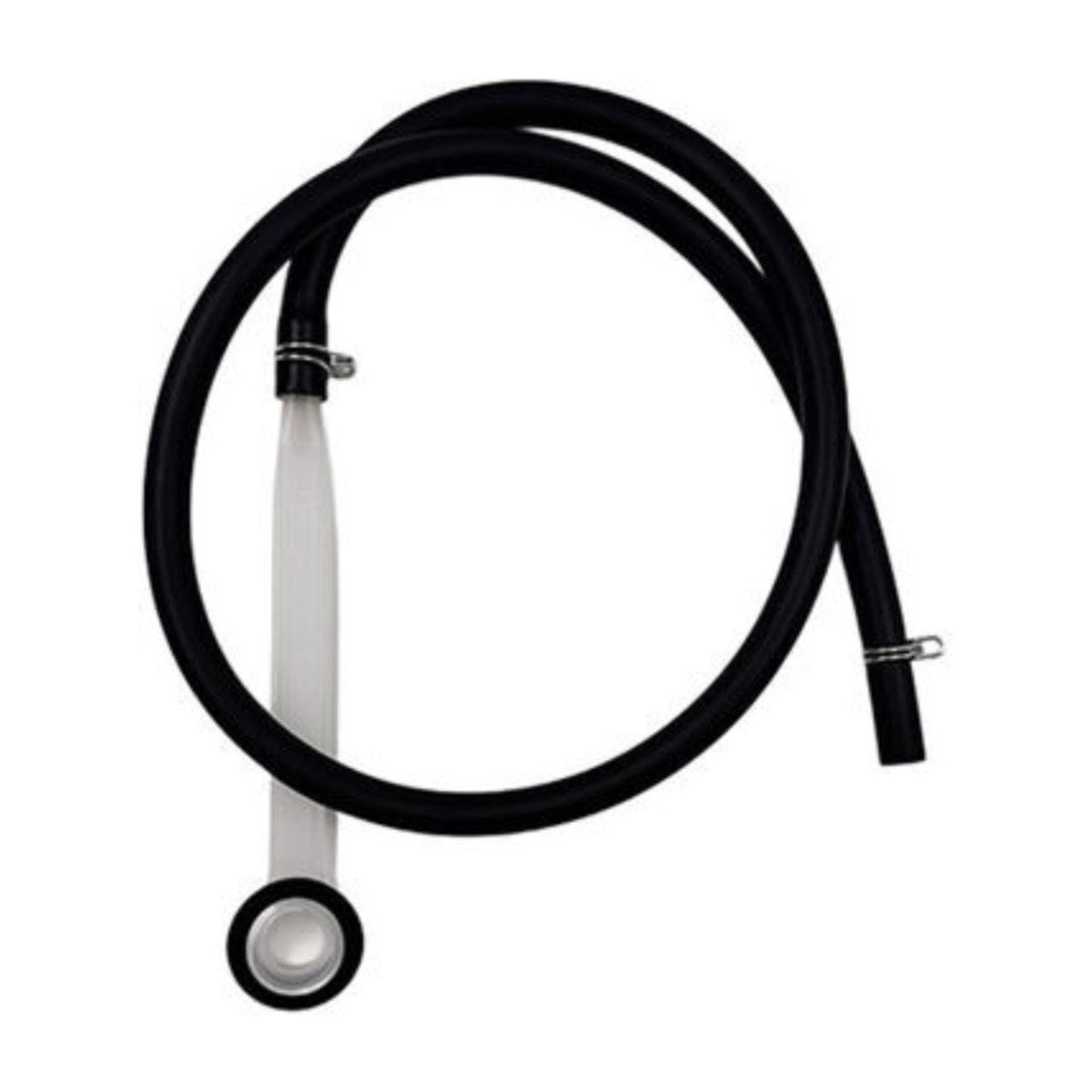

H0120802831 Genuine Upper Spray Outlet Hose Assembly for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60FC6X1 DW60UC6X HDW15G3X
- Original part no.
- H0120802831
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Part H0120802831 is the genuine outlet assembly that carries water up to the upper spray arm in Fisher & Paykel and Haier dishwashers. It replaces H0120301040A and is listed for 13 models, including the F&P DW60FC4X1 and DW60FC6X1, the DW60FC4W1, the DW60UC6X and the DW60UZ6B, plus the Haier HDW15G3W and HDW15G3X.
Top rack dishes coming out dirty?
Water pumped from the sump splits between the lower spray arm and this outlet, which carries the rest up to feed the upper arm. If the hose splits, a joint loosens or a seal perishes, water escapes before it reaches the top basket. Dishes and glasses in the upper rack come out dirty or spotted while the bottom rack is clean, the upper spray arm barely turns, or water leaks under the dishwasher and, on some models, triggers a leak error.
Part details
- Genuine outlet assembly H0120802831
- Feeds water to the upper spray arm
- Replaces H0120301040A
- Listed for 13 F&P and Haier dishwashers
Replacing the outlet assembly
Turn off the power and the water tap, then pull the dishwasher out of its cavity. You'll often need to remove a side or rear panel to reach the full length of the assembly. Photograph how it's routed and clipped, transfer any seals, and press each joint fully home. Run a rinse cycle and check underneath for leaks before pushing it back.
Questions about this part
Why are only my top rack dishes dirty?
When the upper spray arm doesn't get enough water, the top basket misses out. Check the arm's holes for blockages and that it spins freely. If those are fine, a leaking or split outlet assembly is a likely cause.
Specifications
| Original part number | H0120802831 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | H0120802831 |
| Appliance | Dishwasher Parts |
| Shipping weight | 0.5 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
