H0120801601 Genuine Door Lock Hook Assembly for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60FC6X1 DW60CHX1 DW60UC6X DW60UZ6B HDW15G3X HDW13G1X

When a dishwasher door won't stay shut, or the machine won't start because it thinks the door is open, the latch is the first thing to check. H0120801601 is the genuine door lock hook assembly used in both Fisher & Paykel and Haier dishwashers, including the DW60FC2X1, DW60FC4X1 and DW60FC6X1, the DW60CHX1 and DW60CKX1, DW60U models, and Haier HDW13G1X, HDW14G2X and HDW15G3X machines.

Fisher & Paykel dishwasher door not latching

The door lock holds the door firmly closed against the tub seal and tells the control that the door is shut so a wash can start. A plastic hook on the door engages the latch, and with thousands of openings the hook can wear, crack or snap, and the switch that senses the door can fail. Typical signs are a door that springs open, has to be slammed to latch, or closes but the dishwasher won't start, or stops partway through a cycle. Water dripping from the top of the door can also point to a latch that isn't pulling the door in tight.

Part details

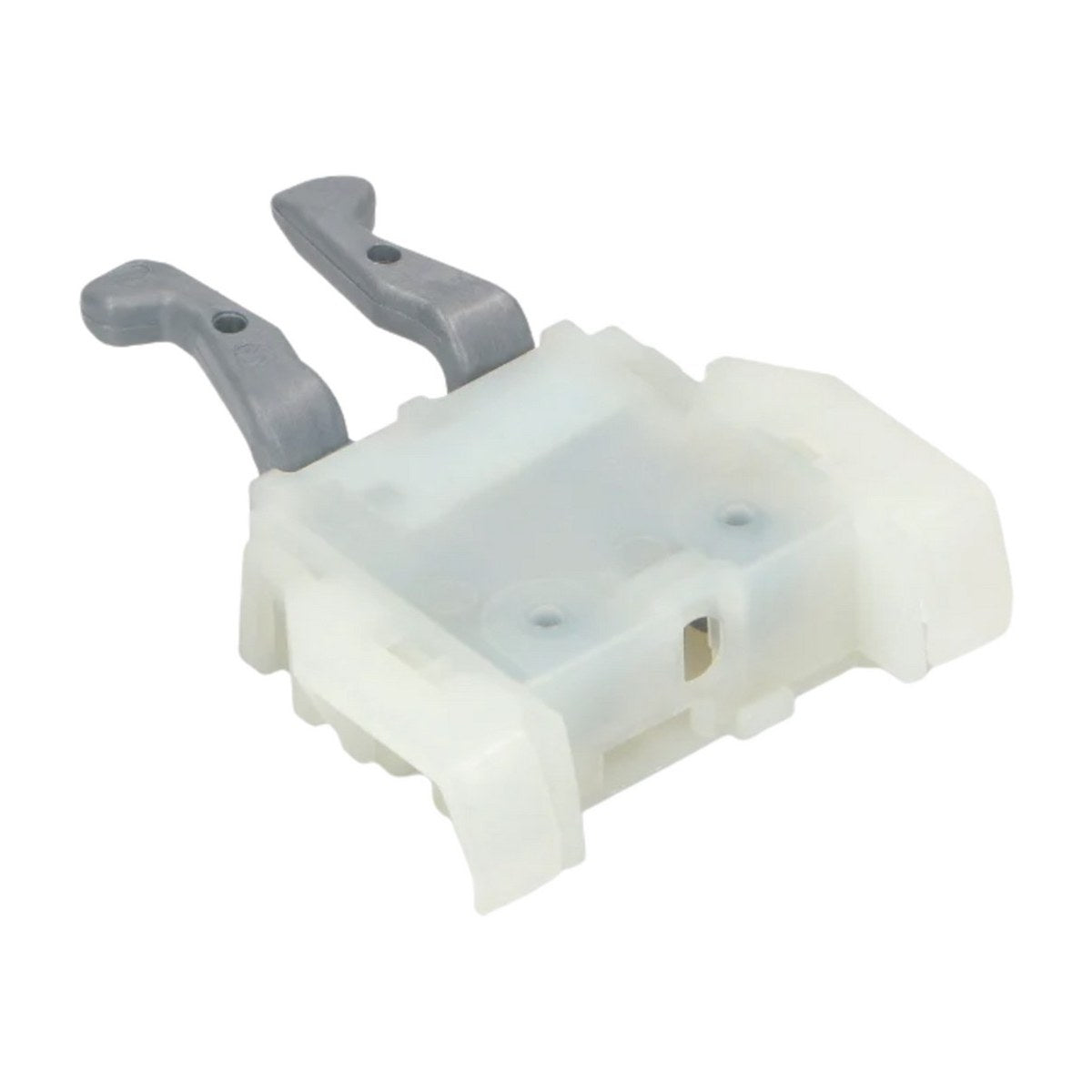

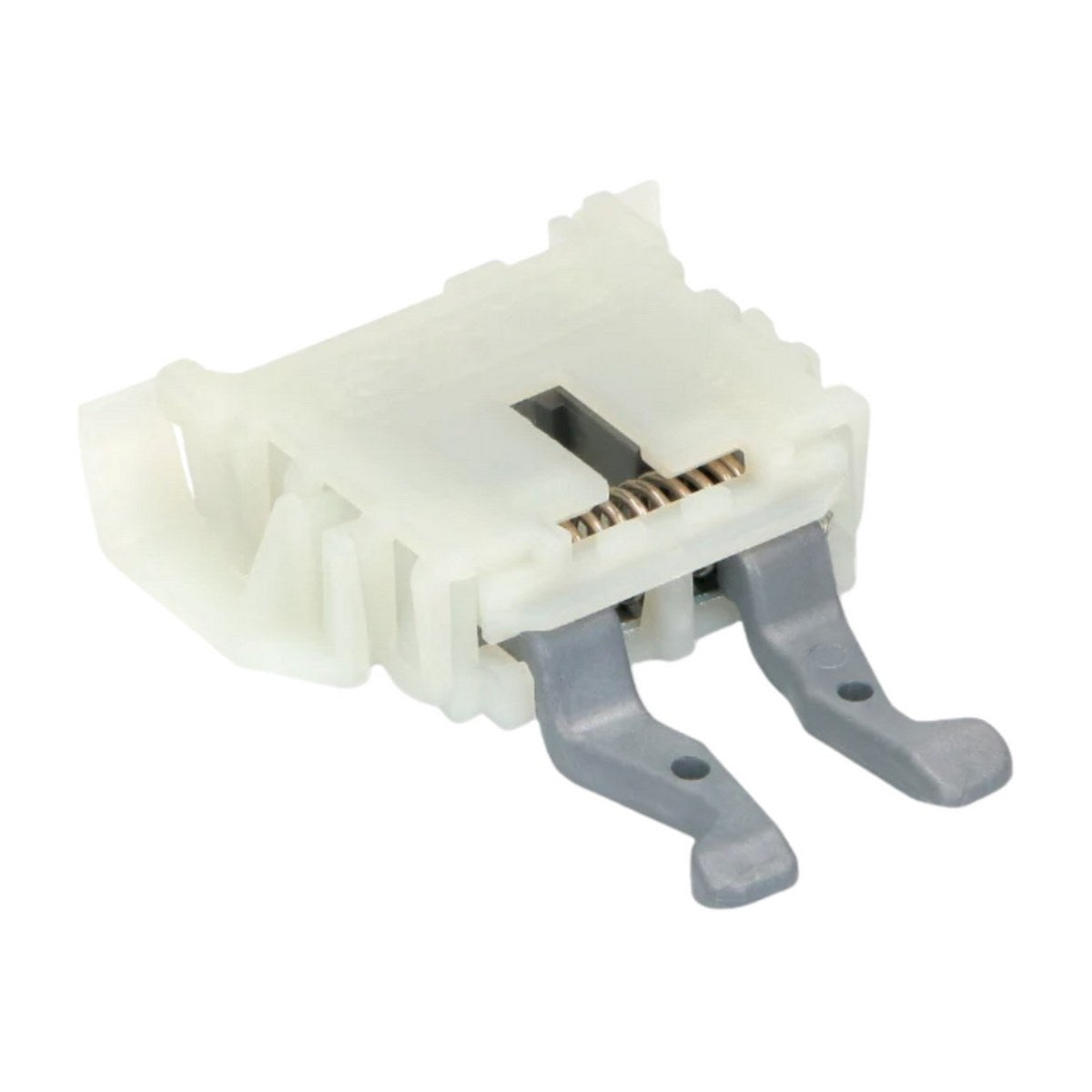

• Genuine Fisher & Paykel and Haier part H0120801601
• Door lock and hook assembly
• Suits Fisher & Paykel DW60FC, DW60CH, DW60CK and DW60U dishwashers
• Also listed for Haier HDW13G1, HDW14G2 and HDW15G3 models

Fitting the door lock

Switch the dishwasher off at the wall before you start. The lock is normally reached by removing the inner door panel or the top trim, depending on the model. Photograph the wiring on the old lock, transfer the connections to the new one, and make sure the hook lines up with the latch opening. Close the door gently a few times to check it catches cleanly before running a wash.

Questions about this part

Does H0120801601 fit Haier dishwashers?

Yes. As well as the Fisher & Paykel DW60 range, it is listed for Haier HDW13G1, HDW14G2 and HDW15G3 models, in both the W and X versions. Match the model number printed on the door edge label to be sure.
