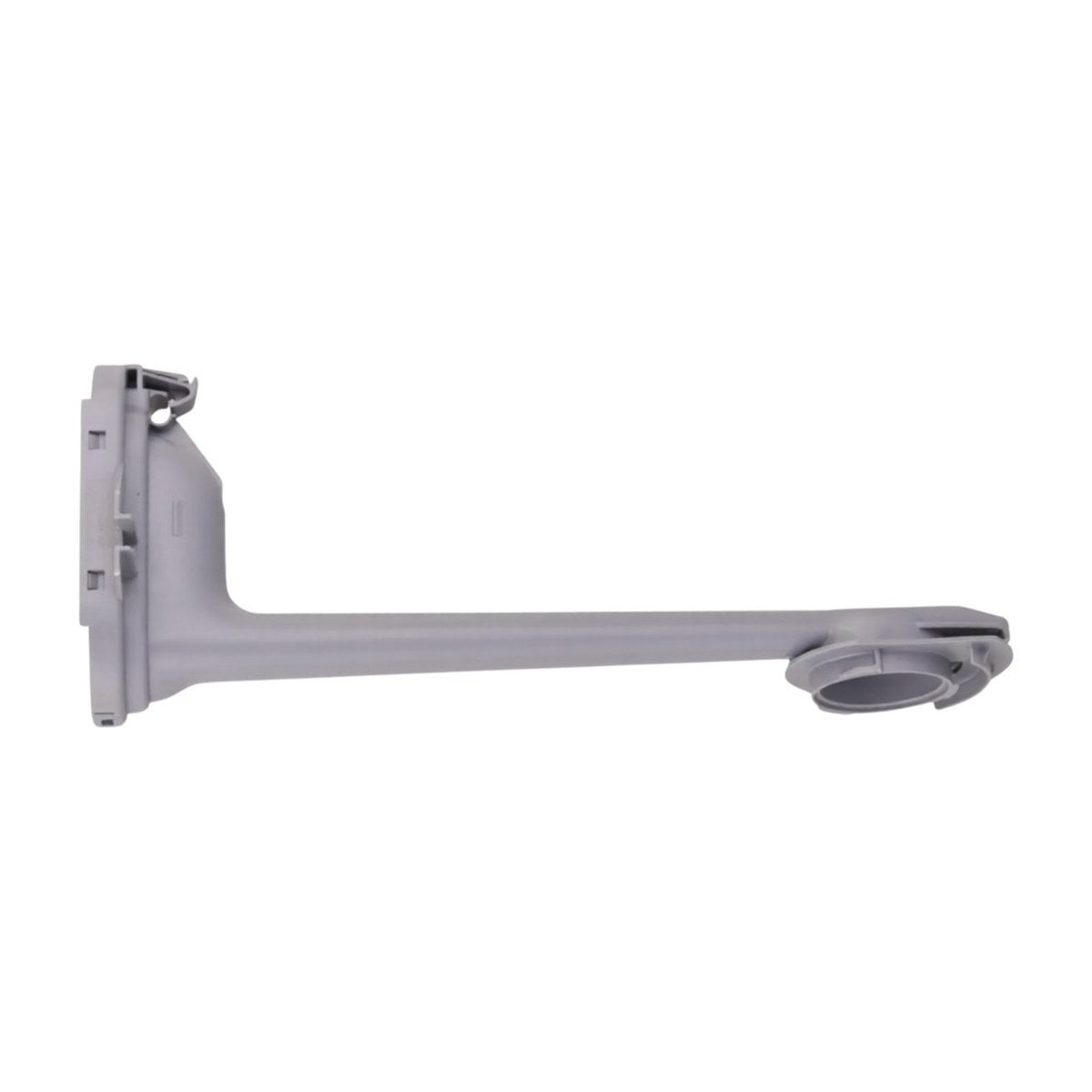

H0120801584C Genuine Middle Spray Arm Valve Housing and Hose Cover Kit for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60U2I1

This genuine kit, part H0120801584C, covers the valve housing and hose cover that feed the middle spray arm on certain Fisher & Paykel dishwashers. It is listed for the DW60FC4X1 and the DW60U2I1, and the reference data links it to Haier machines as well. Order it when the housing has cracked, a clip has broken or the cover over the feed hose is damaged.

Middle spray arm not turning or upper rack dishes still dirty?

The middle spray arm sits under the upper basket and gets its water through a feed path from the wash pump. The valve housing and hose cover are part of that path, guiding water to the arm and keeping the connection sealed and in place. If the housing cracks, the cover breaks or a clip lets go, water escapes before it reaches the arm. The middle arm then turns slowly or not at all, and dishes in the upper basket come out with food still on them. You may also hear more splashing than usual during the wash.

Part details

• Genuine part H0120801584C
• Kit with valve housing and hose cover for the middle spray arm feed
• Listed for DW60FC4X1 and DW60U2I1 dishwashers
• Reference data also links it to Haier

Fitting the housing kit

Switch off at the wall and turn off the water tap before starting. Remove the upper basket to see the middle arm feed clearly, and take photos of how the old housing, hose and cover are clipped in. Fit the new parts in the same order, making sure every clip clicks home and the hose isn't kinked. Refit the basket, check the arm spins by hand, then run a short program.

Questions about this part

How do I know the housing is the problem and not the spray arm?

Spin the middle arm by hand and check its holes for blockages. If the arm turns freely and is clear, yet still barely moves during a wash, look for cracks, leaks or loose clips around the housing and hose cover that let water escape.
