H0120800698F Genuine Lower Dishwasher Basket for Fisher & Paykel Dishwashers DW60CHX1 DW60CHW1 DW60CKX1 DW60CKW1 DW60FC1X1 DW60CHPX1

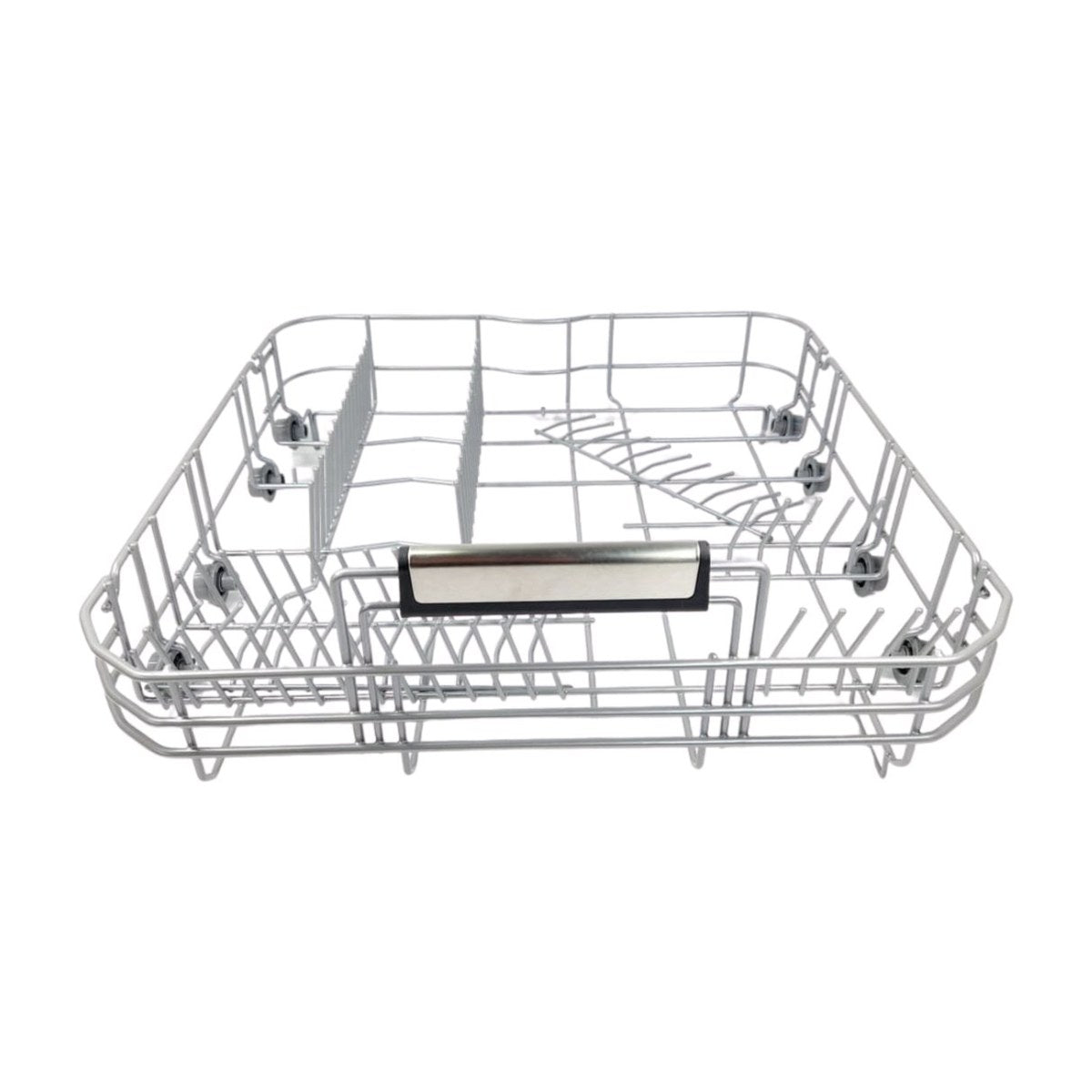

This genuine lower basket, part H0120800698F, is the bottom rack from Fisher & Paykel DW60 dishwashers, the one that carries plates, pots and larger items. It also appears under H0120800698C. Models on file are the DW60CHX1, DW60CHW1, DW60CHPX1 and DW60CHPW1, the DW60CKX1 and DW60CKW1, and the DW60FC1X1 and DW60FC1W1, eight in all.

When the lower dishwasher rack needs replacing

The lower basket rolls in and out on its wheels and holds dinner plates, pots and pans in the path of the bottom spray arm. Coated wire racks last a long time, but once the coating chips, the steel underneath starts to rust, leaving brown marks on dishes and flakes in the filter. Broken tines, a cracked frame, missing wheels or a basket that keeps derailing are other reasons to replace it. A rack that drags or sits crooked can also foul the spray arm, which leads to dishes coming out dirty.

Part details

• Genuine Fisher & Paykel lower basket H0120800698F
• Also referenced as H0120800698C
• Bottom rack for plates, pots and larger items
• For DW60CH, DW60CK and DW60FC1 dishwashers
• Eight models on file

Swapping the lower basket

No tools are normally needed. Pull the old basket fully out and lift it clear of the rails. Check the rails and the door for damage while it is out. Sit the new basket on the rails, roll it in and out a few times to make sure it moves freely, and check the lower spray arm still turns without touching anything.

Questions about this part

Is H0120800698C the same basket?

H0120800698C is linked to this part as an alternative number. If either number appears on your old basket or in your parts list, this is the one to order. Your model number is on the rating label, usually on the side edge of the door.
