H0120800697F Genuine Dishwasher Upper Basket for Fisher & Paykel Dishwashers DW60FC1W1 DW60FC1X1 DW60CHW1 DW60CHX1 DW60CHPW1 DW60CHPX1

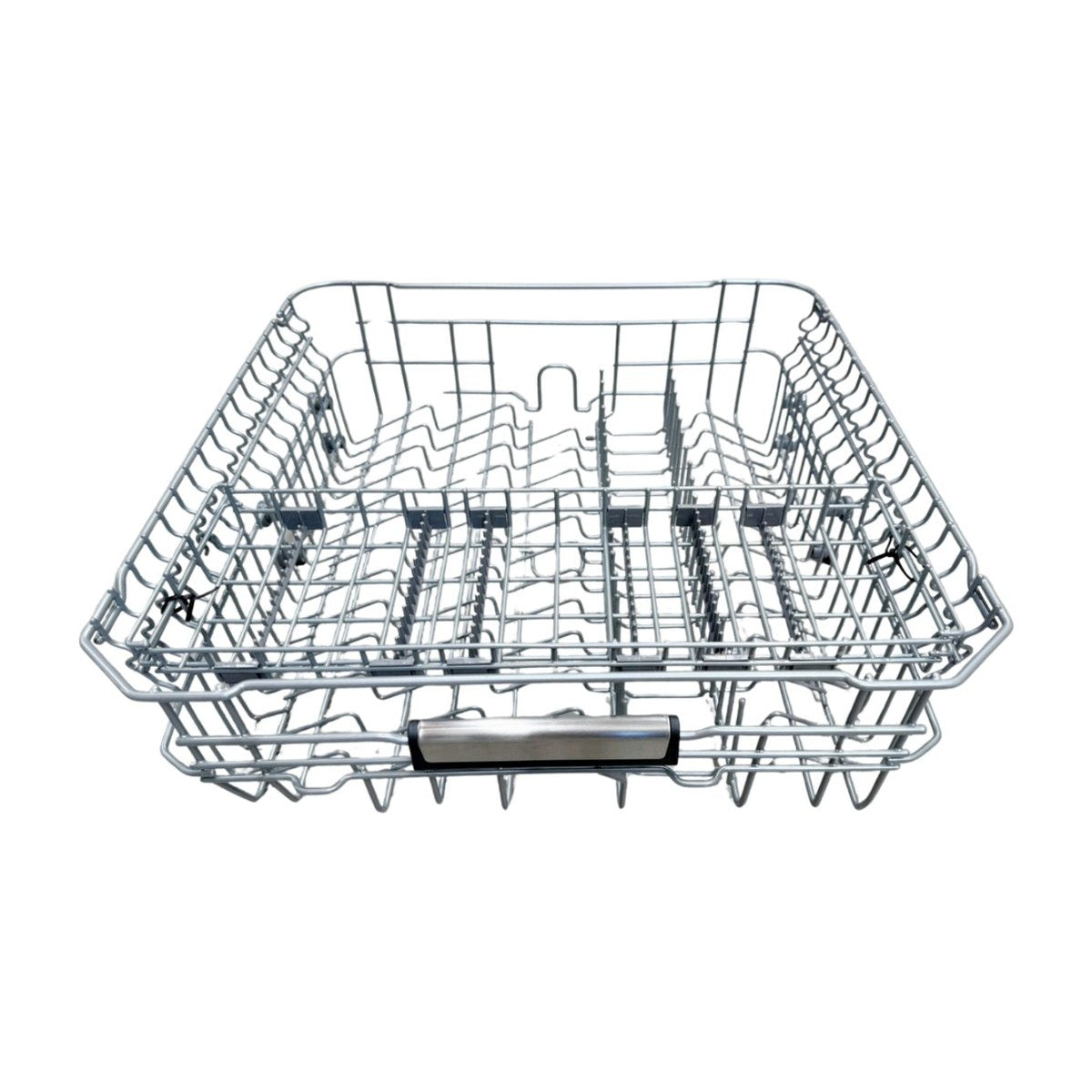

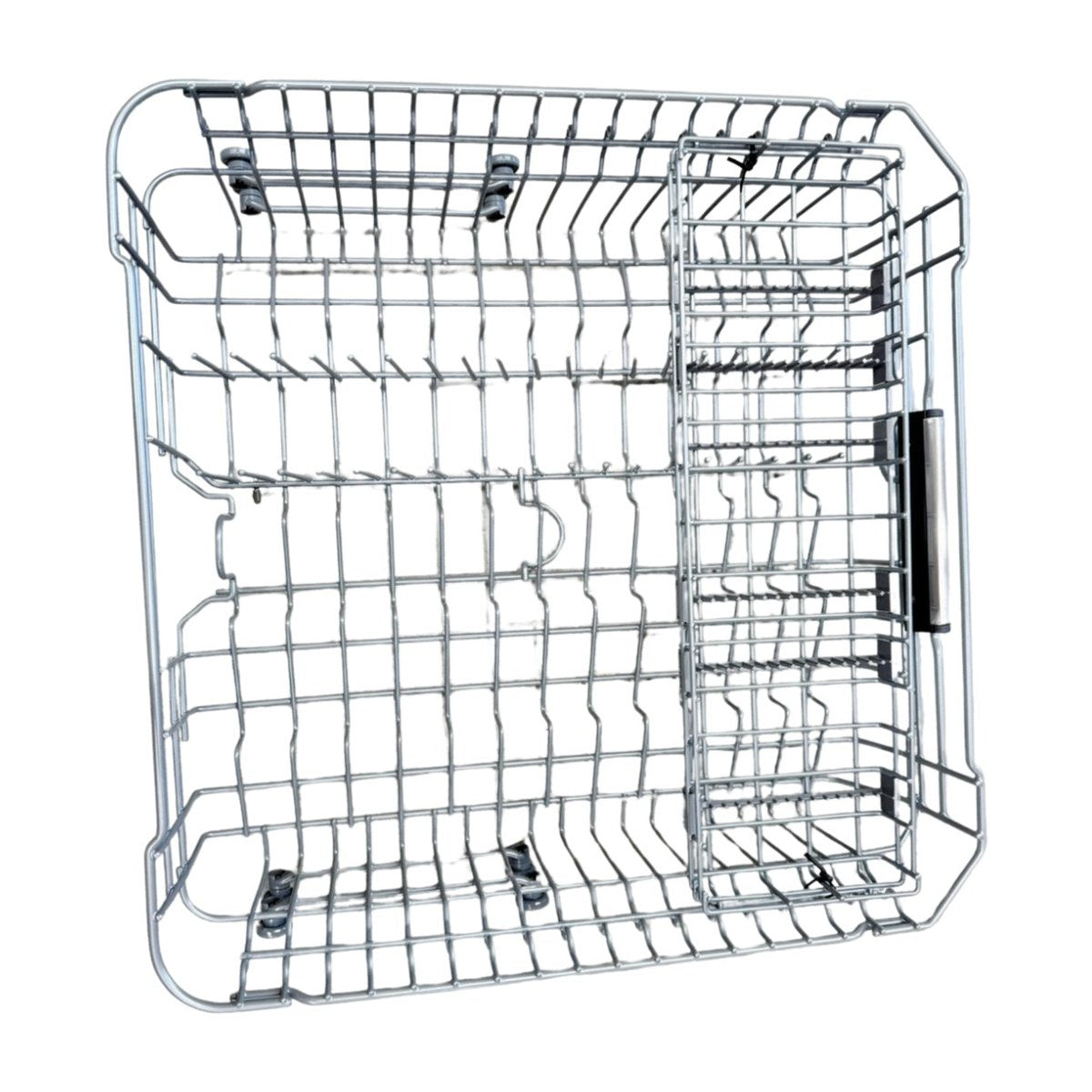

Fisher & Paykel's genuine upper basket, part H0120800697F, is the top rack that carries cups, glasses and small bowls in the DW60FC1 and DW60CH dishwasher families. Listed models are the DW60FC1W1 and DW60FC1X1, the DW60CHW1 and DW60CHX1, and the DW60CHPW1 and DW60CHPX1. Order H0120800697F when the old top rack is cracked, rusting or sitting crooked on its rails.

When a dishwasher top rack needs replacing

The upper basket holds the lighter part of the load and rolls in and out on runners along the tub walls. Years of hot water, detergent and loading knocks take their toll. If the coating on the tines chips, rust can stain glasses and creep through the frame. Tines snap off, the frame warps, and a damaged basket can sit unevenly so it catches on the spray arm or the door. When cups keep tipping over or come out with brown marks, a new rack is usually a cleaner fix than patching the old one.

Part details

• Genuine Fisher & Paykel part number H0120800697F
• Upper basket, also called the top rack
• Listed for DW60FC1W1 and DW60FC1X1
• Listed for DW60CHW1, DW60CHX1, DW60CHPW1 and DW60CHPX1

Swapping the upper basket

Empty the rack and pull it fully out on its runners. On most models the basket is held by stops or caps at the front end of each runner, which unclip so the basket slides forward and off. Before fitting the new one, check the runners and wheels for wear, because a sticky runner will make a new rack drag too. Slide it on, refit the stops and run it in and out a few times.

Questions about this part

Will this rack fit my DW60CHX1?

Yes, the DW60CHX1 is one of the six models listed for H0120800697F. Check the model number on the label around the door opening or tub edge first, to make sure it matches exactly before you order.
