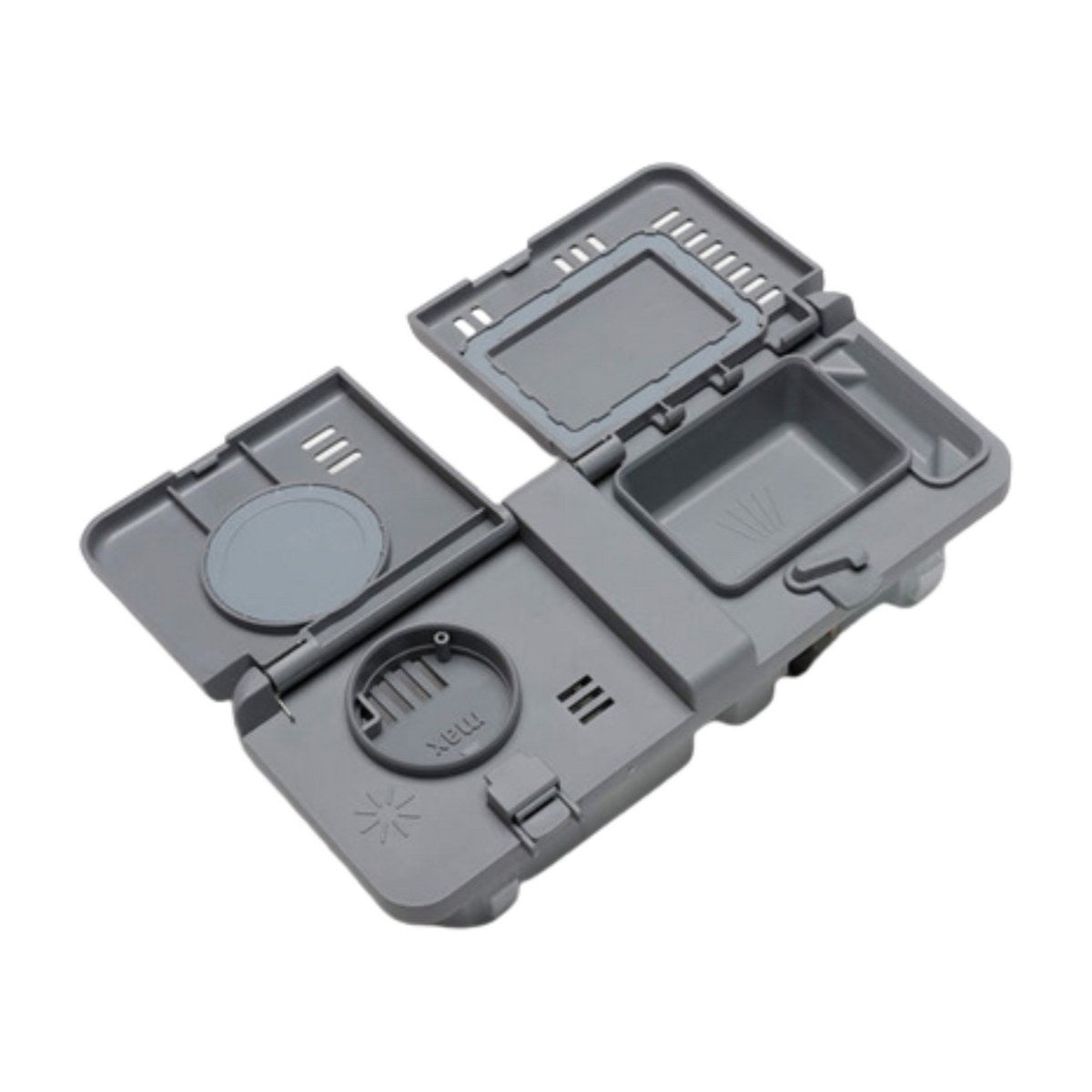

H0120400080 Genuine Detergent Dispenser for Fisher & Paykel Dishwashers DW60FC6X1 DW60FC4X1 DW60FC2X1 DW60CHX1 DW60CKX1 DW60U6I1 DW60FEX1

When the detergent flap won't latch or the tablet is still sitting there at the end of a wash, the dispenser is usually the culprit. H0120400080 is the genuine Fisher & Paykel detergent dispenser for 17 DW60 models, among them the DW60CHW1, DW60CHPX1 and DW60CKX1, the DW60FC1W1 through to the DW60FC6X1, the DW60FEX1, and the DW60U2I1 and DW60U6I1.

Dishwasher not releasing detergent

The detergent dispenser sits on the inside of the door. You load it before starting, close the lid, and partway through the cycle the controls trigger it to spring open so the detergent drops into the wash water. If the catch wears, the spring fails, the lid hinge cracks or the release mechanism stops working, the lid stays shut or won't stay closed. That leads to tablets that don't dissolve, powder left caked in the cup, a film on glasses and dishes that come out dirty.

Part details

• Genuine Fisher & Paykel part H0120400080
• Door mounted detergent dispenser
• Listed for 17 DW60 dishwasher models
• Covers DW60CH, DW60CK, DW60FC, DW60FE and DW60U models

Fitting the dispenser

Switch the dishwasher off at the wall. The dispenser is reached by removing the screws around the inner door panel and separating the inner and outer door. Photograph the wiring connectors before unplugging them. Fit the new dispenser with any seal seated evenly, reassemble the door without pinching wires, and run a cycle to see the lid open on time.

Questions about this part

Is it the dispenser or my detergent?

Check the lid first. If it doesn't latch, or stays shut at the end of a cycle, the dispenser is at fault. If it opens but tablets still don't dissolve, look at water temperature, a blocked spray arm, or a tall plate or tray stopping the lid from opening fully.
