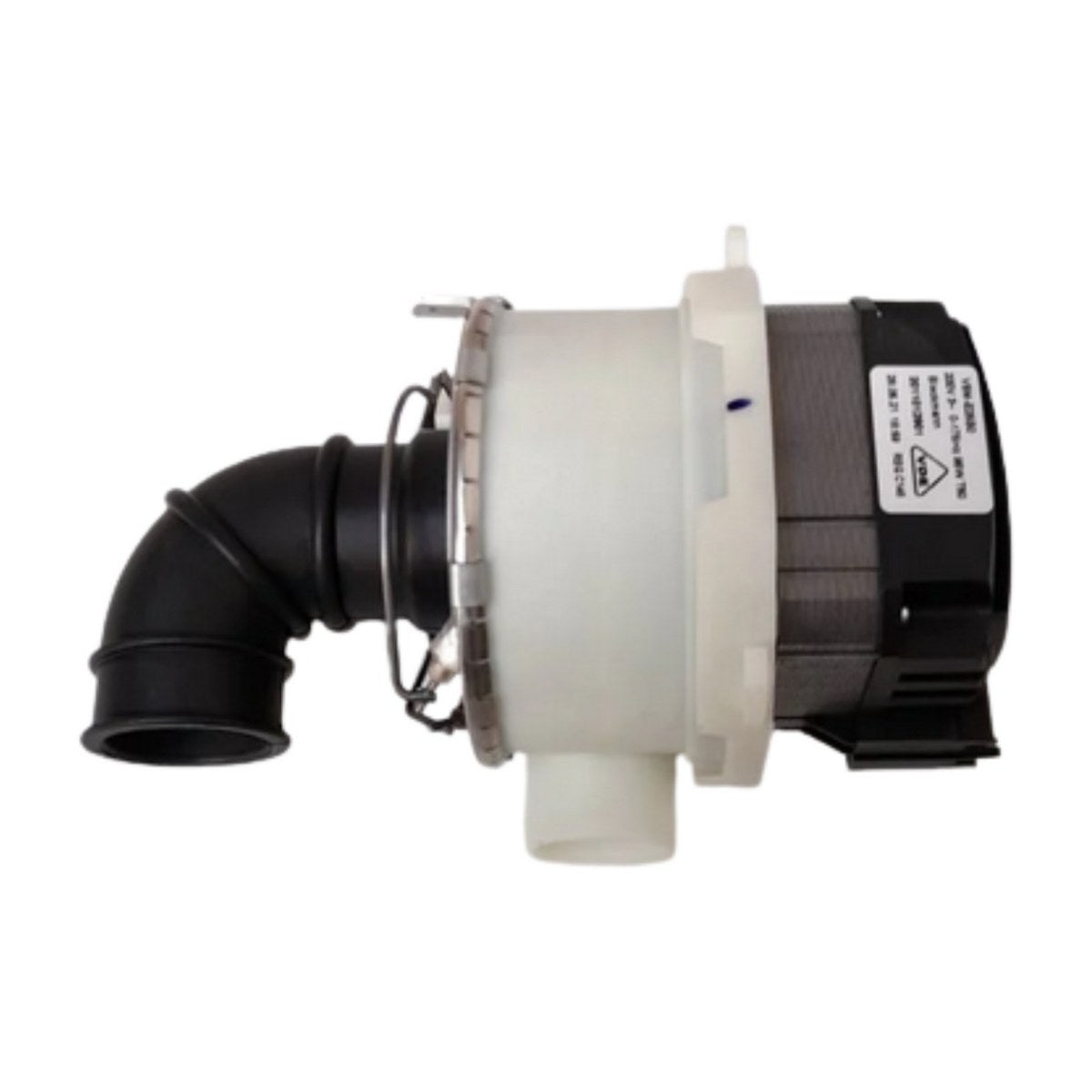

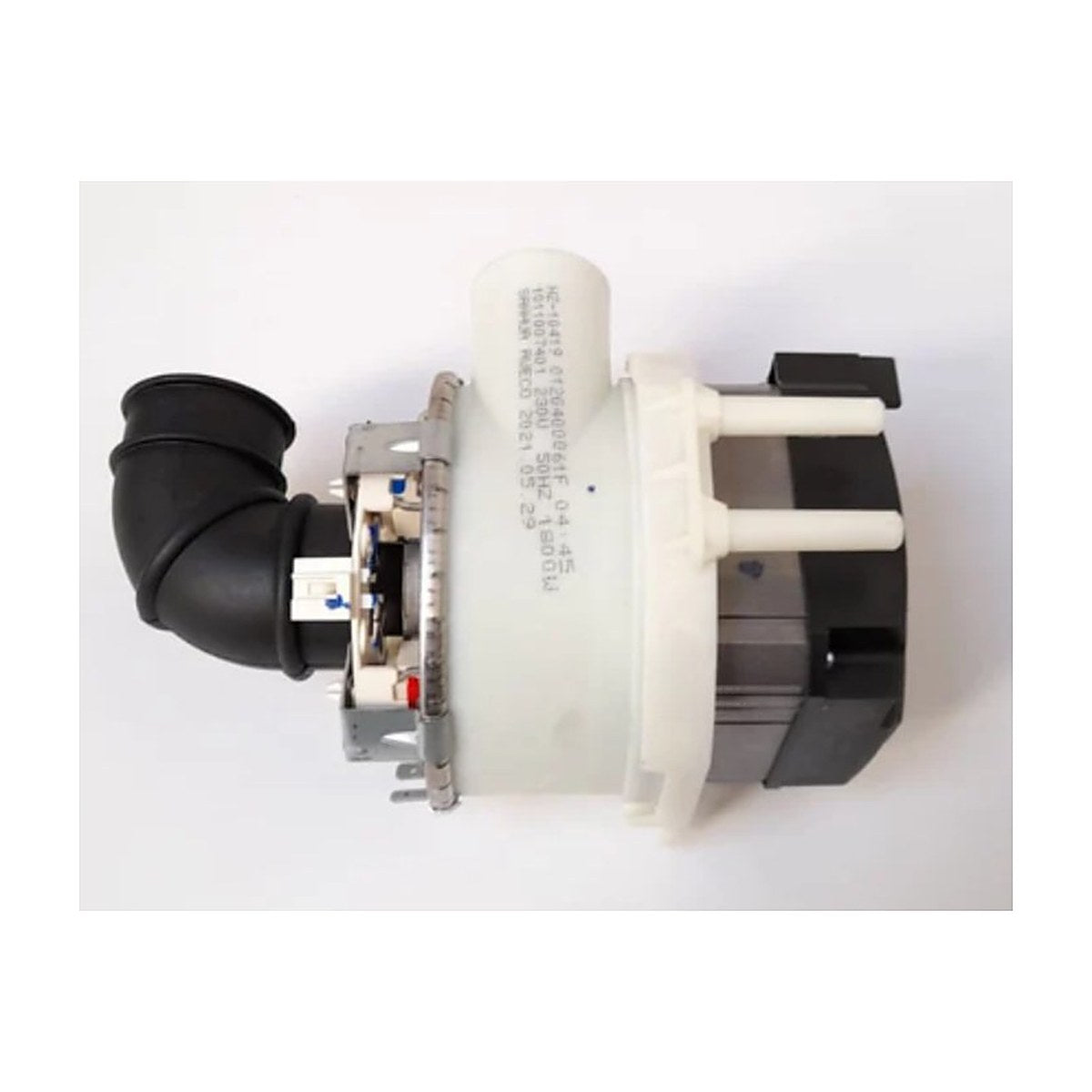

H0120400061FA Genuine Wash Pump with Heater for Fisher & Paykel Dishwashers DW60FC6X1 DW60FC6W1 DW60CKX1 DW60CKW1 DW60UC6X DW60UD6X1

H0120400061FA is the genuine Fisher & Paykel wash pump with an integrated heater, often called a heat pump, for a group of 60cm F&P dishwashers. The numbers H0120400061A, H0120400061B and H0120400061F are linked to it as well. Models on file include the DW60FC6X1 and DW60FC6W1, the DW60CKX1 and DW60CKW1, DW60U6I1, DW60UC6X and DW60UC6B, and DW60UD6X1 and DW60UD6B1.

Fisher & Paykel dishwasher not heating or not washing

This pump does two jobs. It drives water up through the spray arms under pressure, and the heater built into its housing warms that water as it circulates. That's why a failed heat pump can show up in two ways. If the motor side fails, the dishwasher fills and drains but you won't hear the wash running, and dishes stay dirty. If the heater side fails, the wash runs but the water stays cold, dishes come out greasy and the cycle may stall or show a heating fault. A leak from the pump body can be another sign.

Part details

• Genuine Fisher & Paykel part H0120400061FA
• Wash pump with built-in heater
• Linked numbers H0120400061A, H0120400061B and H0120400061F
• Listed for DW60FC, DW60CK, DW60UC, DW60UD and DW60UZ6B models on file

Fitting the heat pump

Unplug the dishwasher, turn off the tap and remove the kickboard. Soak up any water left in the sump. On many models the base is reached by sliding the machine out and laying it on its back on a blanket. Photograph the wiring and hoses before you disconnect them. Fit the new pump with fresh clamps if the old ones are tired, then run a short cycle and check for leaks.

Questions about this part

My old pump says H0120400061A, is this the right one?

H0120400061A, H0120400061B and H0120400061F are all listed against this part, so H0120400061FA is the one to order for the models on this page. Confirm your dishwasher model on the label on the edge of the door first.
