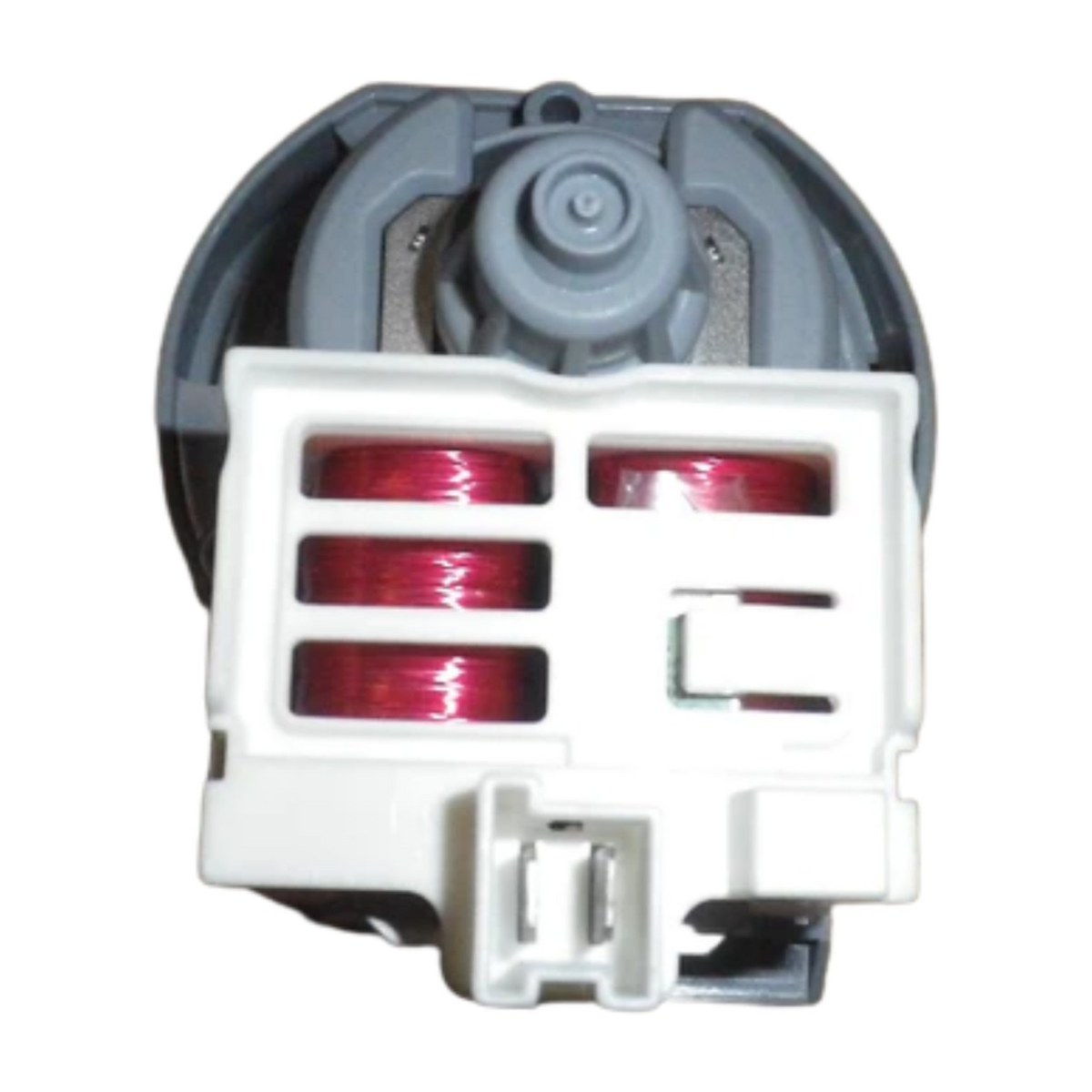

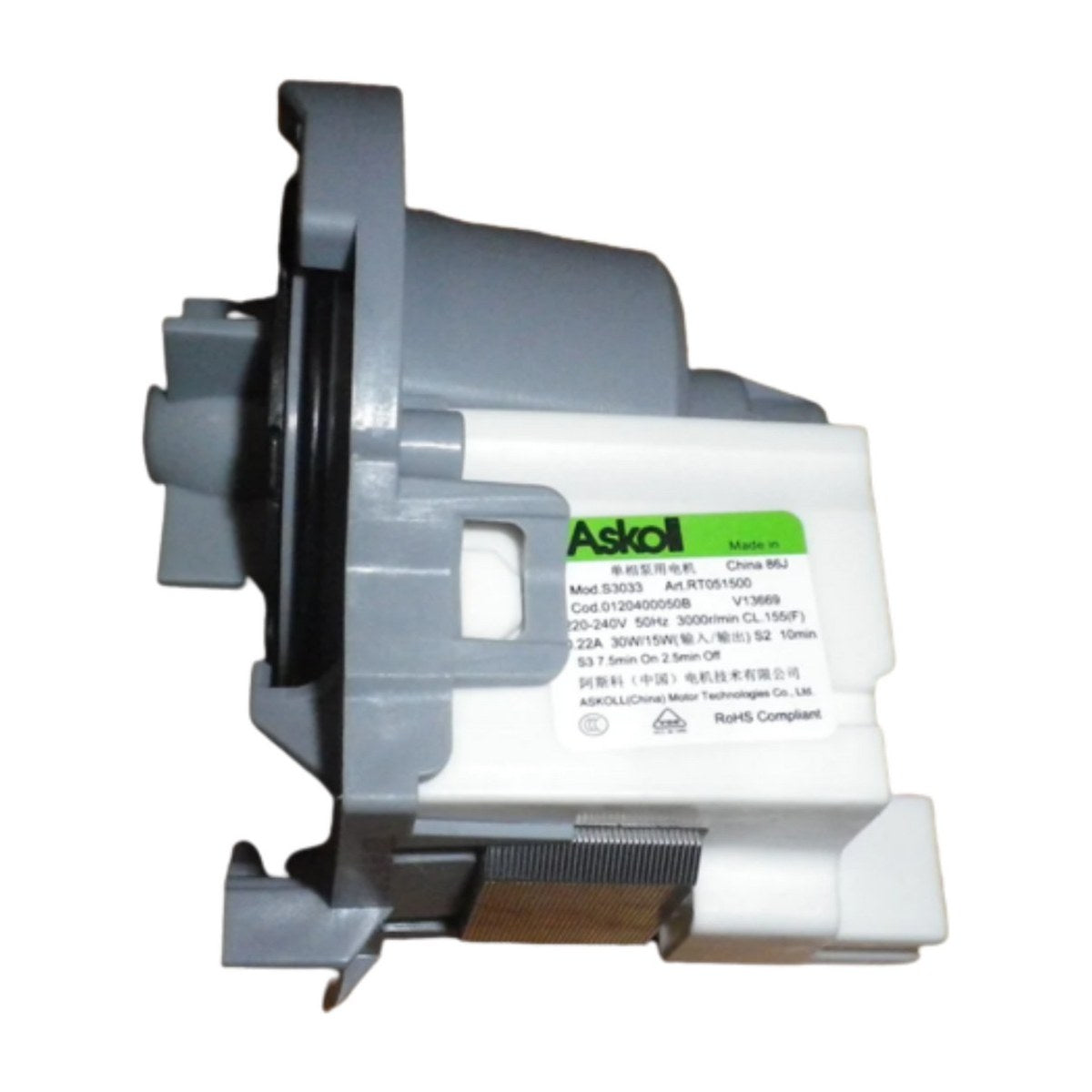

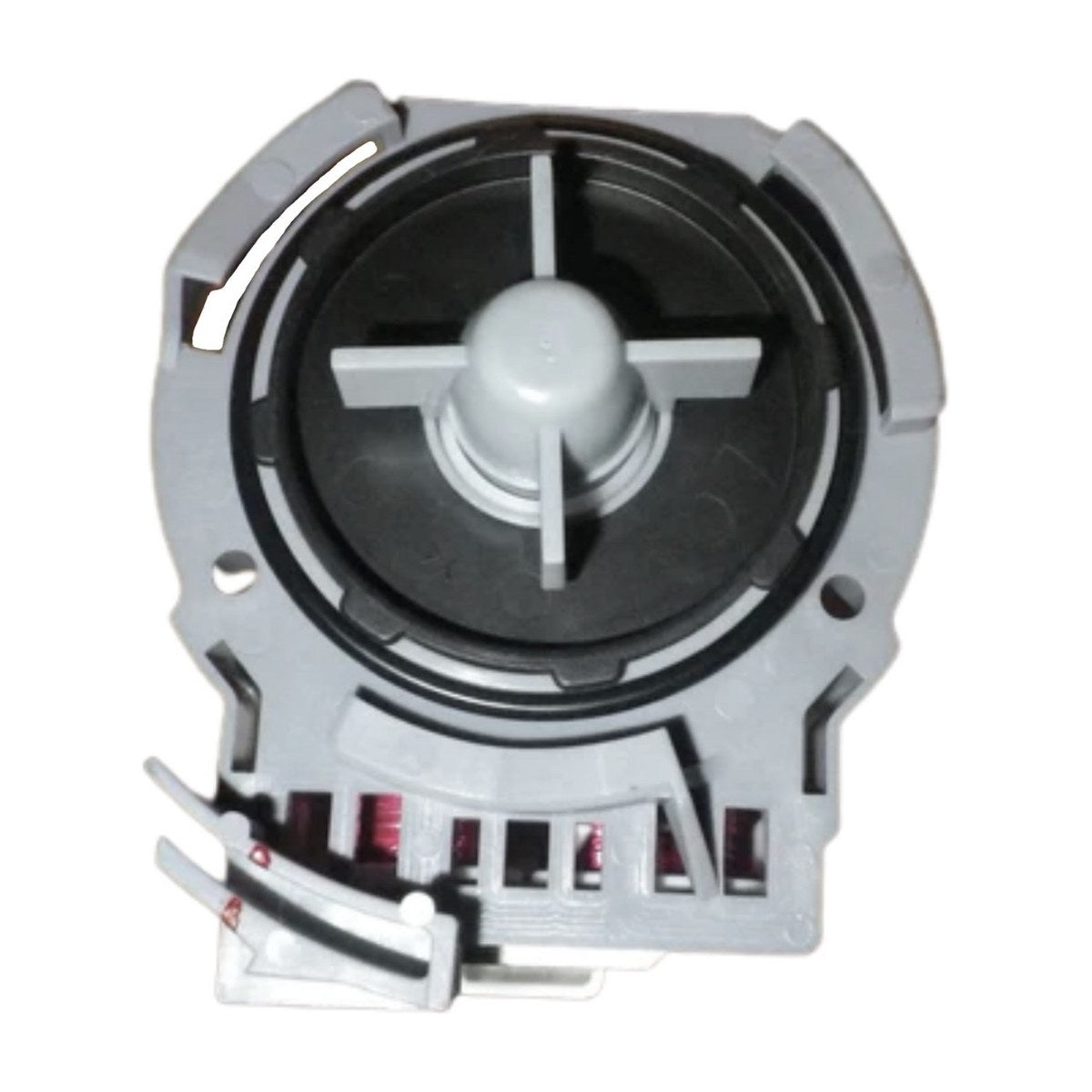

H0120400050B Genuine Dishwasher Drain Pump for Fisher & Paykel, Haier Dishwashers DW60CHX1 DW60CHPX1 DW60CKW1 DW60CKX1 DW60FC4X1 HDW15G3X

Water sitting in the bottom of the dishwasher after a cycle often comes down to the drain pump, and H0120400050B is the genuine one for a group of Fisher & Paykel and Haier dishwashers. It's listed for the F&P DW60CHX1 and DW60CHPX1, the DW60CKW1 and DW60CKX1, and both versions of the DW60FC4. On the Haier side it covers the HDW15G3W and HDW15G3X.

Fisher & Paykel dishwasher not draining

At the end of each wash and rinse, the drain pump pushes the dirty water out through the drain hose to the sink waste. A pump with a seized or broken impeller, a burnt out winding or a worn bearing will hum, buzz, grind or do nothing at all. The usual result is standing water in the base, a drain fault on the display, or dishes left wet and dirty because the cycle stopped part way. Before replacing the pump, clean the filter, check the drain hose isn't kinked and look for anything jammed in the pump inlet.

Part details

• Genuine part H0120400050B
• Dishwasher drain pump
• Suits Fisher & Paykel DW60CH, DW60CK and DW60FC4 models
• Suits Haier HDW15G3W and HDW15G3X

Changing the drain pump

Turn off the power at the wall and the water at the tap. Bail or sponge out any water in the base, and lay towels down because more will come out when the pump is removed. Access is usually from underneath once the dishwasher is out of the cavity. Photograph the wiring, swap the pump over and check its seal is seated before refitting. Run a short program to test it drains.

Questions about this part

Could something other than the pump stop it draining?

Yes. A blocked filter, a kinked or blocked drain hose, a sink waste spigot that hasn't been opened, or debris stuck in the pump inlet all cause the same symptom. Check those first, as they're quicker to fix.
