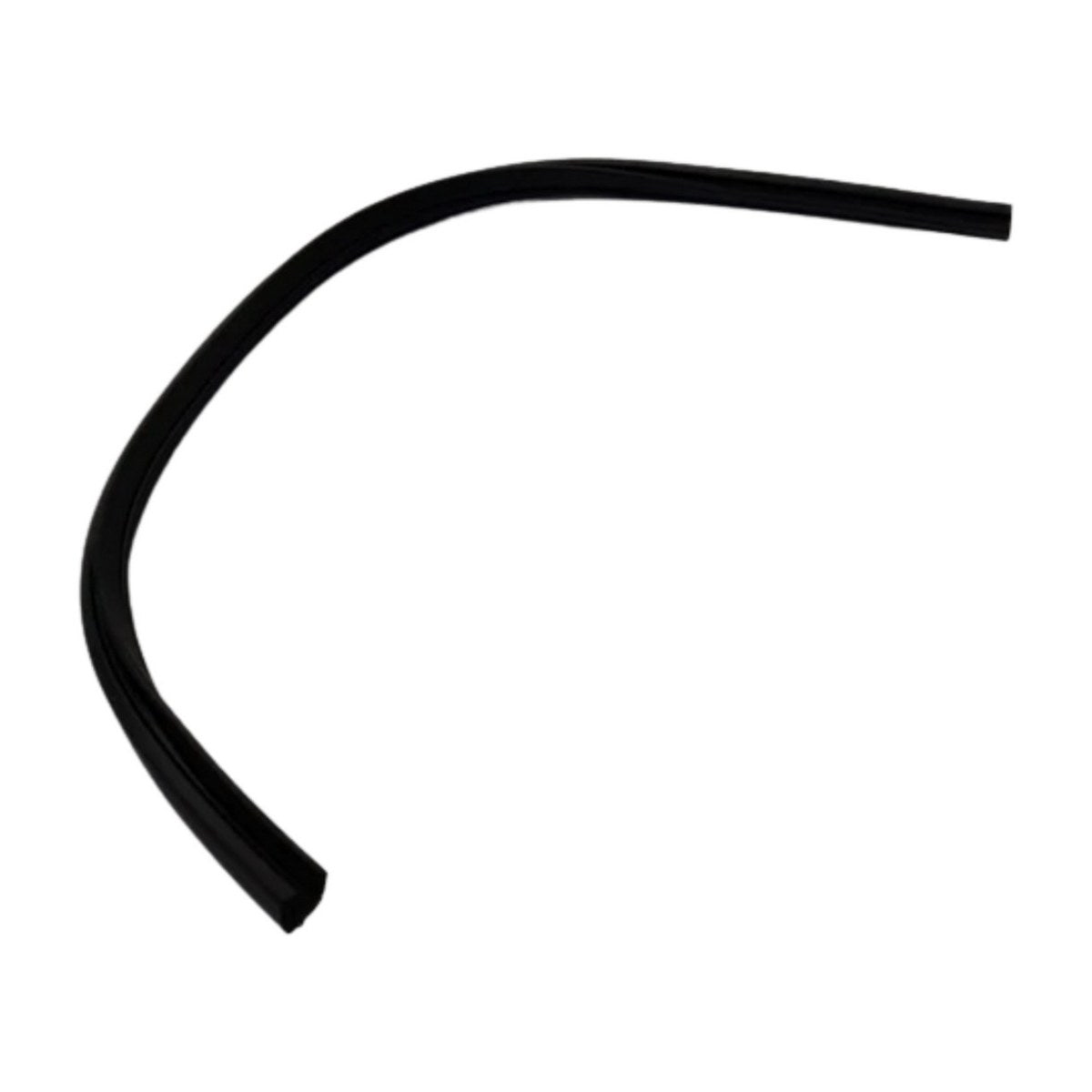

H0120300368 Genuine Inner Door Seal for Fisher & Paykel, Haier Dishwashers DW60FC2X1 DW60FC6X1 DW60UC6X DW60UD6X1 HDW13V1S1 HDW10F1S1

H0120300368 is the genuine inner door gasket for Fisher & Paykel and Haier dishwashers. Sixteen models are listed, covering Fisher & Paykel DW60FC machines such as the DW60FC2X1 and DW60FC6X1, DW60U models including the DW60UC6X and DW60UD6X1, and the Haier HDW13V1S1 and HDW10F1S1. Fitting a fresh seal is often all it takes to stop water escaping around the door.

Fisher & Paykel dishwasher leaking from the door?

The inner door seal closes the gap between the door and the tub while water is sprayed around inside. Heat, detergent and grease slowly harden the rubber until it shrinks, splits or flattens, and food scraps caught along it can hold it open. The result is water seeping out under the door, puddles on the floor or kickboard, steam escaping during drying and, on models with a flood sensor, a leak error if water reaches the base. A seal that looks cracked, misshapen or partly out of its channel is due for replacement.

Part details

• Genuine part H0120300368
• Inner door gasket for dishwashers
• Listed for 16 Fisher & Paykel and Haier models
• Covers DW60FC, DW60U and HDW series machines

Fitting the inner door seal

Switch the dishwasher off at the wall and turn off the tap. Note where the old seal starts and finishes, then pull it out of its channel and clean the channel thoroughly. Press the new seal in from the same starting point, working around without stretching it so it sits evenly with no twists. Close the door to check it shuts without extra force, then run a rinse program and look for leaks.

Questions about this part

Is this the same as the bottom door seal?

No. This is the inner door gasket. Many dishwashers use a separate seal or strip along the bottom of the door, so check where your leak is coming from and compare the shape of your old seal before ordering.
