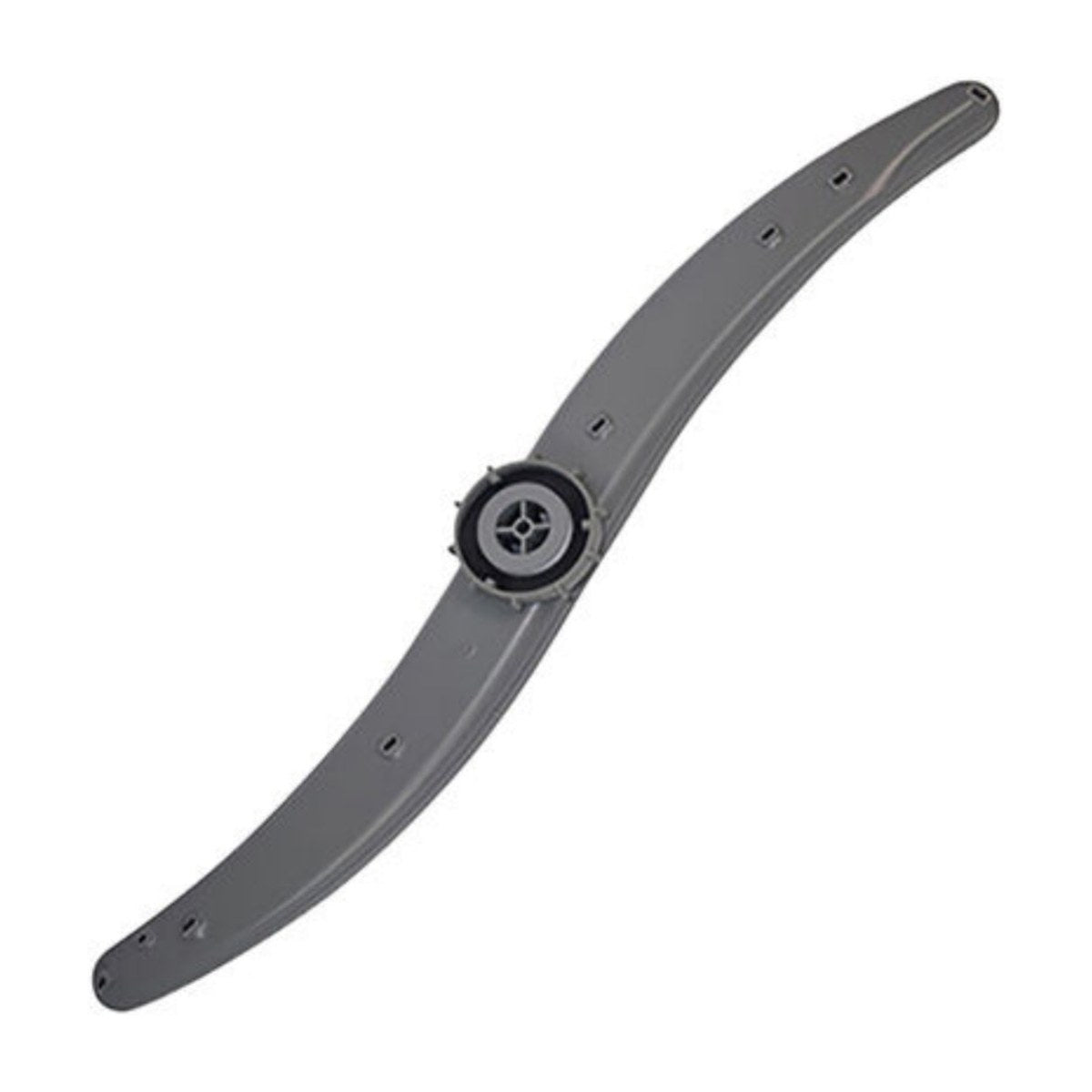

H0120202776 Genuine Dishwasher Upper Spray Arm for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60FC6X1 DW60CKX1 DW60UC6X HDW13V1S1 HDW14G2X

H0120202776 is the genuine second sprayer for Fisher & Paykel and Haier dishwashers, the part most people call the upper spray arm. It mounts under the upper basket and washes the top rack. There are 49 models on file, covering much of the F&P DW60 range such as the DW60CCX1 and DW60FC4X1, along with Haier HDW12, HDW13, HDW14 and HDW15 models like the HDW13V1S1.

Top rack not cleaning properly

Water is pumped up to the spray arm, and the angled jets make it spin as they wash the dishes above. If the arm cracks, warps, loses an end cap or has its jets packed with food and scale, it may stop spinning or spray unevenly. The tell-tale sign is the top rack coming out dirty or gritty while the bottom rack is clean. You might also hear the arm knocking against dishes or the basket. Clear blocked holes with a toothpick first, and replace the arm if it's damaged or still won't turn freely.

Part details

• Genuine part H0120202776
• Upper (second) spray arm assembly
• Suits Fisher & Paykel DW60 series dishwashers
• Suits Haier HDW12, HDW13, HDW14 and HDW15 models

Fitting the upper spray arm

Switch the dishwasher off and pull out the upper basket. The arm attaches beneath it, typically held by a screw-on or twist-lock hub. Note how the old arm comes off, fit the new one the same way and spin it by hand to make sure nothing catches. Before running a wash, check that tall items in the lower rack won't block it.

Questions about this part

Will this fit my DW60 dishwasher?

It's listed for many DW60 models, including the DW60CCX1 and the DW60UD6X1. Check the model plate on the edge of the door or the side of the tub and match it to the full list before ordering.
