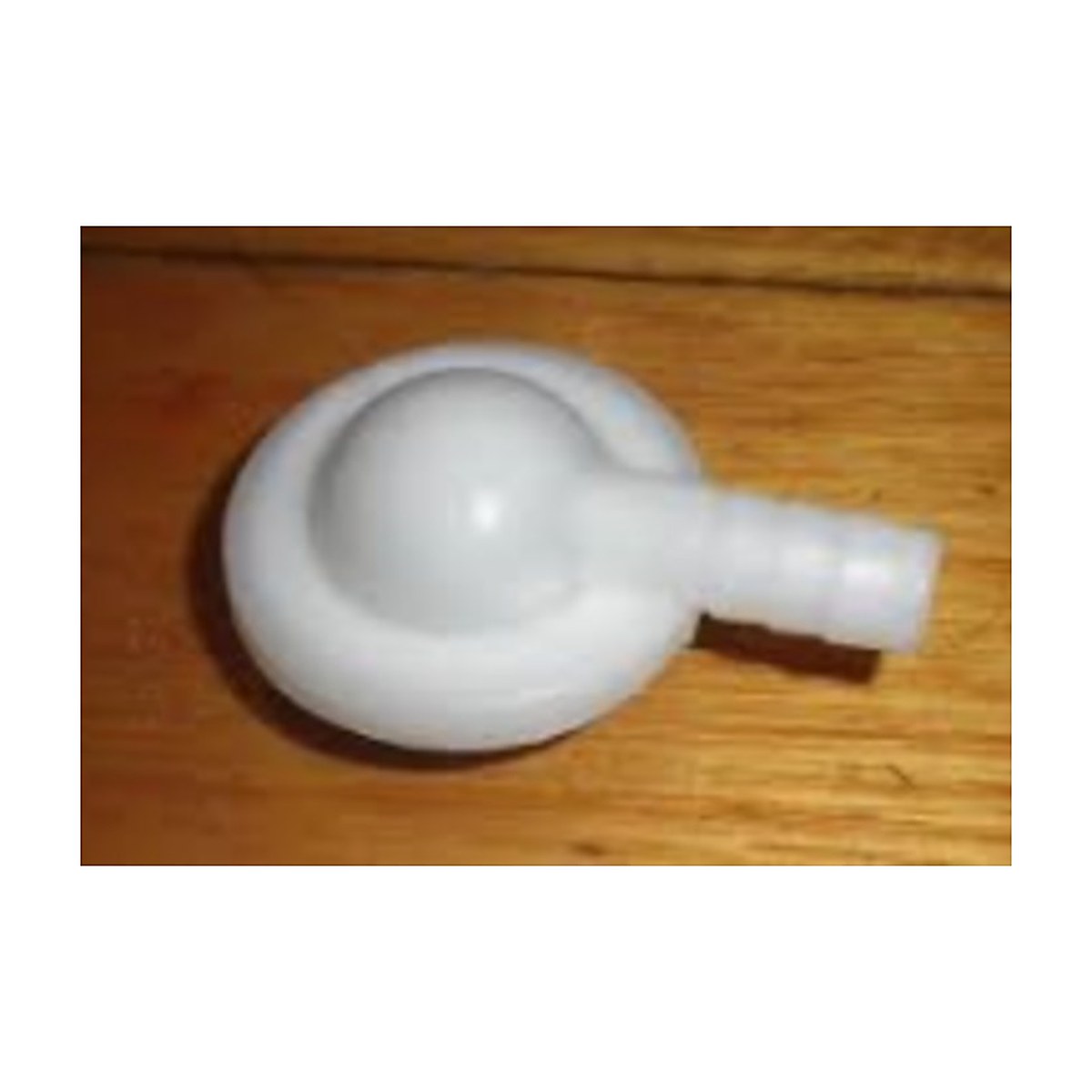

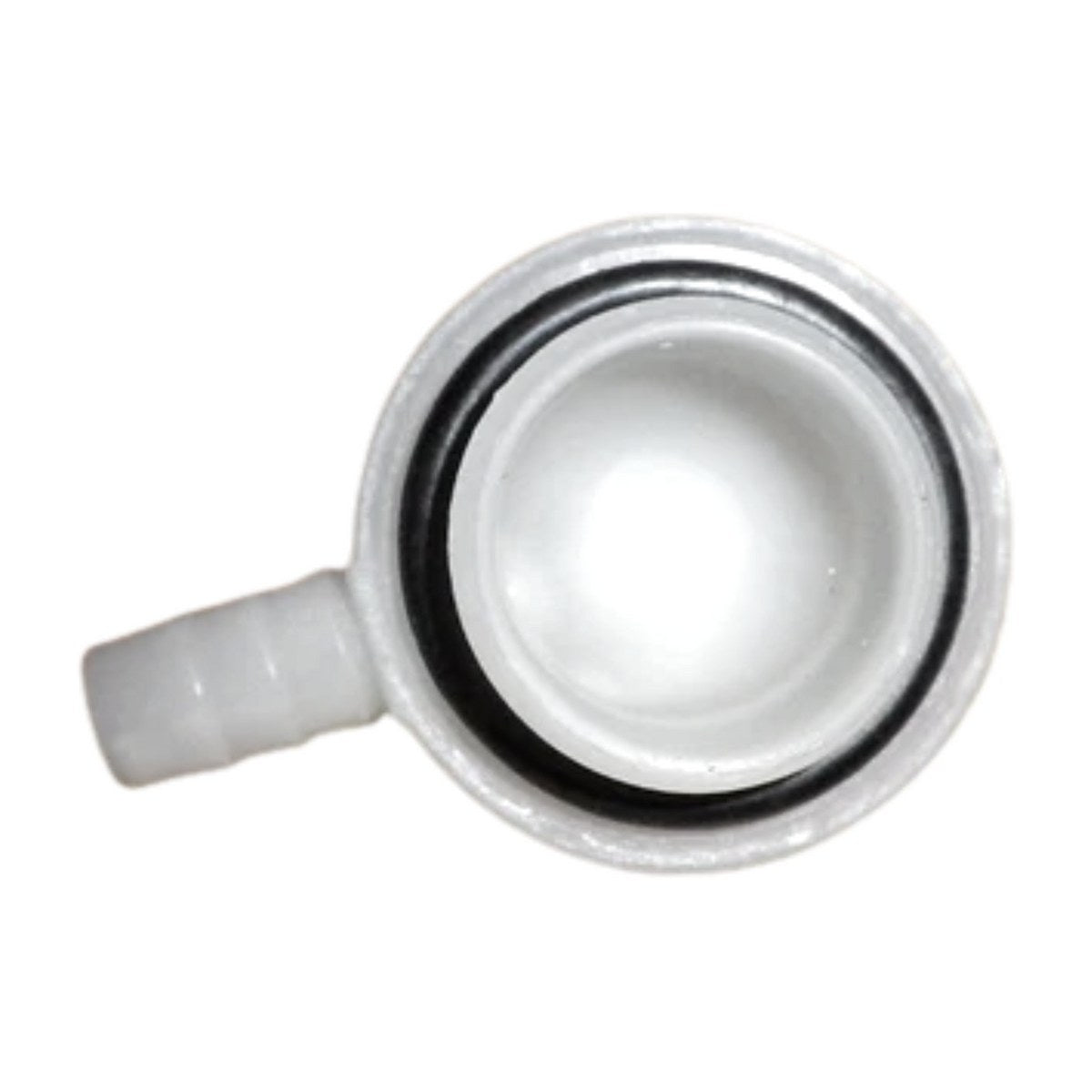

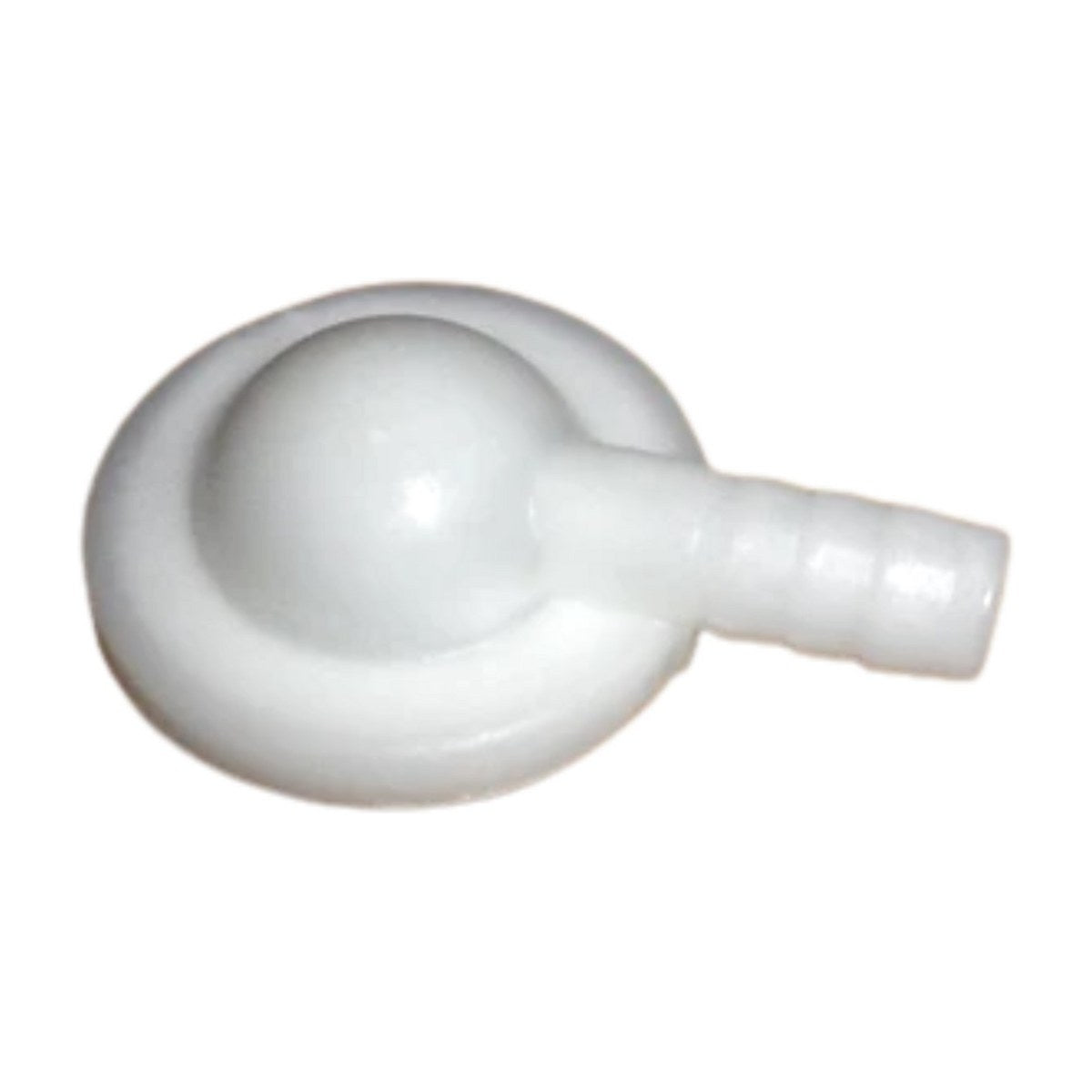

H0120202701 Genuine Upper Spray Arm Base for Fisher & Paykel, Haier Dishwashers DW60CEX1 DW60CEW1 DW60CDW2 DW60CHPX1 HDW14G2X HDW12-SFE3SS
- Original part no.
- H0120202701
- Part grade
- Genuine
- Appliance
- Dishwasher Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Fisher & Paykel and Haier share this genuine upper sprayer base, part H0120202701. It is listed for the DW60CDW2 and DW60CEW1, the DW60CEX1 and DW60CHPX1, and the Haier HDW12-SFE3 and HDW14G2 models. It is the hub that connects the upper spray arm to its water supply. The base is supplied without a ring, so keep the existing one if your machine uses it.
Top rack dishes not getting clean? Check the upper sprayer base
Water pumped up the supply tube reaches the upper spray arm through this base, which also locates the arm so it can spin freely under the top basket. If the base cracks, warps or loses its fit, water leaks out before it reaches the arm, and the arm may stall or wobble. The result is dirty or gritty dishes on the top rack, food film left on glasses and sometimes a rattling or knocking sound during the wash. A cracked base can also let the arm drop off when the basket is pulled out.
Part details
- Genuine Fisher & Paykel and Haier part H0120202701
- Upper spray arm base
- Supplied without ring
- Listed for DW60CDW2, DW60CEW1, DW60CEX1 and DW60CHPX1
- Also listed for Haier HDW12-SFE3 models (WH and SS) and HDW14G2 models (X and W)
| Ring | Not included |
|---|
Fitting the sprayer base
Switch the dishwasher off at the wall and pull out the top basket. Unclip or unscrew the upper spray arm, then remove the old base, noting how it locks to the basket or supply tube. Move the ring across from the old base if your machine has one. Fit the new base, refit the arm and spin it by hand to check it turns freely before running a wash.
Questions about this part
Does this come with the ring?
No, this base is supplied without a ring. If your old base has a ring fitted and it is in good condition, transfer it across. If it is damaged, ask about a replacement ring through the parts enquiry form.
Specifications
| Brand | Fisher & Paykel |
|---|---|
| Original part number | H0120202701 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | H0120202701 |
| Appliance | Dishwasher Parts |
| Shipping weight | 0.15 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
