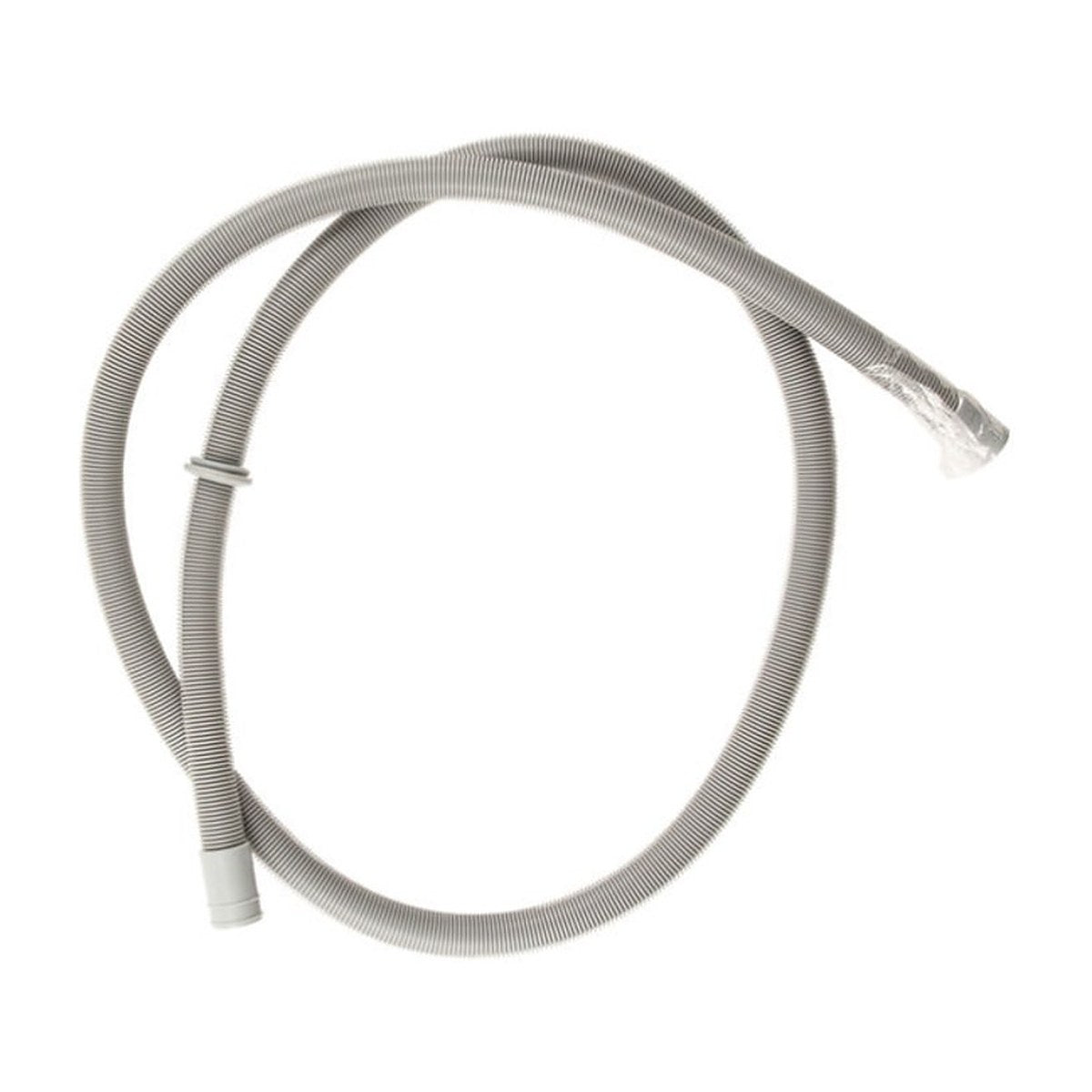

H0120200643 Genuine Long Dishwasher Drain Hose for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60FC6X1 DW60CHX1 DW60UZ6B HDW13V1S1 HDW15V2S2

Part H0120200643 is the genuine long drain hose for Fisher & Paykel DW60 dishwashers and the matching Haier HDW models. It's listed for the DW60FC4X1 and DW60FC6X1, the DW60FC2W1 and DW60CHX1, and the DW60UZ6B and DW60OUC6X, along with Haier HDW13V1S1, HDW14G2X and HDW15V2S2. The hose carries waste water from the pump to your sink trap or standpipe.

Dishwasher not draining or leaking under the sink

Every time the pump runs, dirty water is pushed through this hose and out to the drain. A hose that's kinked behind the cabinet, crushed when the dishwasher was slid into place, or blocked with food scraps leaves water sitting in the base of the tub. You might also see a drain error code, standing water after a cycle or a sour smell. Splits and perished rubber show up as water under the sink or a damp kickboard. If clearing a blockage doesn't fix it, or the hose is damaged, replace it.

Part details

• Genuine part H0120200643
• Long length drain hose
• Fits Fisher & Paykel DW60 and Haier HDW dishwashers listed

Fitting the drain hose

Turn off the power at the wall and the water at the tap, then slide the dishwasher out. Disconnect the old hose at the pump end and at the sink spigot, with a tray ready for leftover water. Route the new hose without kinks and loop it up high under the bench before it drops to the drain, which helps stop dirty water siphoning back. Run a cycle and check both connections.

Questions about this part

Is this the right drain hose for my dishwasher?

Check the model number on the label, usually on the side edge of the door. H0120200643 is listed for Fisher & Paykel DW60 models such as DW60FC4X1 and DW60CHX1, and Haier HDW13V1S1 and HDW15V2S2.
