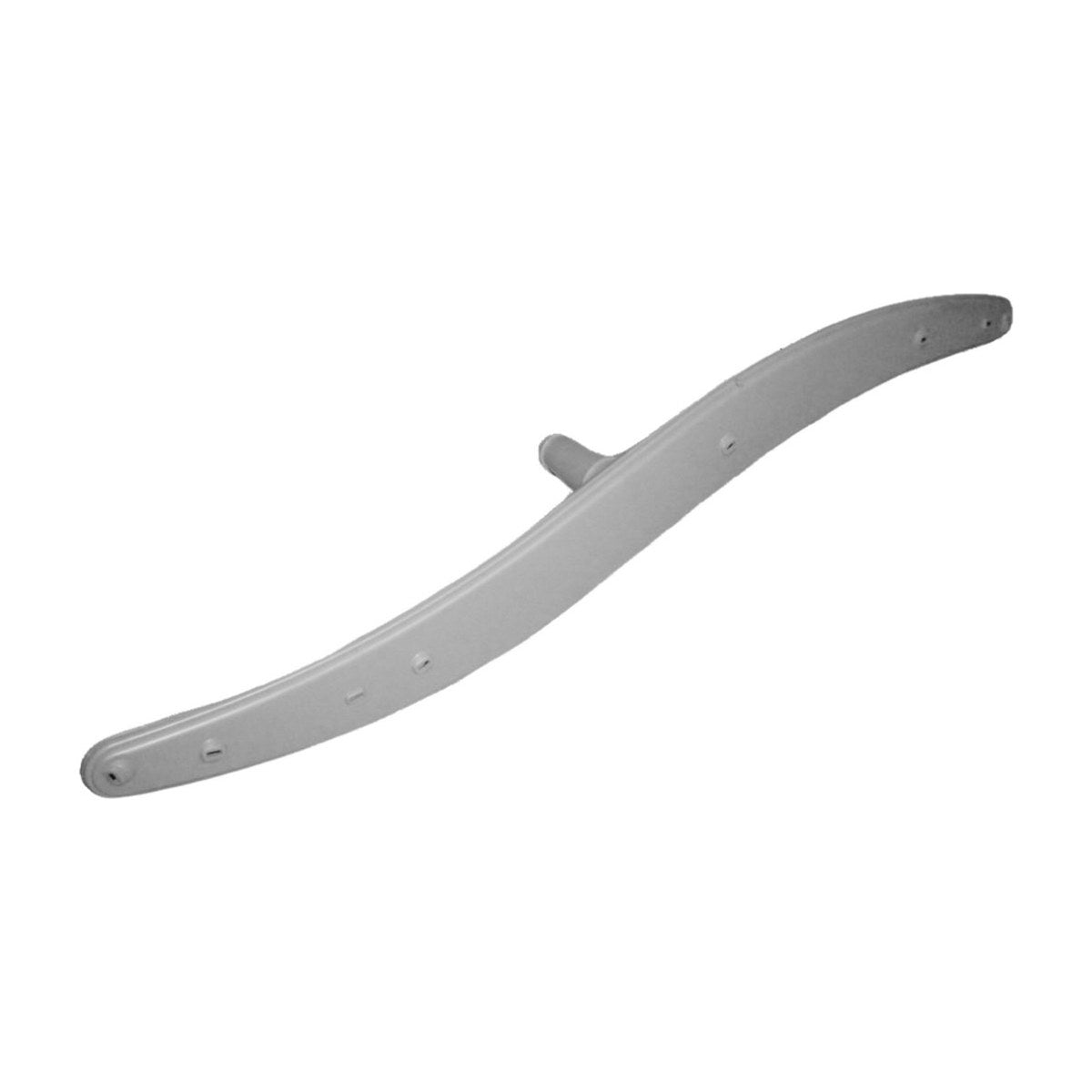

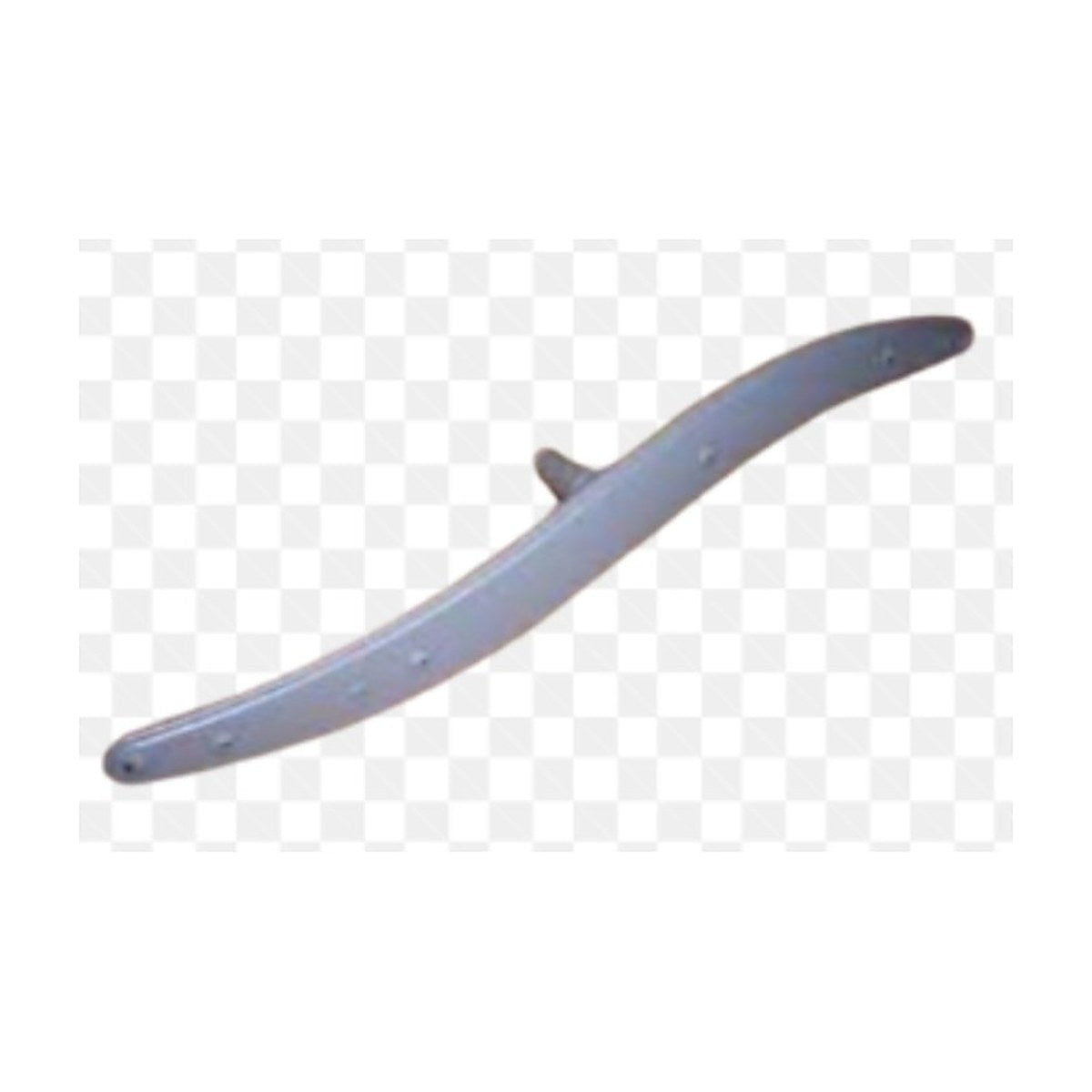

H0120200366 Genuine Lower Spray Arm for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60FC6X1 DW60CHX1 DW60UC6X HDW13V1S1 HDW15V2S2

H0120200366 is a genuine lower spray arm shared by a number of Fisher & Paykel and Haier dishwasher models. On the Fisher & Paykel side it's listed for the DW60FC4X1, the DW60FC6X1 and DW60FC2X1, the DW60CHX1 and DW60CKX1, plus the DW60UC6X and DW60UD6X1. Haier models include the HDW15V2S2, the HDW15G3X and the HDW13V1S1. It spins under the bottom basket and does most of the work on plates and pots.

Dishes on the bottom rack coming out dirty

Water from the wash pump is forced up into the lower arm and out through its jets, and the force of that water spins the arm under the bottom basket. If the arm cracks or warps, pressure leaks away and it slows or stops turning. Blocked jets have the same effect. You'll notice food left on plates in the lower rack, gritty residue on pots, or a knocking sound where a loose arm catches on the basket. Clear the jets with a toothpick first. If the arm is split, warped or won't spin freely on its mount, replace it.

Part details

• Genuine part H0120200366
• Lower spray arm
• Listed for Fisher & Paykel DW60 dishwashers
• Also listed for Haier HDW13 and HDW15 dishwashers

Removing the lower spray arm

Turn the dishwasher off and pull the bottom basket right out. Depending on the model, the lower arm either lifts straight up off its hub or is held by a nut or clip in the centre, so check before pulling hard. Rinse the hub and filter area while the arm is off. Press the new arm into place, spin it by hand to make sure it clears the filter and basket, then run a quick program.

Questions about this part

How can I tell if my spray arm is blocked or broken?

Take it out and look along each jet. Blocked holes can be cleared with a toothpick under running water. A crack, warping or a loose seam means the arm won't hold pressure, and it needs replacing.
