H0120200356 Genuine Inner Door Seal for Fisher & Paykel, Haier Dishwashers DW60FC4X1 DW60FC2W1 DW60FC6X1 DW60U6I1 HDW13V1W1 HDW15V2S1 DW60CHPX1

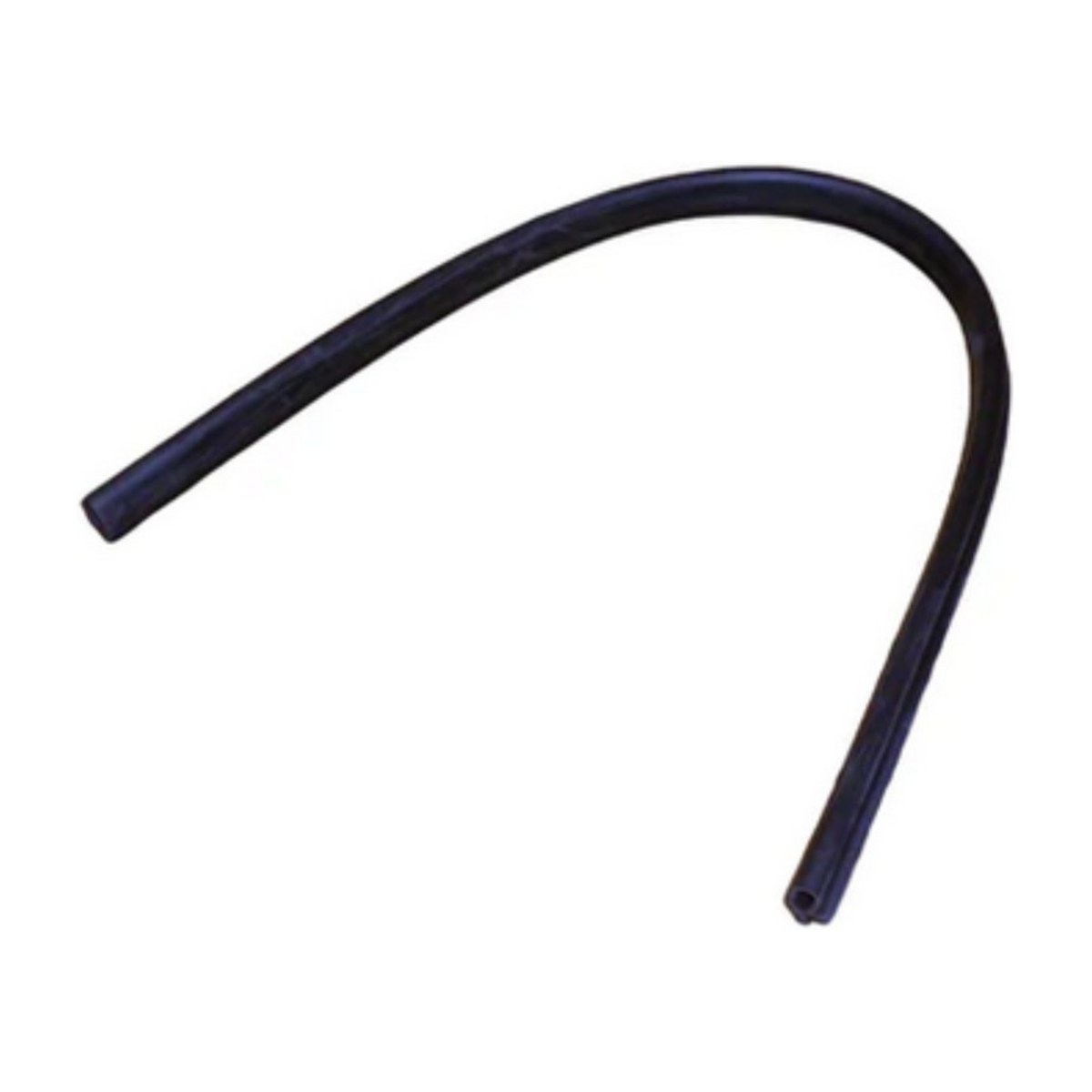

This genuine door gasket, part H0120200356, is the inner door seal used on a group of Fisher & Paykel and Haier dishwashers. It is listed for Fisher & Paykel DW60FC models such as the DW60FC2W1, DW60FC4X1 and DW60FC6X1, the DW60U2I1 and DW60U6I1, the DW60CH and DW60CK models, and Haier HDW13, HDW14 and HDW15 dishwashers.

Dishwasher leaking around the door?

The inner door gasket helps seal the door against the tub so water stays inside while the spray arms are running. It is squeezed every time the door closes and soaks in hot water and detergent through every wash, so over the years the rubber can flatten, harden or split. Food scraps and grease caught against it also stop it sealing properly. The usual signs are water seeping out at the lower corners or sides of the door, damp patches on the floor or cabinetry after a wash, and steam escaping where it shouldn't.

Part details

• Genuine Fisher & Paykel and Haier part H0120200356
• Inner door gasket
• Listed for 28 Fisher & Paykel and Haier dishwasher models
• Covers DW60FC, DW60U, DW60CH and DW60CK models and Haier HDW13, HDW14 and HDW15 ranges

Fitting the inner door seal

Switch off at the wall and turn off the tap. Note where the old gasket starts and finishes and how it is held, then pull it out and wipe the mounting area clean of grease and scale. Work the new seal into place from one end, keeping it even without stretching it, then close the door and run a rinse to check for drips.

Questions about this part

Is the Haier version the same part?

Yes. Fisher & Paykel and Haier share this gasket on the models listed, and H0120200356 is the number for both brands. Check your model on the rating label at the edge of the door before ordering.
