H0060851996 Genuine Ice Maker Assembly for Fisher & Paykel Fridges RF605QDUVX1 RF203QDUVX1, Complete Ice Maker Unit
- Original part no.
- H0060851996
- Part grade
- Genuine
- Appliance
- Fridge Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

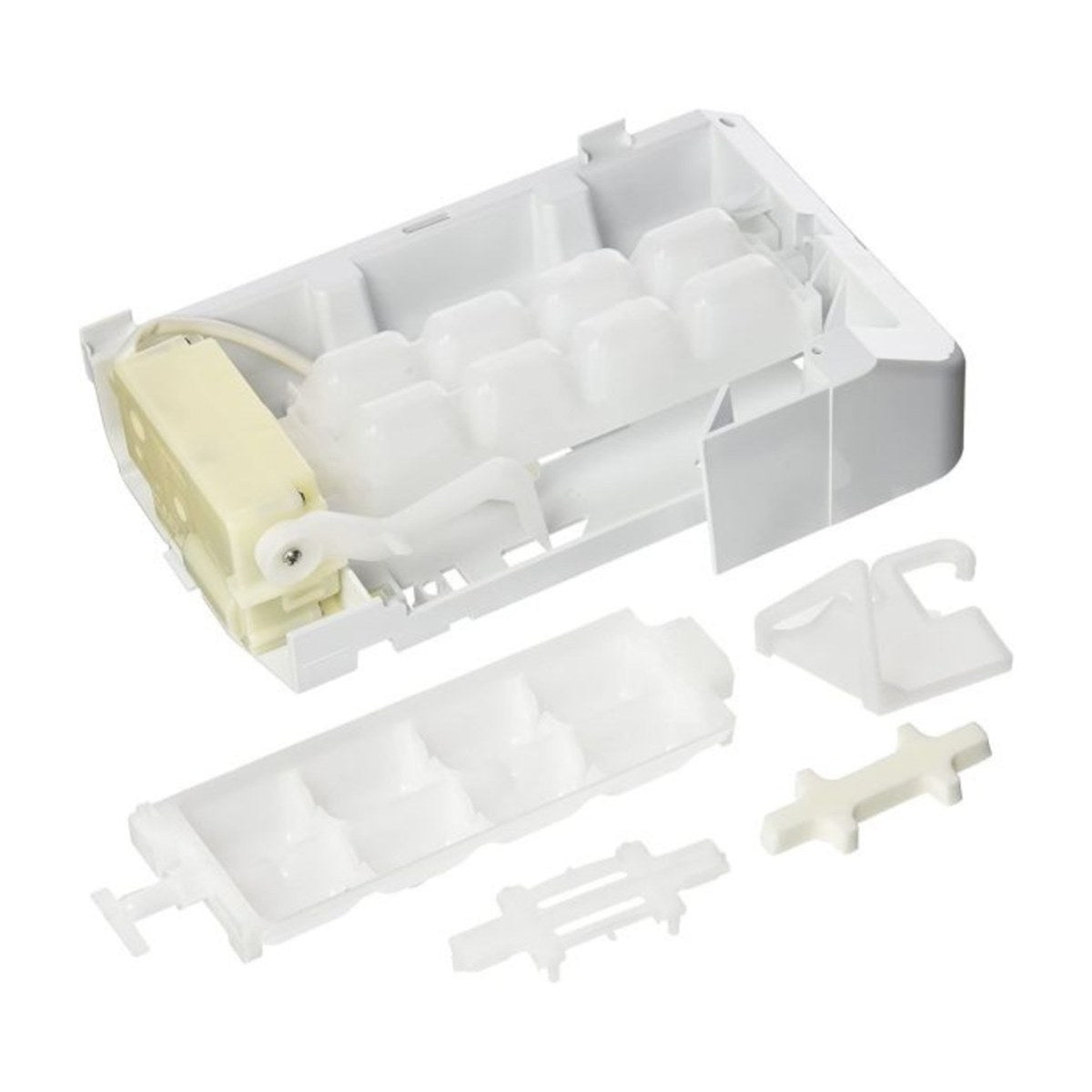

When a Fisher & Paykel fridge stops making ice, this genuine ice maker assembly, part H0060851996, is the complete unit for the RF605QDUVX1 and RF203QDUVX1. Supplied as an assembly, it replaces the ice maker as a whole rather than one small component. Make sure the water supply, filter and inlet valve are working before you order, since they cause similar symptoms.
Fisher & Paykel fridge not making ice?
The ice maker fills its tray with water, waits for it to freeze, then ejects the cubes into the bin and starts again. Faults include a tray that never fills, cubes that freeze but are not released, a motor that clicks or stalls, and ice that is small, hollow or fused together. An ice maker that keeps cycling, or overfills and spills water into the freezer, can also be faulty. Low water pressure, a clogged filter or a frozen fill tube can cause some of the same problems, so rule those out first.
Part details
- Genuine Fisher & Paykel ice maker assembly H0060851996
- Supplied as a complete assembly
- Listed for RF605QDUVX1 and RF203QDUVX1
Swapping the ice maker
Unplug the fridge and turn off the water supply. Empty the ice bin and remove it so you can reach the ice maker. Disconnect the wiring plug, undo the mounting screws and lift the old unit out, keeping an eye on the fill tube position. Fit the new assembly, reconnect power and water, and give the freezer time to come back down to temperature.
Questions about this part
How long before the new ice maker makes ice?
Once fitted, the freezer needs to be cold enough for the tray to freeze. Expect a wait of several hours for the first cubes, and throw away the first batch or two in case they carry any dust from the install.
Specifications
| Original part number | H0060851996 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | H0060851996 |
| Appliance | Fridge Parts |
| Shipping weight | 0.4 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
