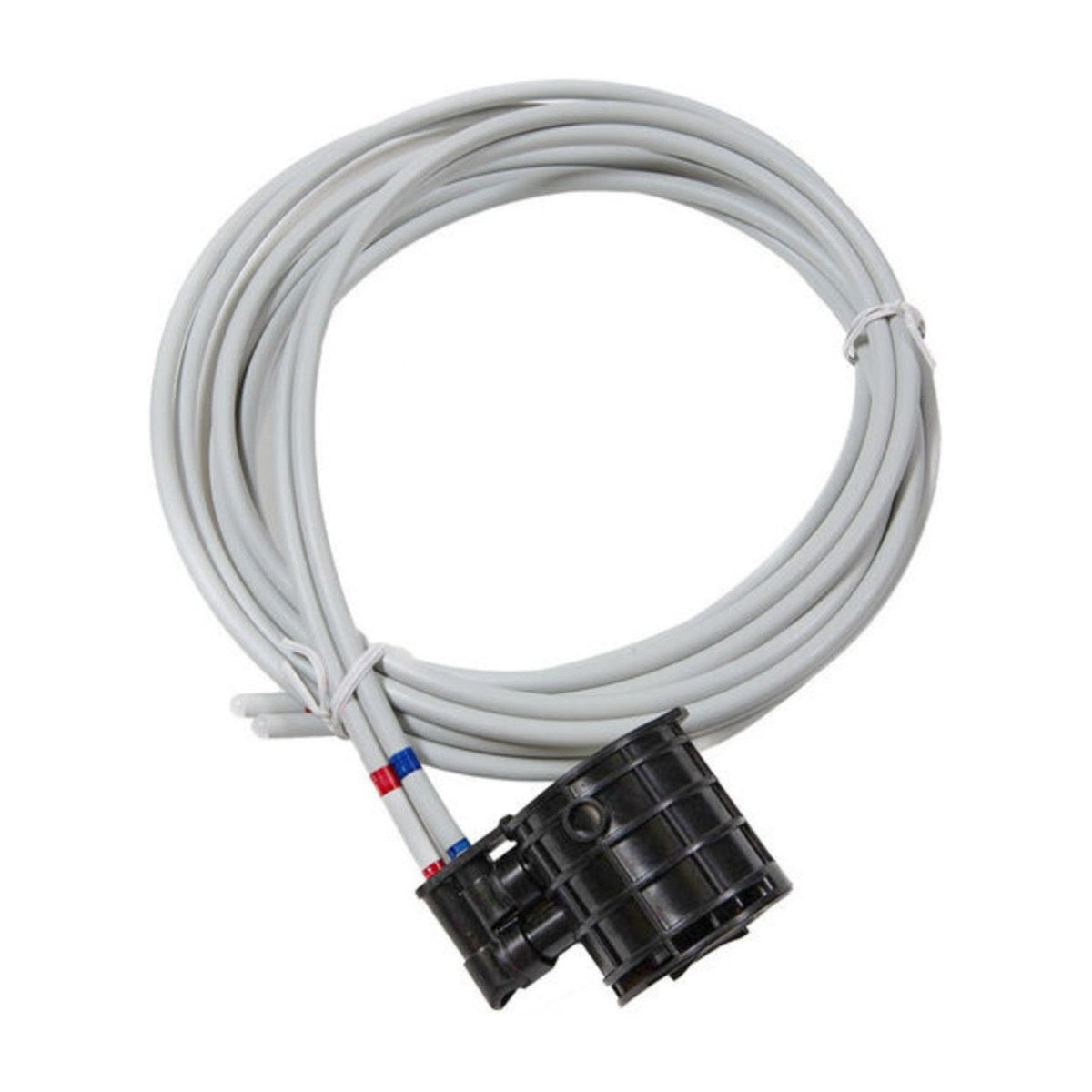

H0060236202C Genuine Fridge Water Filter Head 90 Degree 2m for Fisher & Paykel Fridges RF605QDUVX1 RF605QDUVB1 RF523GDUX1 RF172GDUX1

H0060236202C is the genuine Fisher & Paykel 90 degree water filter head in the 2m version, made for setups where the filter is mounted outside the fridge. It takes the 847200 or 847201 cartridge. Fridges on file include the RF605QDUVX1 and RF605QDUVB1, the RF605QNUVX1, the RF523GDUX1 and RF523MLDUX1, plus the RF172GDUX1 and RF203QDUVX1. The number H0060236202 is linked to the same head.

Water dispenser slow or leaking at the filter

The head is the fixed part of the filter system. Water from the supply line enters it, passes through the cartridge locked into it, and leaves for the fridge's dispenser and ice maker. A cracked body, worn sealing faces or a damaged lock will cause drips at the filter, a cartridge that won't seat or keeps popping loose, or slow and spluttering flow. If a brand new cartridge still leaks or won't lock in, the head is the likely problem. Leaks here are worth fixing quickly, as water can run unseen behind cabinets.

Part details

• Genuine Fisher & Paykel part H0060236202C
• 90 degree filter head for an external filter setup
• Takes 847200 or 847201 filter cartridges
• Also linked to H0060236202

Replacing the filter head

Turn off the water to the fridge and switch the fridge off at the wall. Twist out the old cartridge, disconnect the water lines and take the head off its mounting. Fit the new head facing the same way, push the lines fully home and clip them. Fit a cartridge that matches your fridge's specification, then run several litres through the dispenser to purge air and check every joint for drips.

Questions about this part

Which cartridge goes in this head?

It takes either 847200 or 847201. The filter has to suit the fridge it's feeding, so check your fridge's manual or model number to confirm which cartridge it calls for before fitting one.
