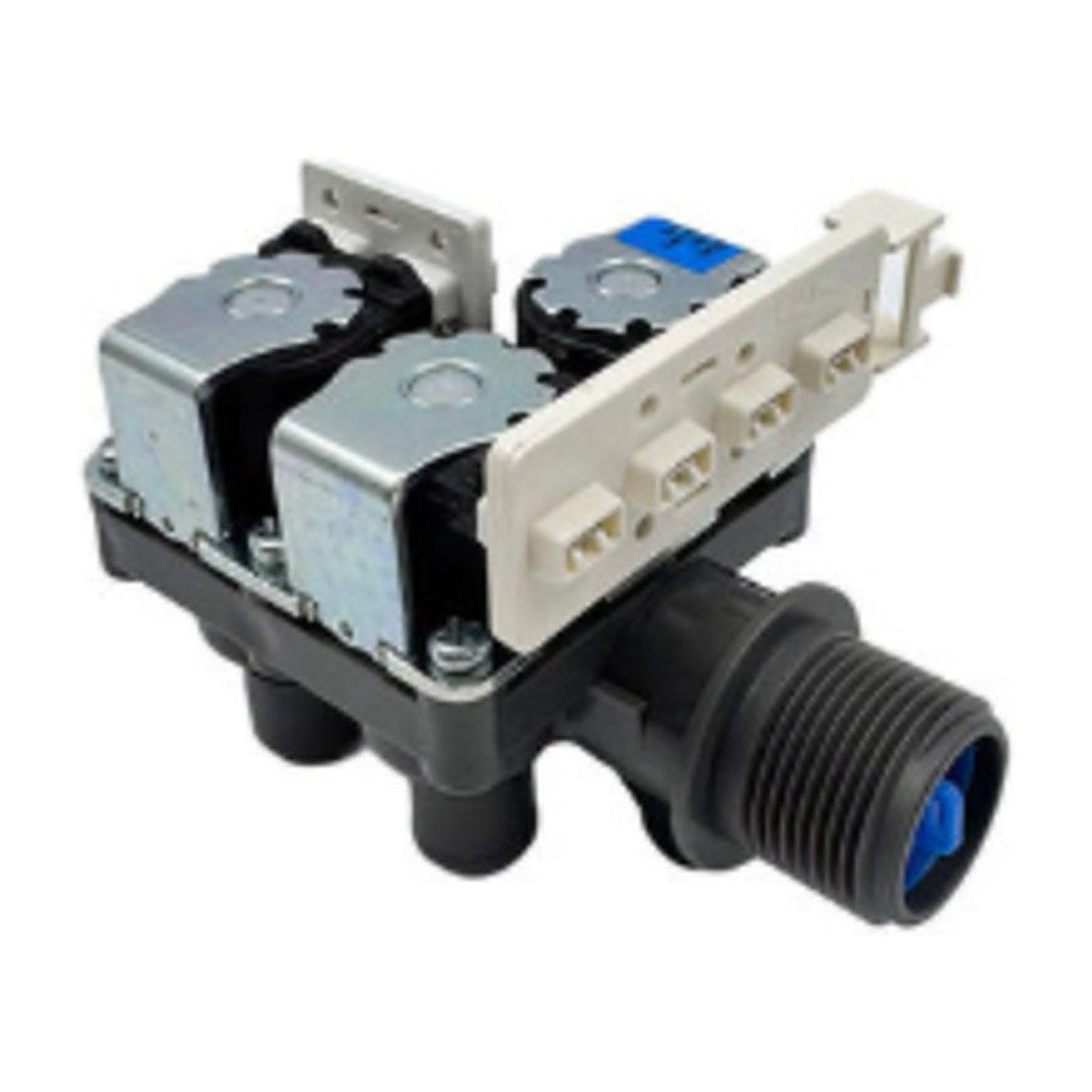

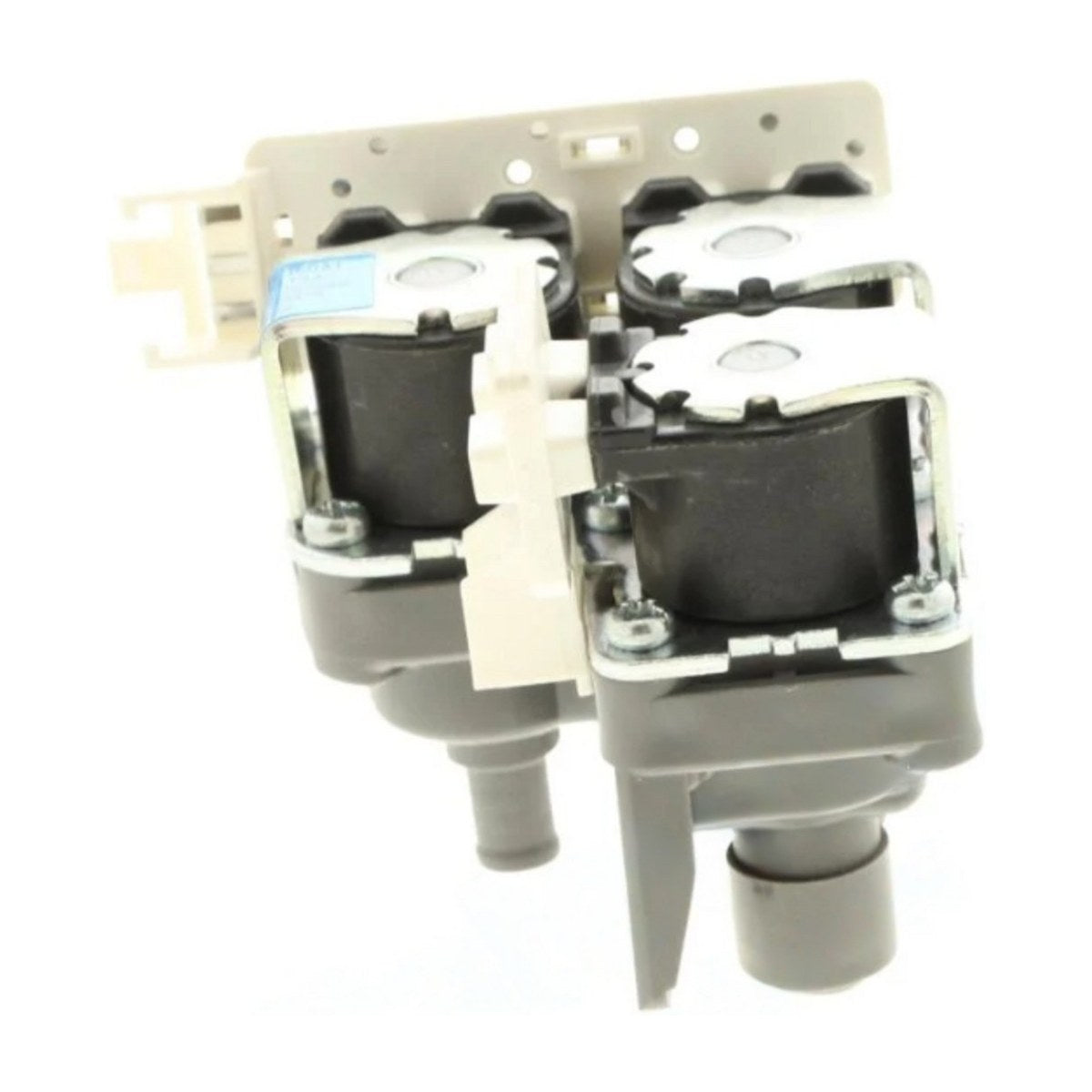

H0034001119A Genuine Cold Water Inlet Valve for Haier Top Load Washing Machines HWT08AN1 HWT09AN1 HWT10AN1

Haier HWT08AN1, HWT09AN1 and HWT10AN1 top loaders take their cold water through this valve, part H0034001119A. It's the genuine Haier part, fitted where the cold hose connects to the washer. If your machine has stopped taking in cold water, or water keeps flowing when it shouldn't, H0034001119A is the part to check first.

Haier top loader not filling with cold water

Inside the valve is an electric coil and a rubber diaphragm. When the washer calls for cold water, the coil opens the diaphragm and water flows into the bowl, and when the power drops the valve closes again. Common failures are a coil that's gone open circuit, so the machine never fills, a diaphragm that won't seal, so water keeps dribbling in even with the washer off, and a blocked inlet screen that makes filling painfully slow. Because these valves sit under mains pressure all day, a cracked body can also leak.

Part details

• Genuine Haier part H0034001119A
• Cold water inlet valve
• Suits Haier HWT08AN1, HWT09AN1 and HWT10AN1 top load washers

Swapping the cold inlet valve

Turn both taps off and unplug the washer. Unscrew the cold hose from the valve and check the filter screen and hose washer while you're there. Take off the panel that gives access to the valve, photograph the wiring and outlet hose, then move them across to the new valve one at a time. Refit the panels before turning the taps back on and running a short fill to check for leaks.

Questions about this part

How can I test the valve before buying?

With the washer unplugged and the wires off, a multimeter across the coil terminals should show a resistance reading. An open circuit means the coil has failed. If the coil reads normally but the machine still won't fill, check the tap and the inlet screen before replacing the valve.
