H0030100251 Genuine Drum Shaft Flange for Fisher & Paykel, Haier Dryers DE8060P1 DE8060P2 DH8060P1 DH9060P1 DC8060P1 HDHP80AW1 HDHP90AN1

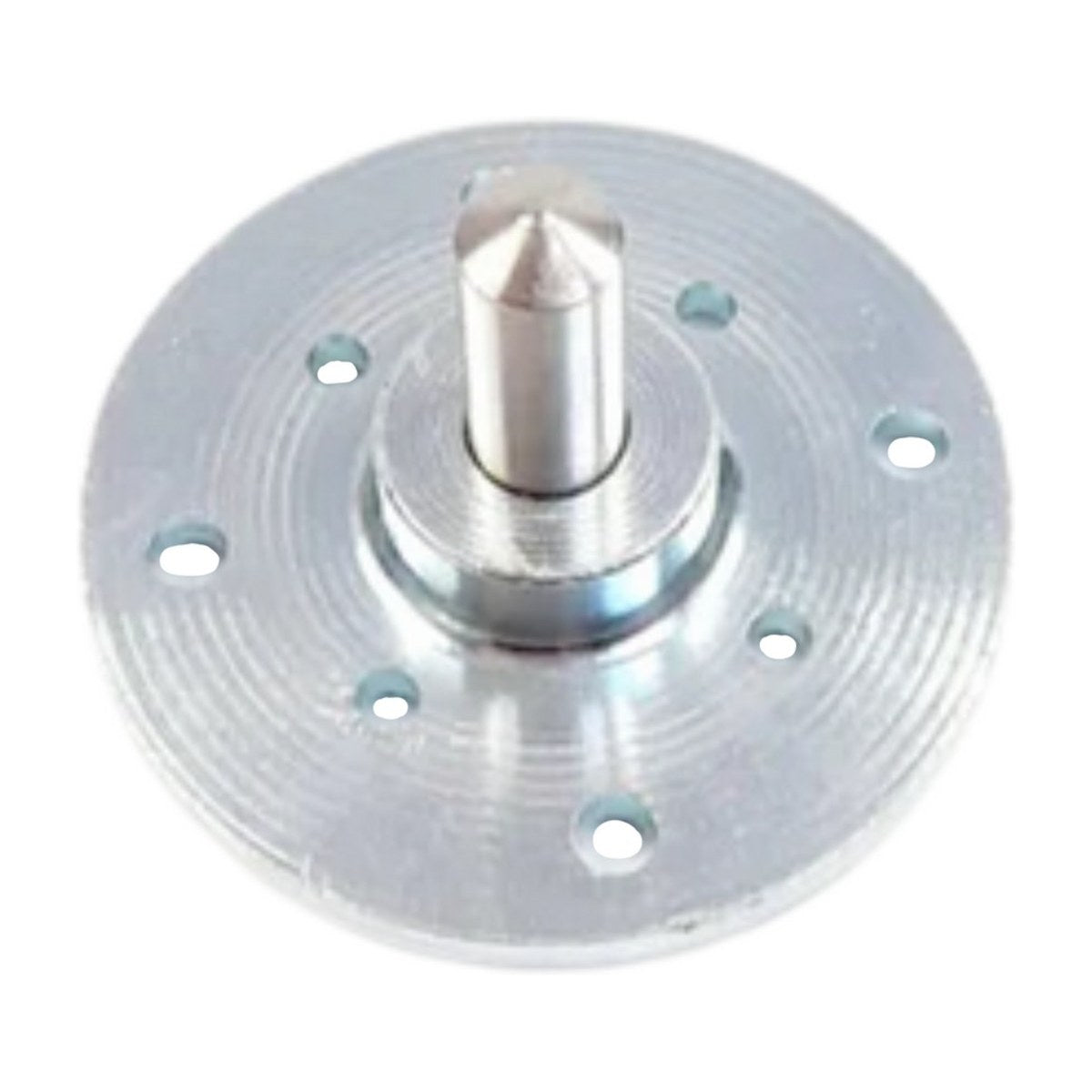

Part H0030100251 is the genuine flanged drum shaft used on a wide range of Fisher & Paykel and Haier dryers. It's listed for 26 models, from the DE8060P1, the DE8060P2 and the DC8060P1 to the DH8060P1, the DH9060P1 and the DH9060FS1, plus Haier heat pump dryers such as the HDHP80AW1 and HDHP90AN1.

Dryer drum wobbling, knocking or grinding?

The flange bolts to the back of the drum, and its shaft turns in the rear bearing, carrying the drum's weight as it rotates. If the shaft wears, the flange cracks or its fixings work loose, the drum can wobble, scrape against the felt seals or cabinet, knock with every turn, or drop and stop turning altogether. A worn rear bearing often goes hand in hand with shaft damage, so check both while the drum is out. Squealing or grinding from the back of the dryer is a common early warning.

Part details

• Genuine drum shaft flange H0030100251
• Supports the rear of the dryer drum
• Listed for 26 Fisher & Paykel and Haier dryer models
• Includes the DE8060P2 and the HDHP90AN1

Replacing the drum shaft

Unplug the dryer and give yourself room to work, as the drum has to come out. Mark the position of the old flange on the drum, undo its screws and fit the new one in the same orientation. Inspect the rear bearing and drum seals while everything is apart. Refit the drum and belt, then run the dryer empty and listen for noise.

Questions about this part

Do I need a new bearing as well?

Not always, but the shaft and bearing wear together. If the bearing feels rough or loose, replace it at the same time. On the DE8060P2 parts list the drum bearing is a separate number, H0030201590.
