H0024000406A Genuine Drain Pump for Fisher & Paykel Front Load Washing Machines WH1160P3 WH1060P1 WH1160S1

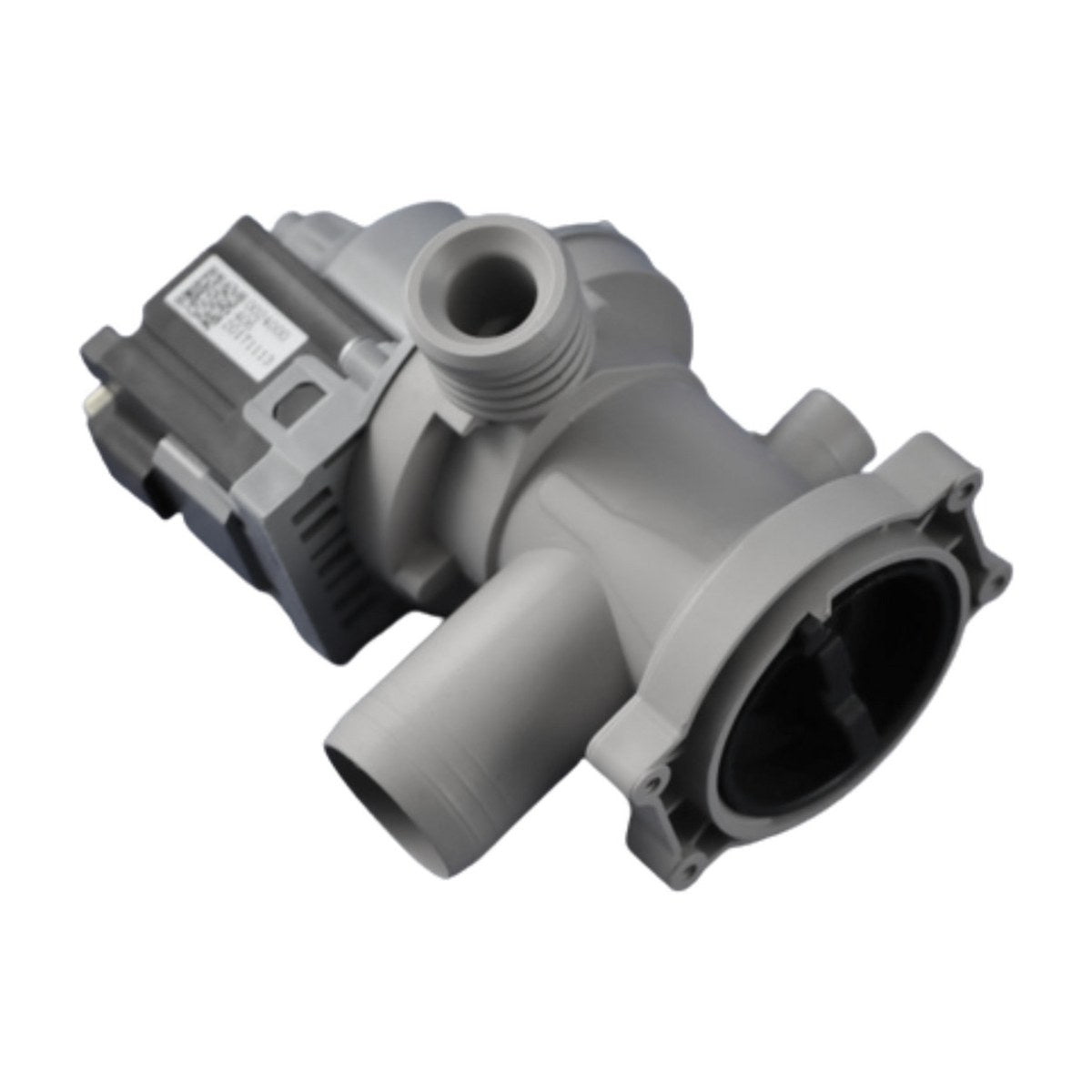

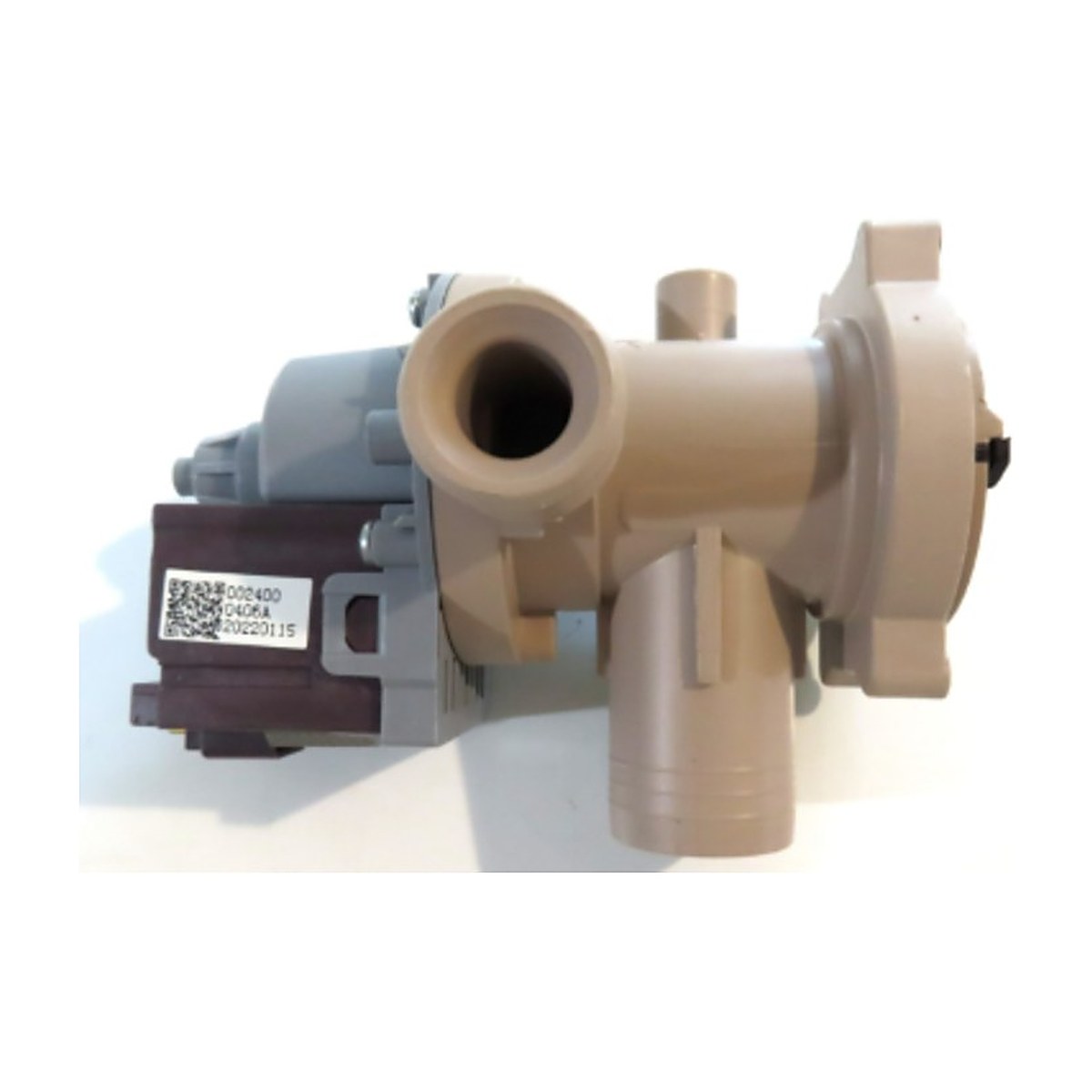

This is the genuine Fisher & Paykel drain pump, part H0024000406A, for front load washing machines. It is listed for the WH1160P3, WH1060P1 and WH1160S1. The pump sits low at the front of the machine behind the lint filter and pushes used water out through the drain hose after each wash and rinse. The matching filter cap for this pump is part H0020813720.

Fisher & Paykel washer not draining or showing a drain error

When the pump fails, the drum is left holding water, the cycle stalls before spin and the display may show a drain fault. A pump on its way out often hums without moving water, drains slowly, or makes a grinding or rattling sound. Before buying, clean the filter and check the drain hose for kinks, because a blocked filter gives exactly the same symptoms. If the filter is clear and the pump still won't clear water, or the impeller is broken or jammed, the pump needs replacing.

Part details

• Genuine Fisher & Paykel drain pump H0024000406A
• Listed for WH1160P3, WH1060P1 and WH1160S1 front loaders
• Matching filter cap part number H0020813720
• Sits behind the lint filter at the base of the machine

Changing the drain pump

Unplug the machine and turn off both taps. Have towels and a shallow tray ready, then let out any trapped water through the filter before going further. Depending on the model, the pump is reached from the front kickplate or from underneath. Photograph the wiring and hoses, swap the pump across, then run a rinse and spin to check it drains and nothing leaks.

Questions about this part

Do I need a new filter cap too?

Only if yours is cracked, stripped or leaking. The cap that matches this pump is H0020813720. If your old cap screws in firmly and seals well, you can usually reuse it. Clean the threads and the rubber seal before refitting it.
