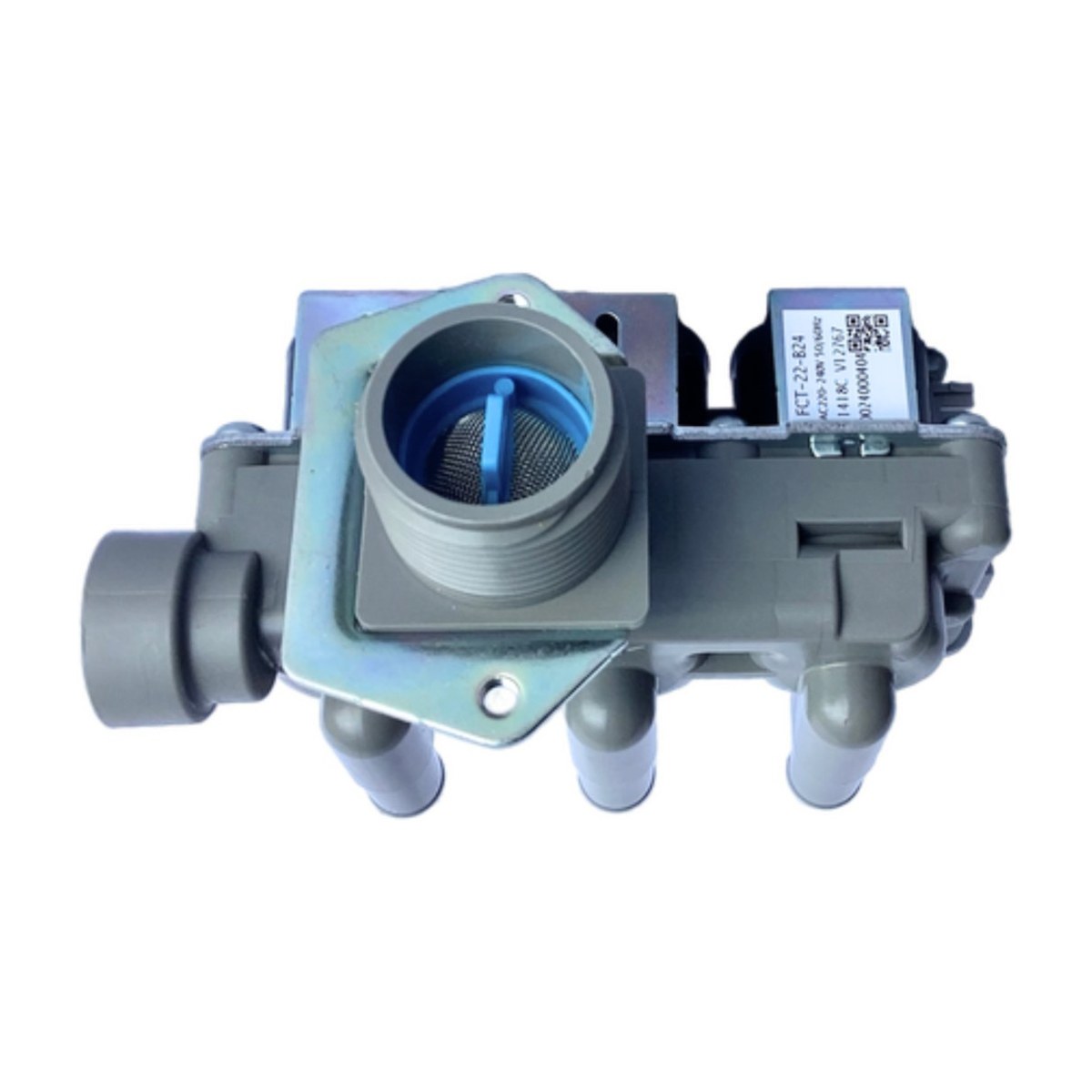

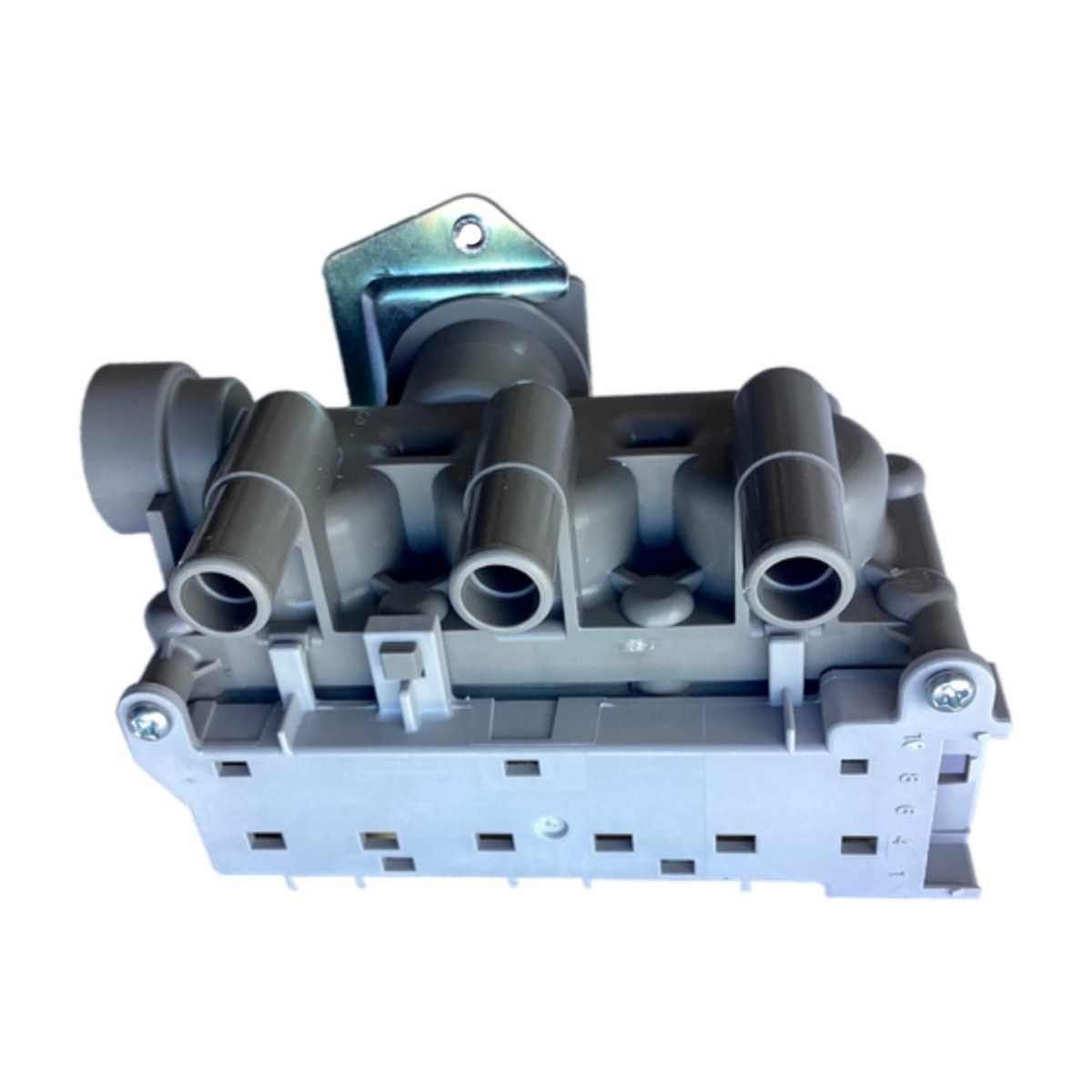

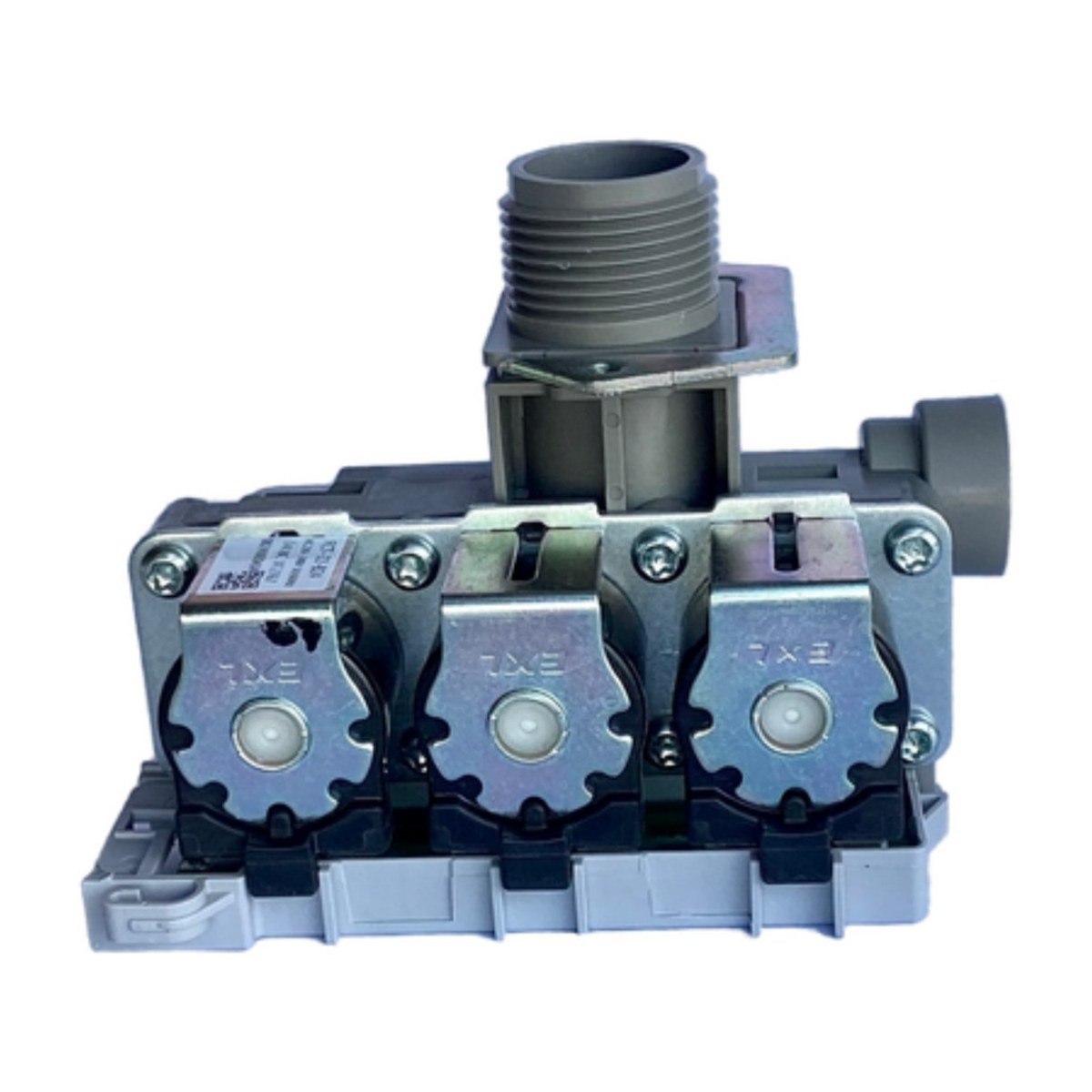

H0024000404 Genuine Water Inlet Valve for Fisher & Paykel and Haier Washing Machines, suits Fisher & Paykel WD7560P1

This is the genuine water inlet valve H0024000404, a Haier group part listed for the Fisher & Paykel WD7560P1. The valve controls the water coming into the machine from your taps, opening when the washer needs to fill and shutting off when it has enough. Only the one model is on file, so check the number on your old valve if your machine is a different model.

Washer not filling, or filling when it shouldn't?

Inside the valve, solenoid coils lift small diaphragms to open each water path when the control board sends power. When a coil burns out, the machine fills slowly, fills from one side only or not at all, and usually stops with a fill error. A diaphragm that sticks or splits can let water keep creeping into the drum even with the washer off, which is a clear sign the valve is faulty. A blocked filter screen at the hose inlet can also slow filling, so check it before replacing the valve.

Part details

• Genuine Haier group water inlet valve H0024000404
• Listed for the Fisher & Paykel WD7560P1
• Controls water entering the washer from the taps

Fitting the inlet valve

Turn off both taps, unplug the washer and disconnect the fill hoses at the back. Remove the top panel to reach the valve, photograph the internal hoses and wiring, then transfer them to the new valve in the same positions. Reconnect the fill hoses with their washers in place, turn the taps on slowly and watch for leaks.

Questions about this part

My washer is not a WD7560P1. Will this valve fit?

It is only confirmed for the WD7560P1 so far. Valves can look alike but differ in outlet layout and connectors, so compare the number on your old valve, or send your model through the parts enquiry form so we can check.
