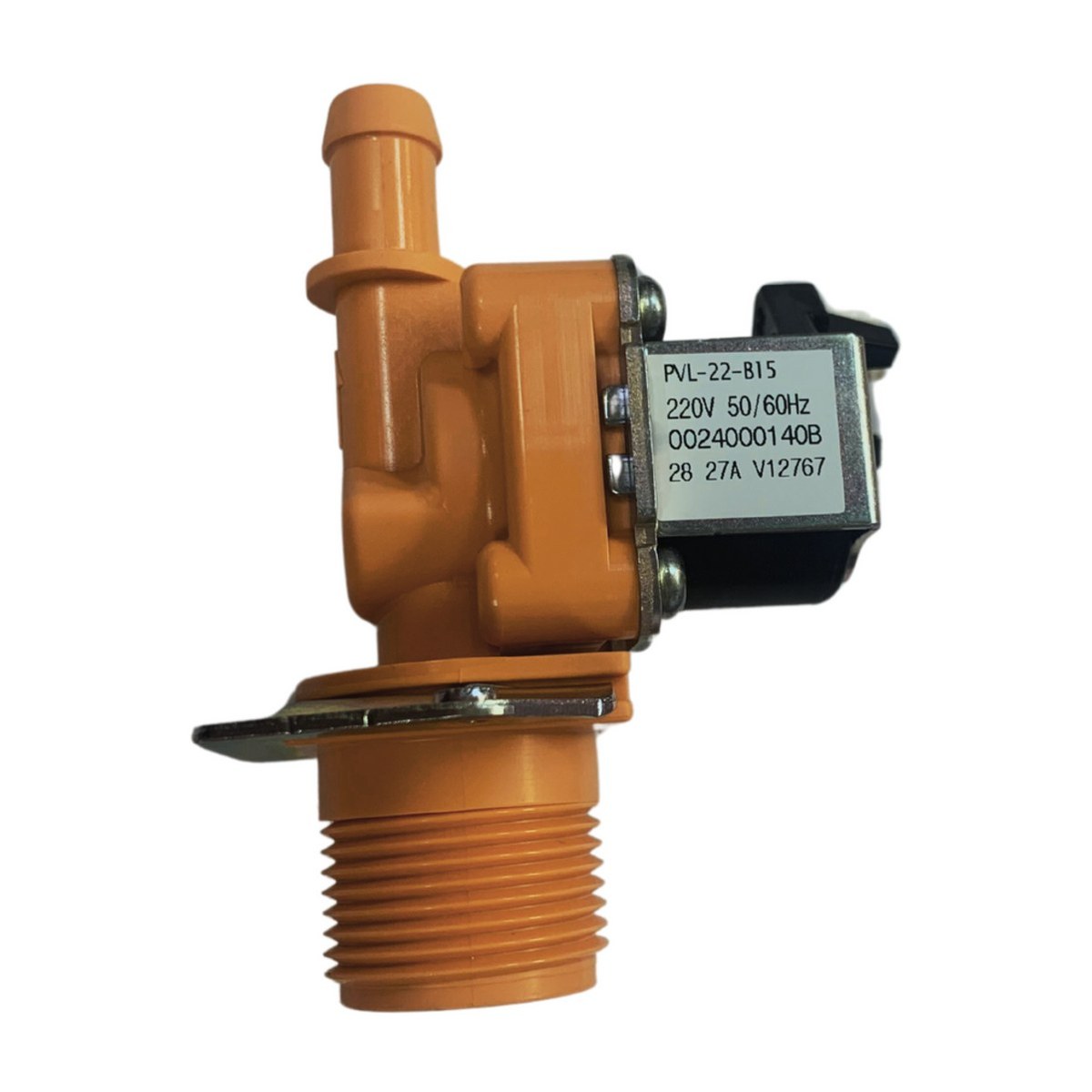

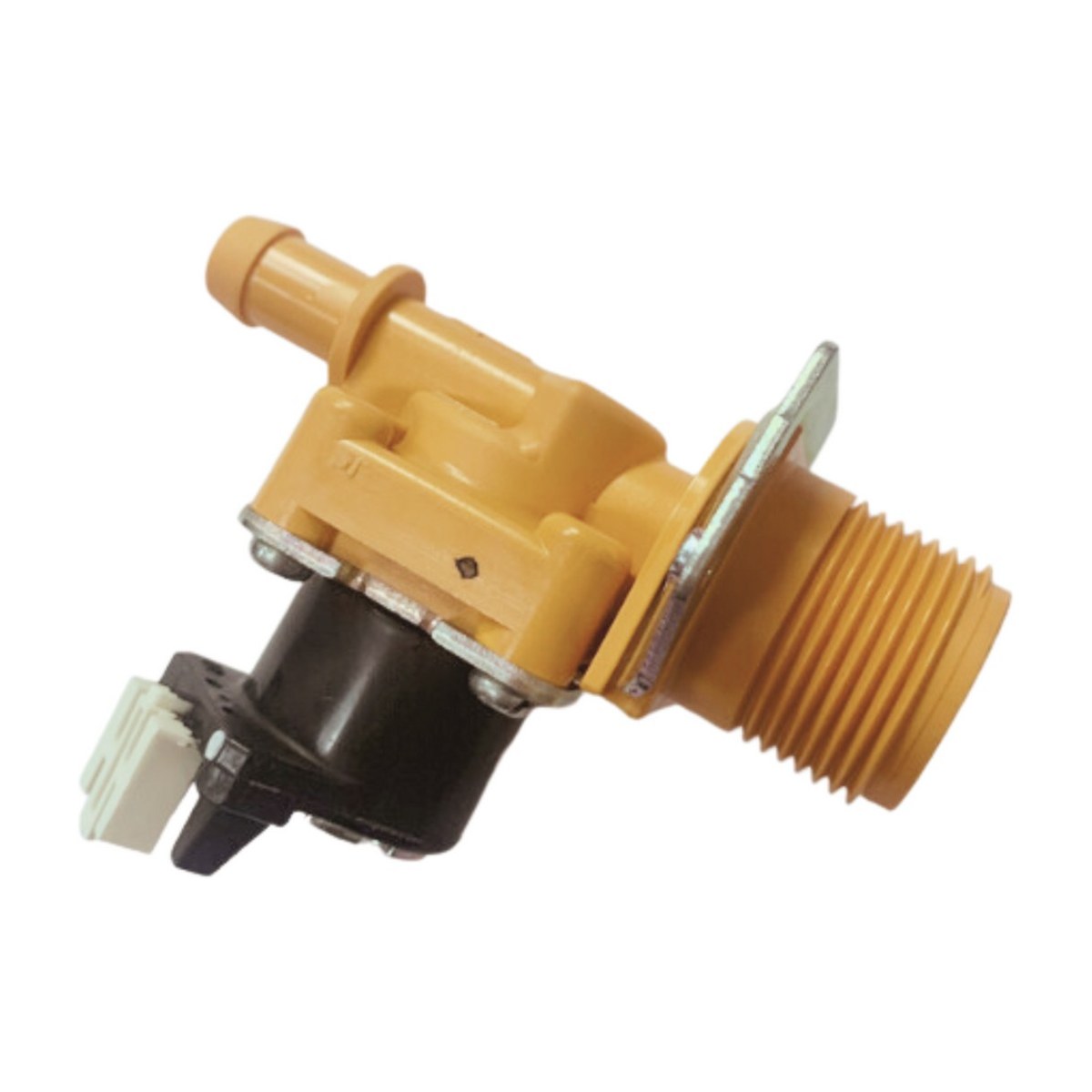

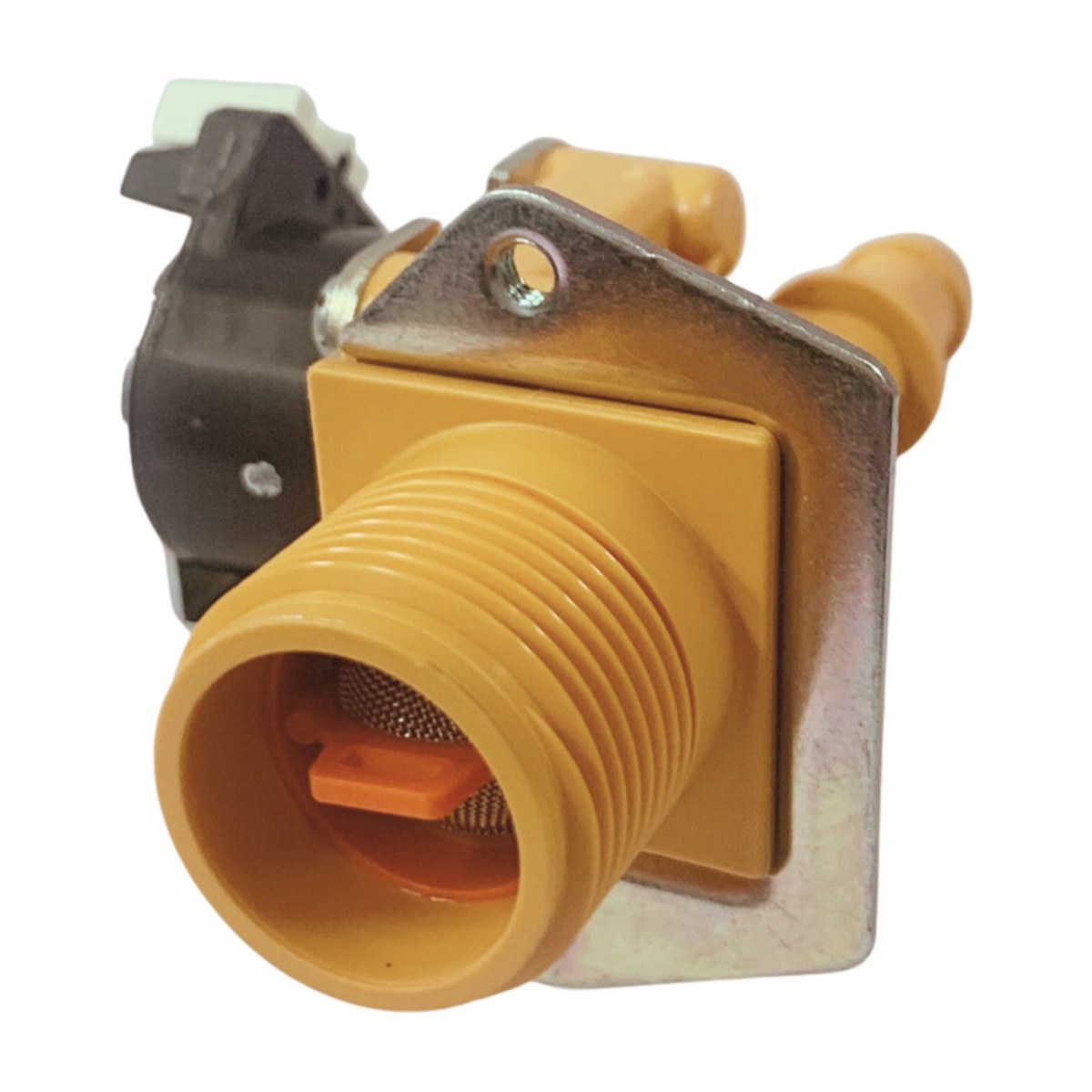

H0024000140B Genuine Hot Water Inlet Valve for Fisher & Paykel Front Load Washing Machines WH7560P1 WH7560J1 WH8060P1 WH8560P1 WH8560J1
- Original part no.
- H0024000140B
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
No hot water going into the wash? On the WH7560 front loader in P1, J1, P2 and J2 builds, as well as the WH8060P1 and the WH8560 in P1 and J1 versions, the hot supply is controlled by genuine Fisher & Paykel valve H0024000140B. If the machine fills slowly on warm washes, or water trickles in when it's switched off, this solenoid valve is the part to check.
Washer not filling with hot water?
When the program calls for warm or hot water, the control board energises the hot valve's solenoid coil, which opens the valve and lets water in from the hot tap. A failed coil leaves the valve shut, so the machine fills only with cold water, or not at all on hot settings, and may stop with a fill fault. A worn diaphragm can do the opposite and let water seep in while the machine sits idle, flooding the drum overnight. Slow filling can come from a blocked filter screen in the valve inlet, so check that and the tap before replacing the valve.
Part details
- Genuine Fisher & Paykel part H0024000140B
- Hot water inlet valve
- Listed for WH7560 in P1, J1, P2 and J2 builds
- Also fits WH8060P1, WH8560P1 and WH8560J1
Changing the hot inlet valve
Turn off both taps and the power at the wall, then unscrew the hot hose from the back of the machine. Once the valve is exposed, usually after the top panel comes off, photograph its wiring and hose connections. Swap the valve over, reconnecting the wires and outlet hoses exactly as before. Refit the supply hose with its washer and filter in place, open the tap and check for leaks before running a warm wash.
Questions about this part
Is this the cold valve too?
No, this is the hot valve only. Machines like these use a separate valve for the cold supply. If your fault is on the cold side, send us your model number and we'll find the matching cold valve.
Specifications
| Brand | Fisher & Paykel |
|---|---|
| Original part number | H0024000140B |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | H0024000140B |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
