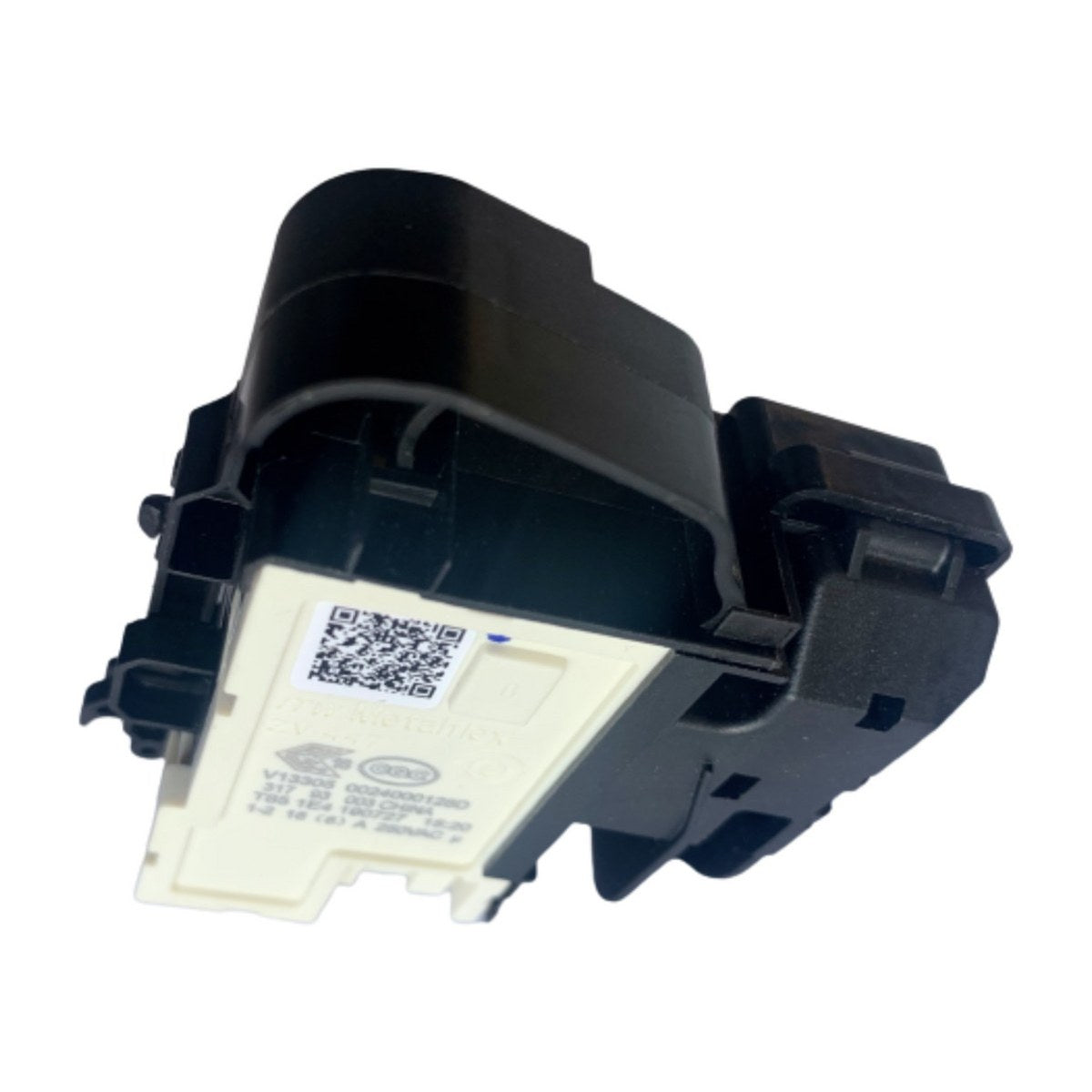

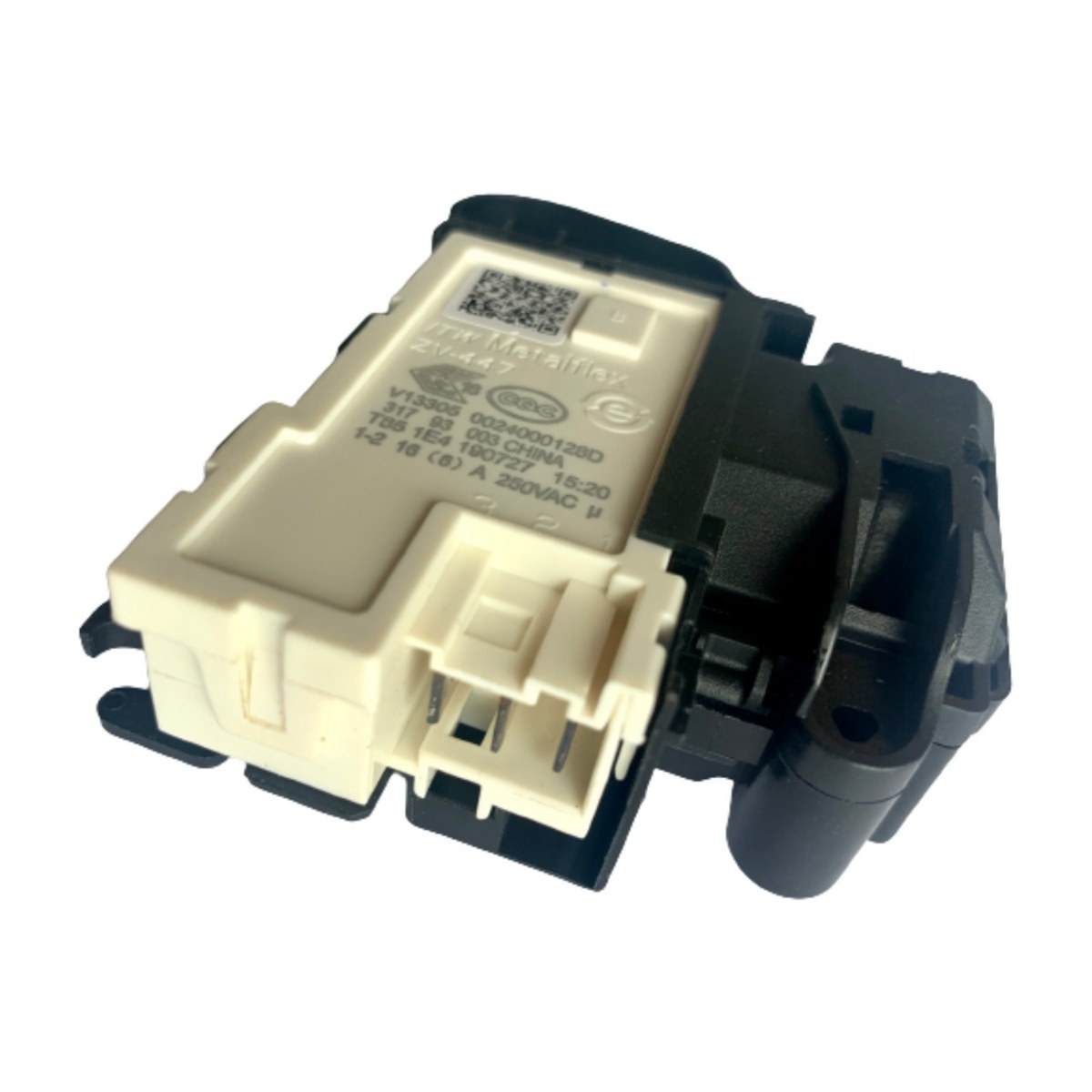

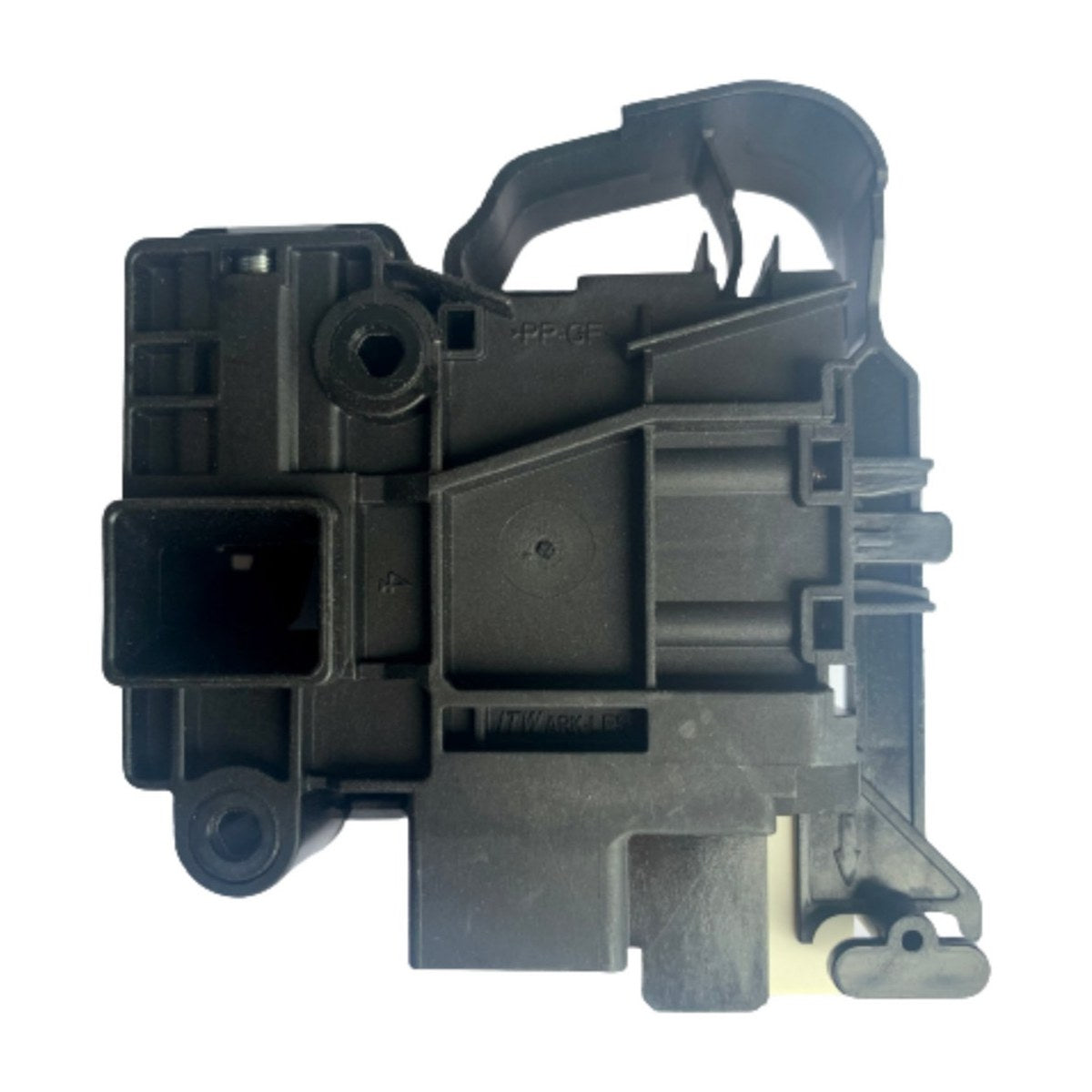

H0024000128D Genuine Door Lock for Fisher & Paykel Front Load Washing Machines WH7560J3 WH8560J3 WH8060P2 WH8560P2 WH7560P1 HWF85DW1

This genuine Fisher & Paykel door lock, part H0024000128D, is also listed under H0024000128A. It's the interlock fitted to WH7560, WH8060 and WH8560 front loaders, including the WH7560J3, WH8560J3 and WH8060P2, and it's also on file for the HWF85DW1 and HWM85-1482. Fit H0024000128D when the machine won't start because the door won't lock, or the door stays locked after a cycle.

Front loader door won't lock or won't open

A front loader must not start filling or spinning with the door open, so the door lock does two jobs. It physically locks the door once a cycle starts, and it signals the control board that the door is shut and secure. When the lock fails, the machine may refuse to start, flash a door error, beep and stop part way through, or keep the door locked long after the cycle has ended. A broken door catch can cause similar symptoms, so check the hook on the door itself isn't bent or cracked before blaming the lock.

Part details

• Genuine Fisher & Paykel part H0024000128D
• Also listed as H0024000128A
• Door lock interlock for front load washers
• Suits WH7560, WH8060 and WH8560 models

Swapping the door lock

Unplug the washer and make sure the drum is empty. If the door is jammed shut, the lock can often be reached from behind the front panel once the top panel is off. Otherwise, release the outer band on the door seal, fold the seal back, remove the screws holding the lock and unplug its connector. Fit the new lock in the same position and run a short rinse to check it locks and releases.

Questions about this part

My washer's door is locked and won't open. Is it the lock?

Not always. Wait a few minutes after the cycle ends, and make sure there's no water left in the drum, as most front loaders keep the door locked while water is present. If the door still won't release once the drum is empty, the lock is the likely fault.
