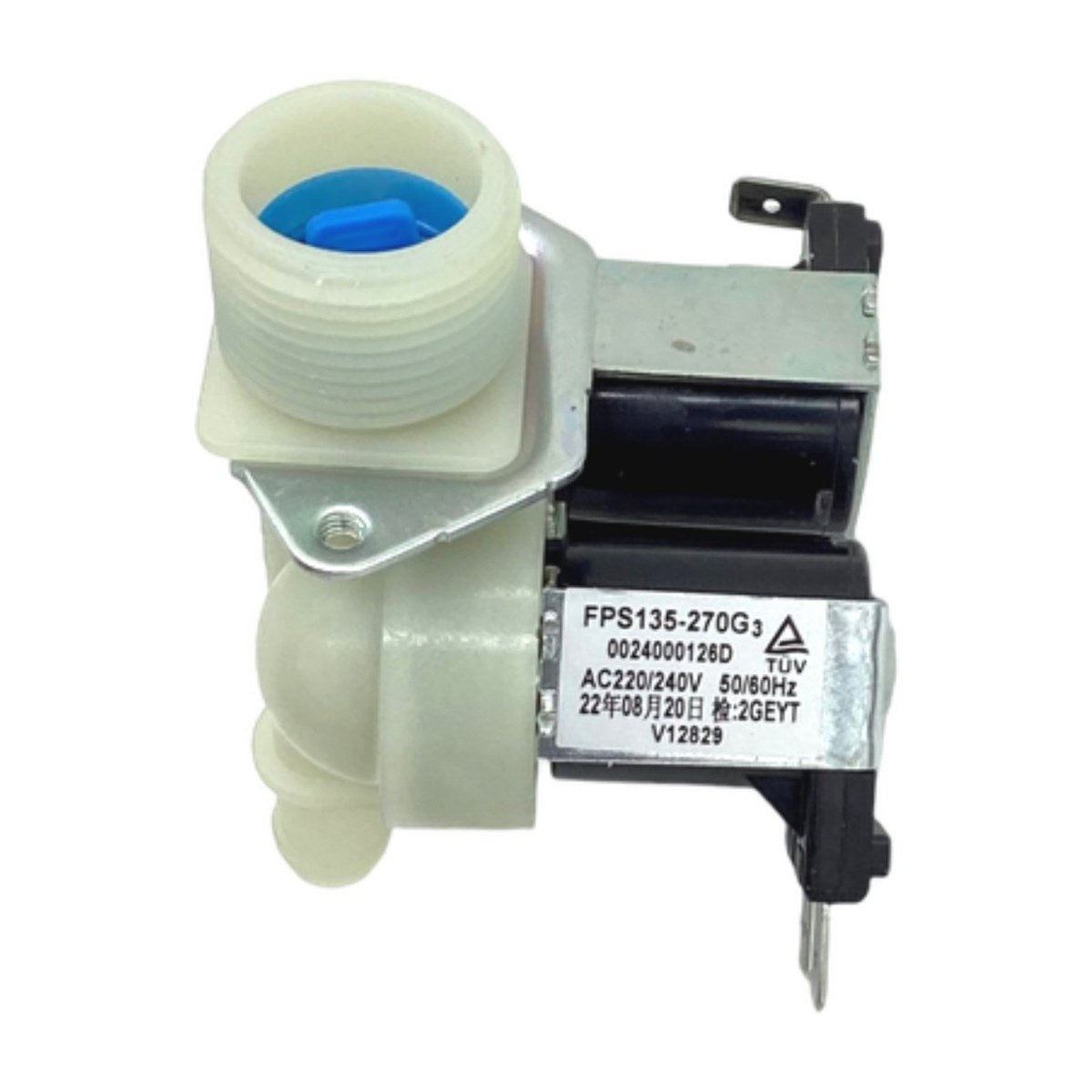

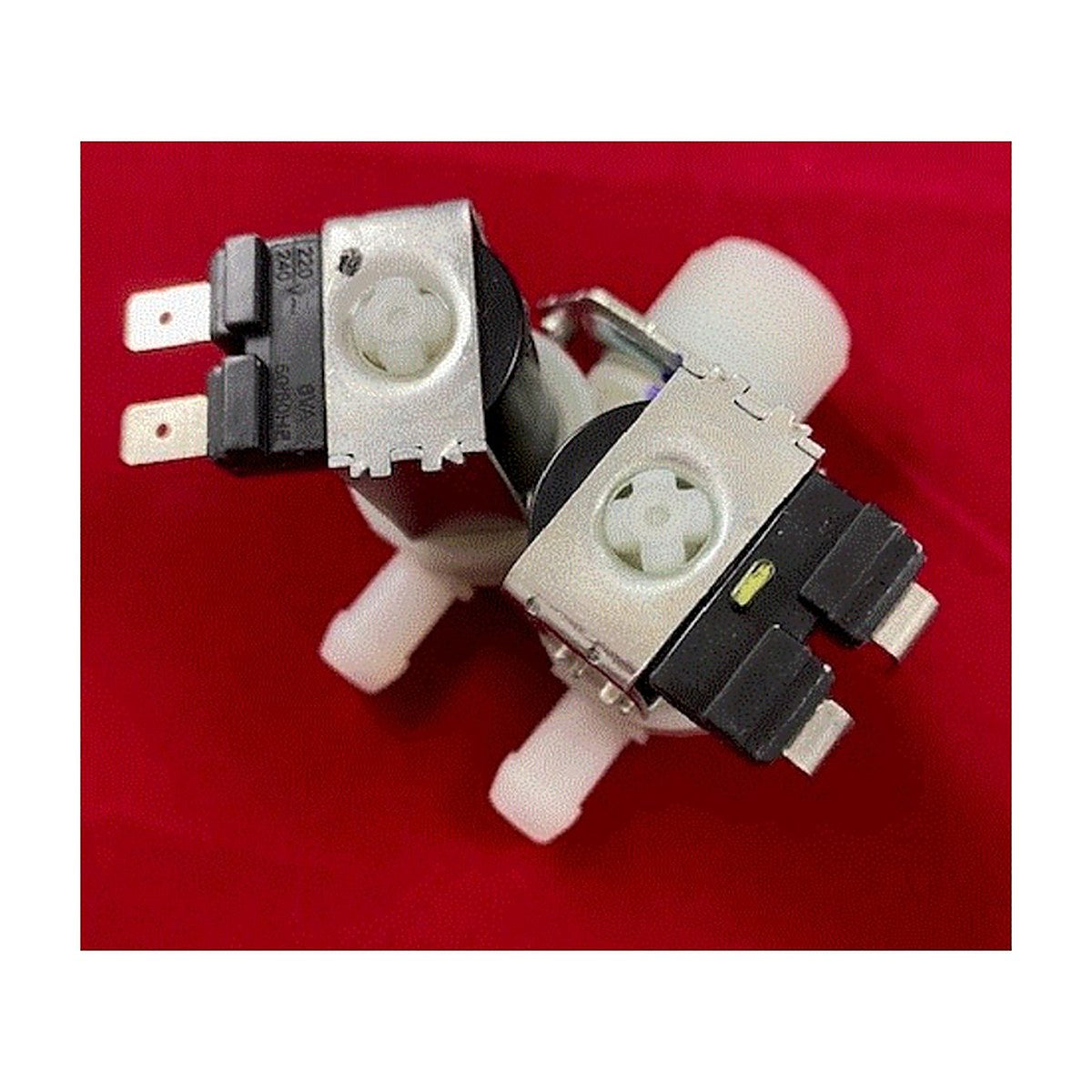

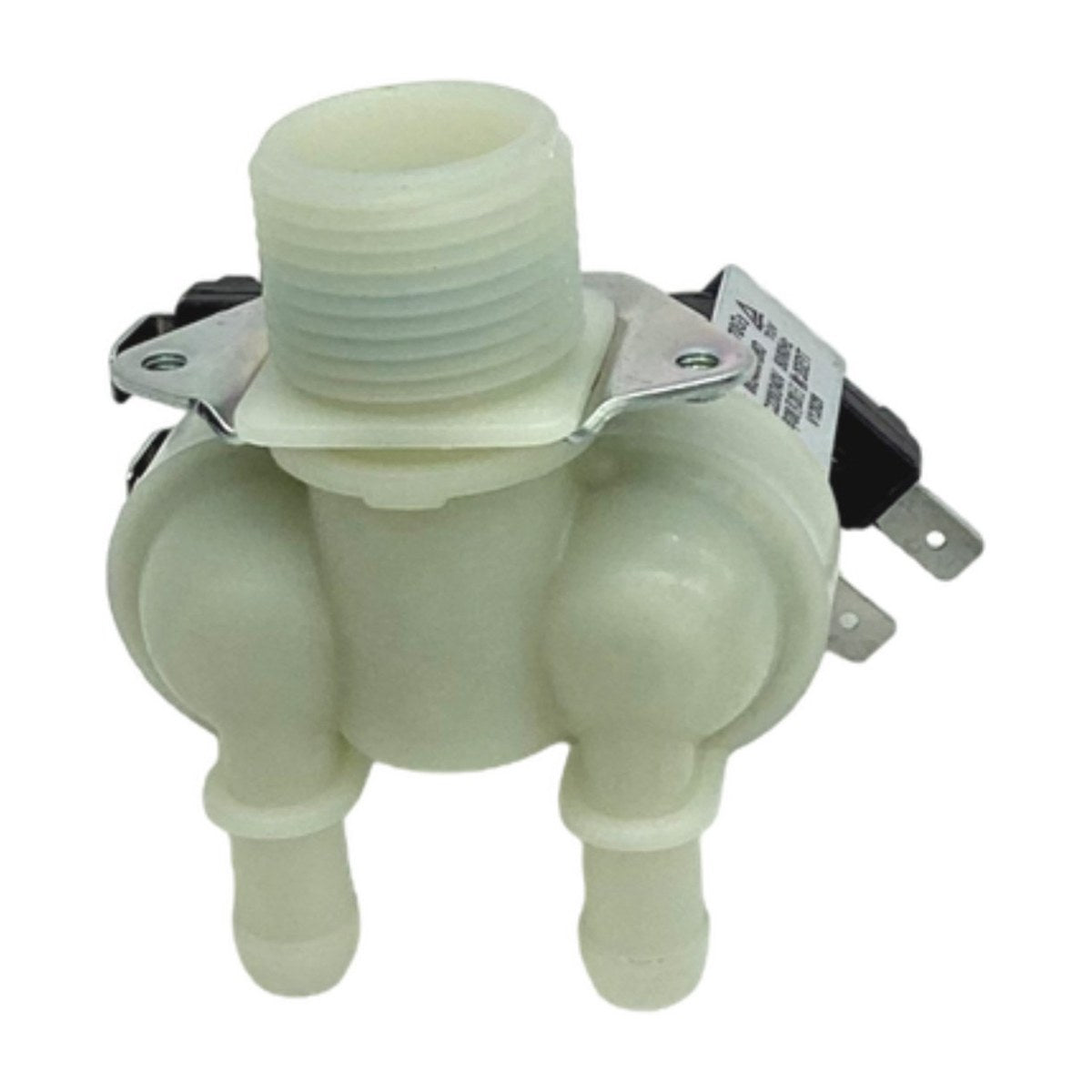

H0024000126D Genuine Dual Cold Water Inlet Valve for Fisher & Paykel Front Load Washing Machines WH7560J3 WH7560P2 WH8060F1 WH8060P2 WH8560J3

H0024000126D is the genuine Fisher & Paykel dual valve for the cold supply on WH series front loaders. It is listed for the WH7560J3 and WH7560P2, the WH8060F1 and WH8060P2, and the WH8560J3, and it's the valve to reach for when one of these machines won't fill, fills slowly or keeps letting water in after it should have stopped.

Front loader won't fill or keeps filling? The inlet valve is often to blame

Mounted at the back of the machine where the cold hose connects, this valve opens when the control board calls for water and shuts off once the drum has enough. Being a dual valve, it has two outlets, which usually let the machine send water to different parts of the detergent drawer. A coil that has burnt out leaves the washer unable to fill, often with a fill error. A valve that won't close fully lets water trickle in even when the machine is off, which can overflow the drum. Detergent or softener left in the drawer after the wash can also point to one side of the valve failing.

Part details

• Genuine Fisher & Paykel part H0024000126D
• Dual outlet cold water inlet valve
• Listed for the WH7560J3 and WH7560P2, plus the WH8060F1, WH8060P2 and WH8560J3
• Mounts where the cold inlet hose connects

Changing the inlet valve

Turn off the cold tap, unplug the machine and disconnect the inlet hose. The valve is usually reached by lifting off the top panel. Label each wire and hose, or take a clear photo, so each outlet feeds the same hose as before. Fit the new valve, reconnect everything and run a rinse to confirm it fills and stops cleanly.

Questions about this part

How do I find my Fisher & Paykel model number?

Look at the label on the back of the machine or around the door opening. Front loaders from this family have model numbers starting with WH, such as WH8060P2. Match yours to the listed models before ordering.
