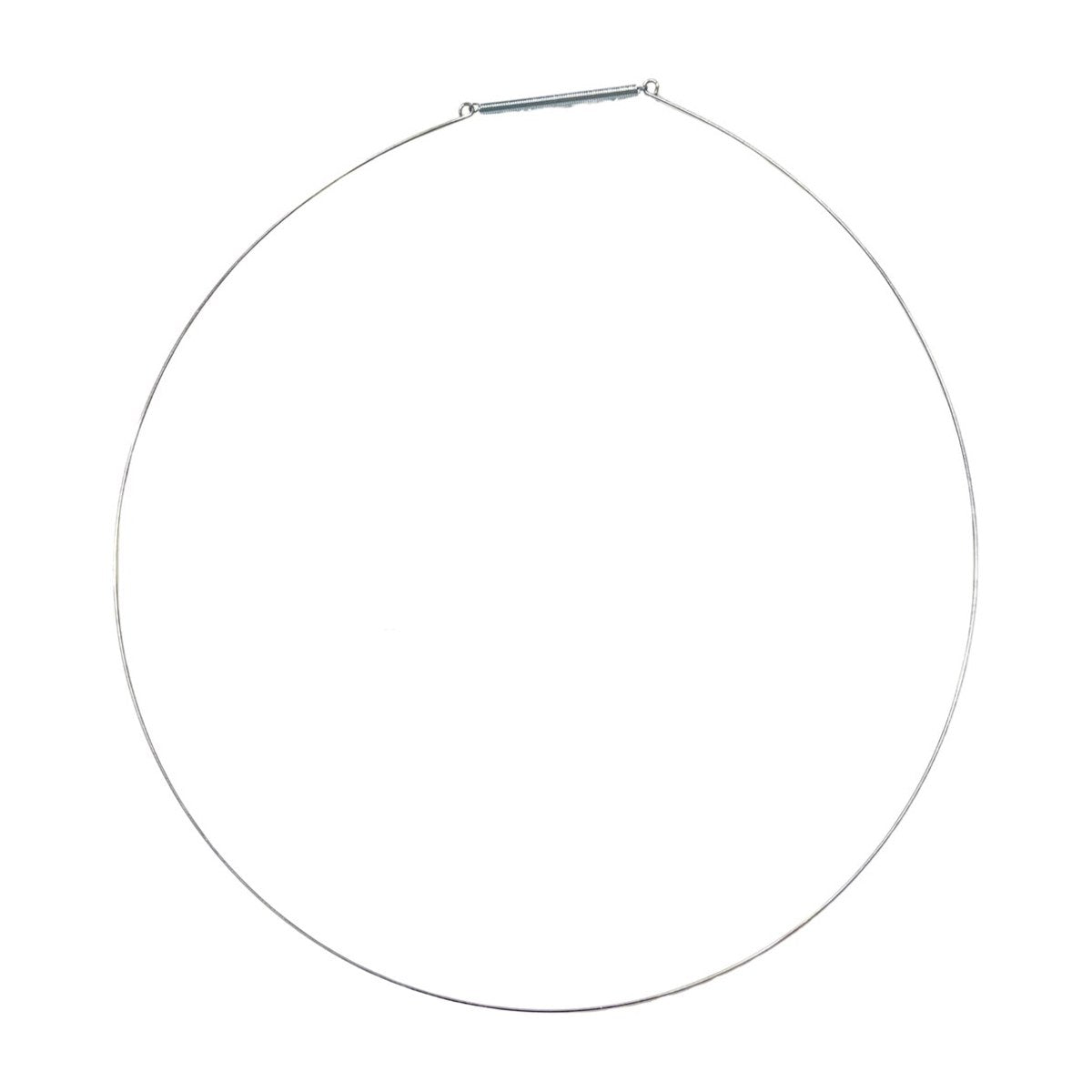

H0020600438 Genuine Door Seal Retaining Clamp for Fisher & Paykel, Haier Front Load Washing Machines WH1060S1 WH1160P3 WH1260F1 HWF12D1W1

Holding the door boot tight is the whole job of H0020600438, a genuine wire retaining clamp for Fisher & Paykel and Haier front loaders. It is listed for the WH1060SG1 and WH1060S1, the WH1160S1, WH1160F2 and WH1160P3, the WH1260F1 and the Haier HWF12D1W1. Replace H0020600438 when the old clamp has stretched, rusted or snapped, or was bent while changing the seal.

Door seal popping off or leaking at the edge

The door seal on a front loader is held in place by wire clamps that grip the rubber in a groove. This retainer keeps the seal pulled tight so it can't creep off its lip during the wash and spin. If the clamp loosens, its spring weakens or it corrodes through, the seal can pull away, leave a gap at the edge and let water dribble down the front of the machine. Clamps are often bent or lost when a seal is removed, so it pays to have a new one on hand.

Part details

• Genuine part H0020600438
• Wire retaining clamp for the door seal
• Listed for Fisher & Paykel WH1060, WH1160 and WH1260 models
• Also listed for the Haier HWF12D1W1

Fitting the clamp

Turn the machine off at the wall. Seat the seal fully in its groove before fitting the clamp, then hook or tension the clamp the same way the original was fitted. A small flat screwdriver helps guide the wire into the groove as you work around. Check the seal sits evenly all the way round and run a short rinse to make sure nothing leaks.

Questions about this part

Is this the clamp at the front or the one on the tub?

It is the door seal retaining clamp listed for the models above. Front loaders use a clamp at each end of the seal, so compare the size and style with the clamp you are replacing, or send your model number through our parts enquiry form and we can confirm which one you need.
