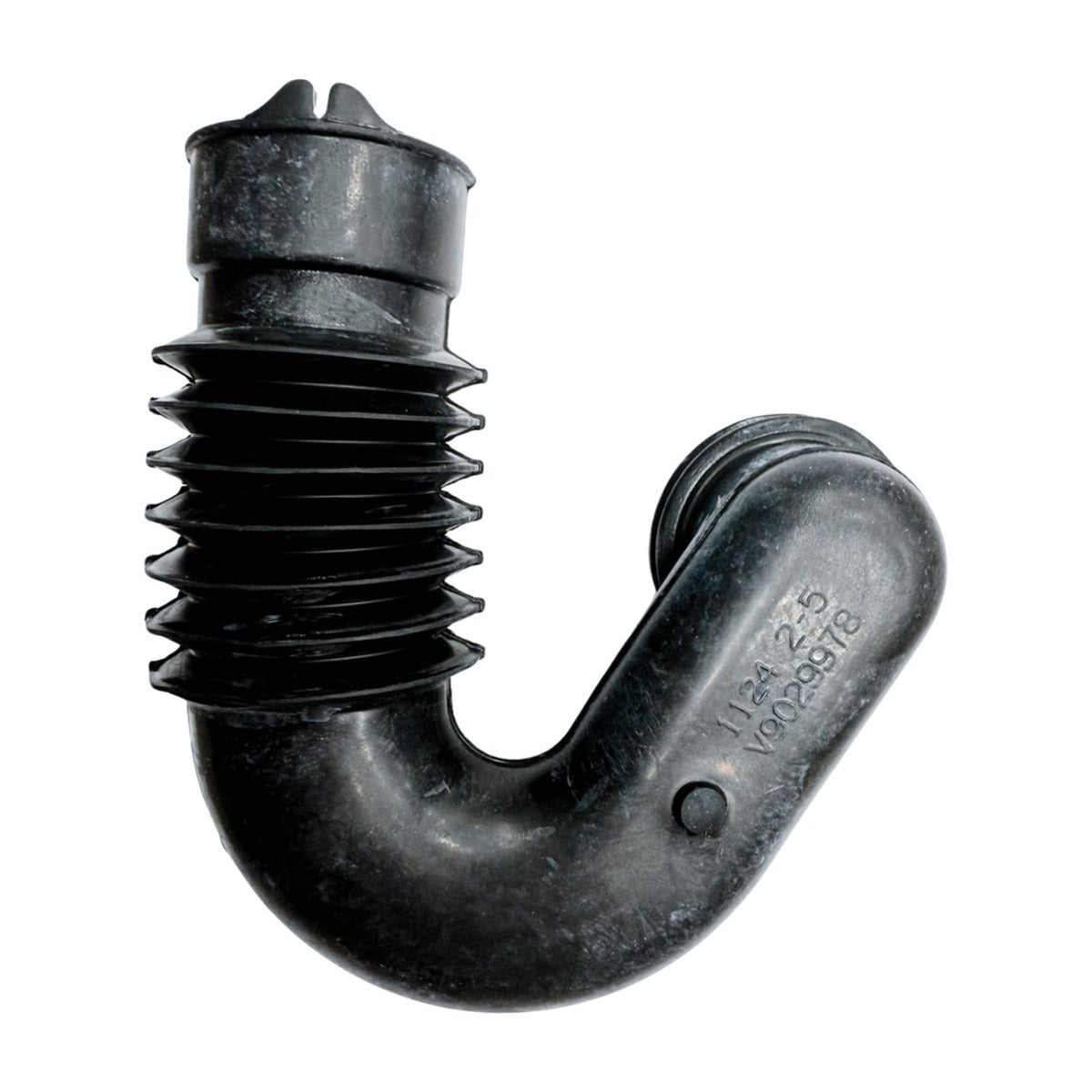

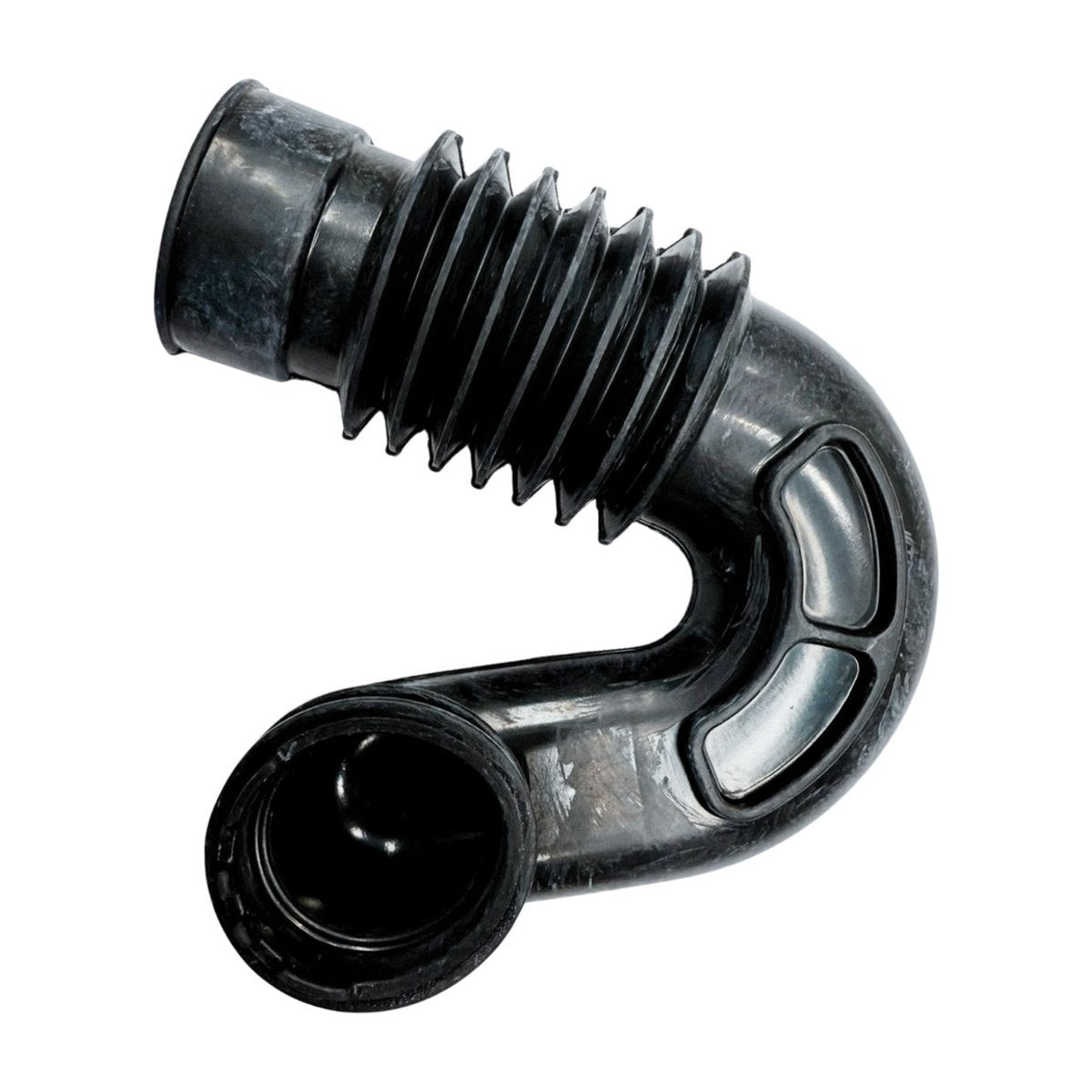

H0020301124 Genuine Connector Hose for Haier, Fisher & Paykel Front Load Washing Machines HWF75AW3 HWF80AN1 HWF85AN1 HWF95AN1 HWF10ANB1

Haier front loaders use H0020301124 as an internal connector hose, and this is the genuine part. It's listed for the HWF80AN1 and HWF80ANB1, the HWF85AN1 and HWF85ANB1, and the HWF95AN1 and HWF95ANB1, as well as the HWF90ANB1, HWF10ANB1 and HWF75AW3. If water is leaking inside the cabinet and you've traced it to this hose, here's the direct replacement.

Tracking down a leak inside a Haier front loader

Washing machines use a handful of short internal hoses to carry water between the inlet, dispenser, tub and pump. This connector hose is one of them. Hoses like this sit close to vibrating parts and warm water, so over the years they can harden, crack or rub through. The usual symptoms are water on the floor under the machine, drips you can see inside the cabinet once a panel is off, or a damp smell from water pooling in the base. Some machines also show a leak or water level fault. Trace the wet area back to its highest point before ordering, so you replace the right hose.

Part details

• Genuine part H0020301124
• Internal connector hose
• Listed for HWF80, HWF85 and HWF95 in AN1 and ANB1 versions
• Also fits HWF90ANB1, HWF10ANB1 and HWF75AW3

Swapping an internal hose

Turn off the power at the wall and close the taps. Have a towel ready, as hoses can hold water. Photograph the hose route and clamp positions, then swap the hose, making sure each end is pushed fully onto its spigot and the clamps sit over the barbs. Refit the panels, run a short cycle and check underneath for any sign of water.

Questions about this part

Is it the same hose for the AN1 and ANB1 versions?

Yes, both the AN1 and ANB1 versions of the HWF80, HWF85 and HWF95 are listed, plus the HWF90ANB1, HWF10ANB1 and HWF75AW3. Check the full model on the label inside the door before ordering.
