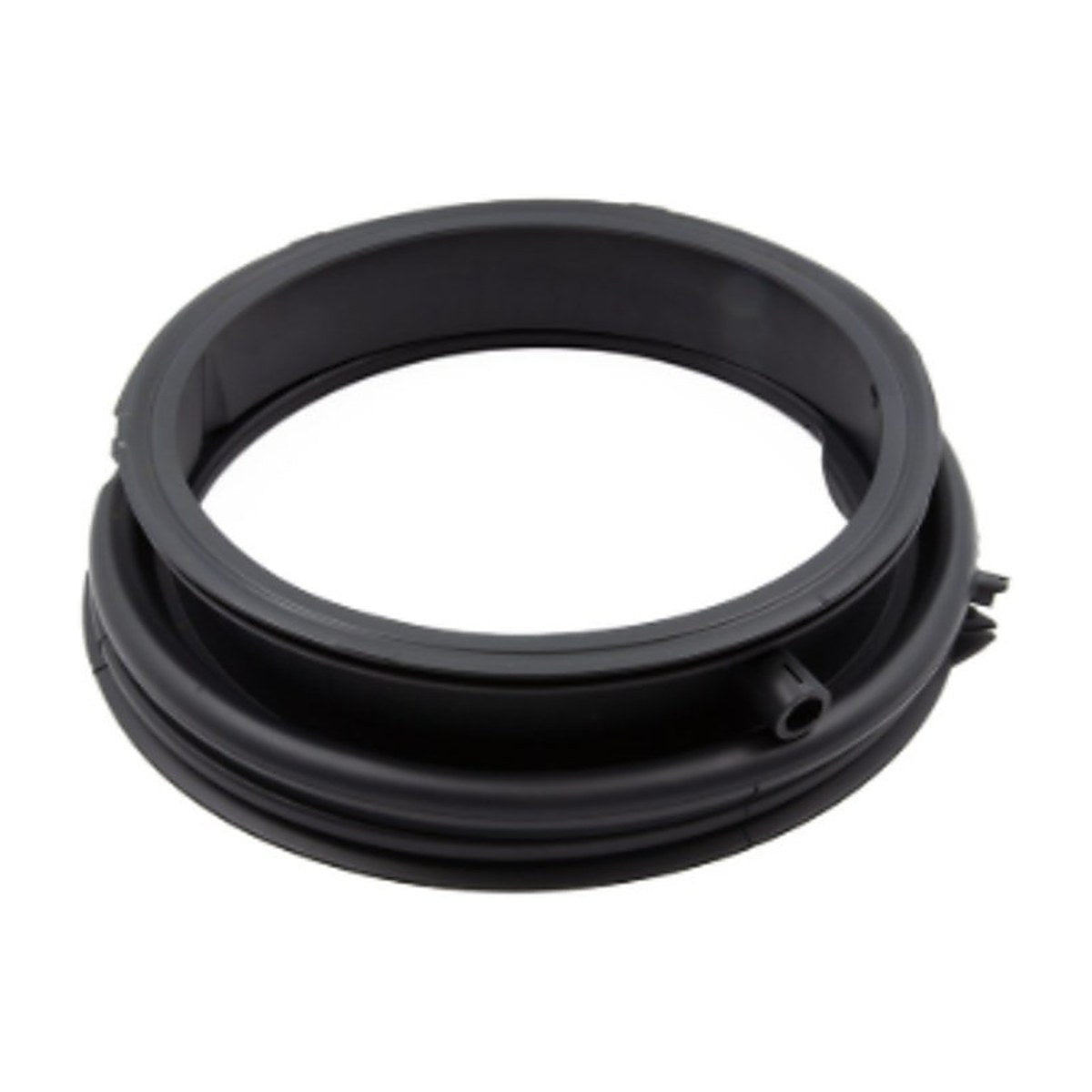

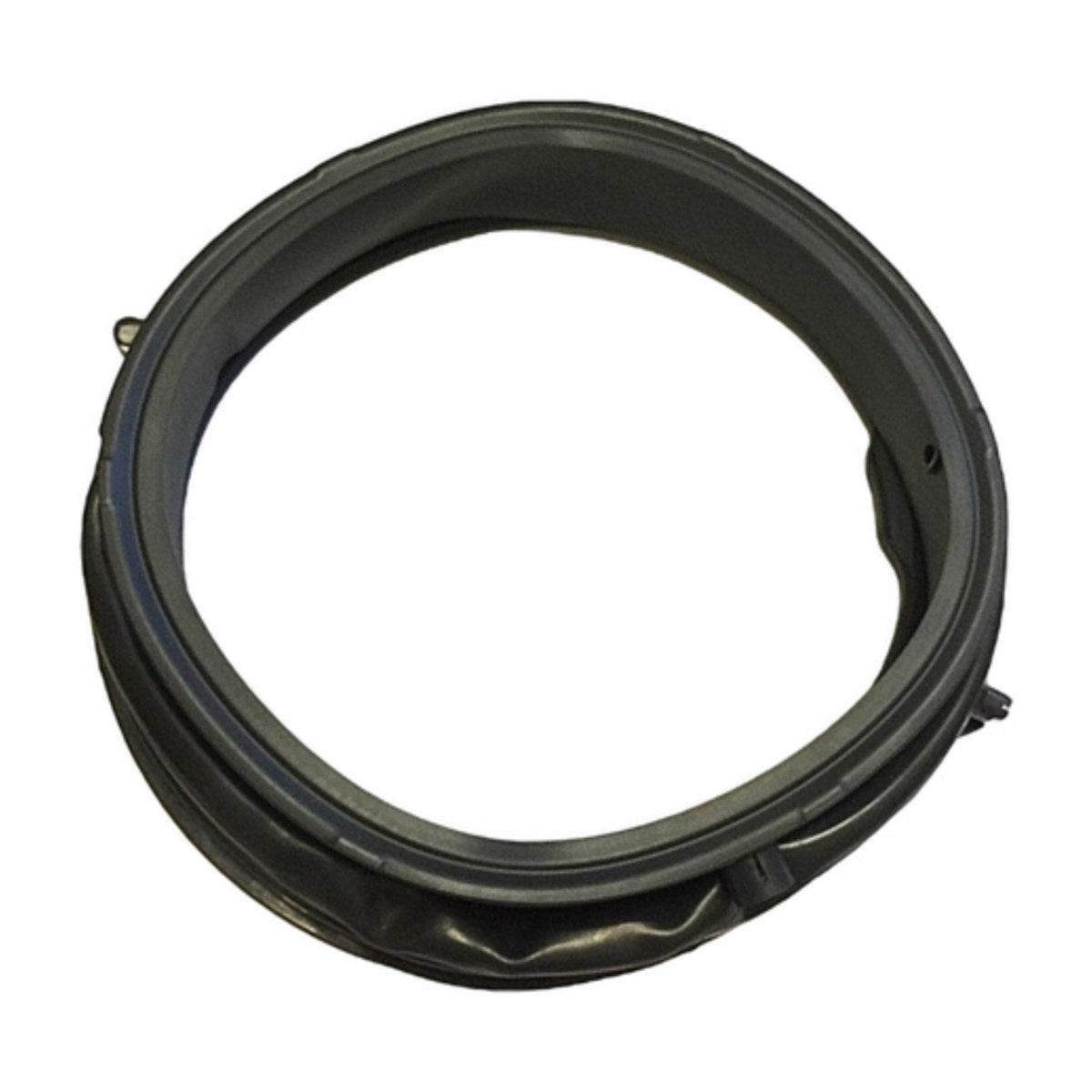

H0020300926C Genuine Door Seal Bellows for Haier Front Load Washing Machines HWF10AN1 HWF10ANB1 HWF80AN1 HWF80ANB1 HWF90AN1 HWF90ANB1 HWX8040DW1

For Haier front loaders that leak at the door or have a torn rubber seal, part H0020300926C is the genuine replacement door bellows. It is listed for the HWF80AN1, HWF90AN1 and HWF10AN1, their ANB1 versions, and the HWX8040DW1. Haier uses several seals with similar numbers, so match the letter at the end and your model number before ordering.

Water leaking from the front of a Haier washer

The door bellows is the folded rubber boot that joins the front panel to the drum opening. When the door shuts against it, it forms a watertight seal while the drum spins and tumbles. Rubber eventually splits in the folds, gets nicked by coins, underwire and zips, or breaks down with mould and detergent build up. Water on the floor below the door, a visible tear, black mould that won't clean off and a musty smell are the usual signs. A leak at the door can also come from a blocked filter or too much detergent, so rule those out too.

Part details

• Genuine Haier part H0020300926C
• Door seal bellows for front load washing machines
• Suits Haier HWF80AN1 and HWF90AN1 front loaders plus their ANB1 versions
• Also listed for HWF10AN1, HWF10ANB1 and HWX8040DW1

Fitting a front loader door seal

Unplug the washer and turn off both taps. Remove the outer clamp band holding the seal to the front panel, peel the seal back, then release the inner clamp at the drum. Mark the seal's position before removal, as many have an alignment mark or drain hole that must sit at the bottom. Clean the drum lip, fit the new seal and clamps, then run a short rinse and check for drips.

Questions about this part

Is H0020300926C the same as H0020300926P?

No. They are different Haier door seals for different models. H0020300926C is listed for the HWF80AN1, HWF90AN1, HWF10AN1, their ANB1 versions and the HWX8040DW1, so check your model number on the label inside the door opening.
