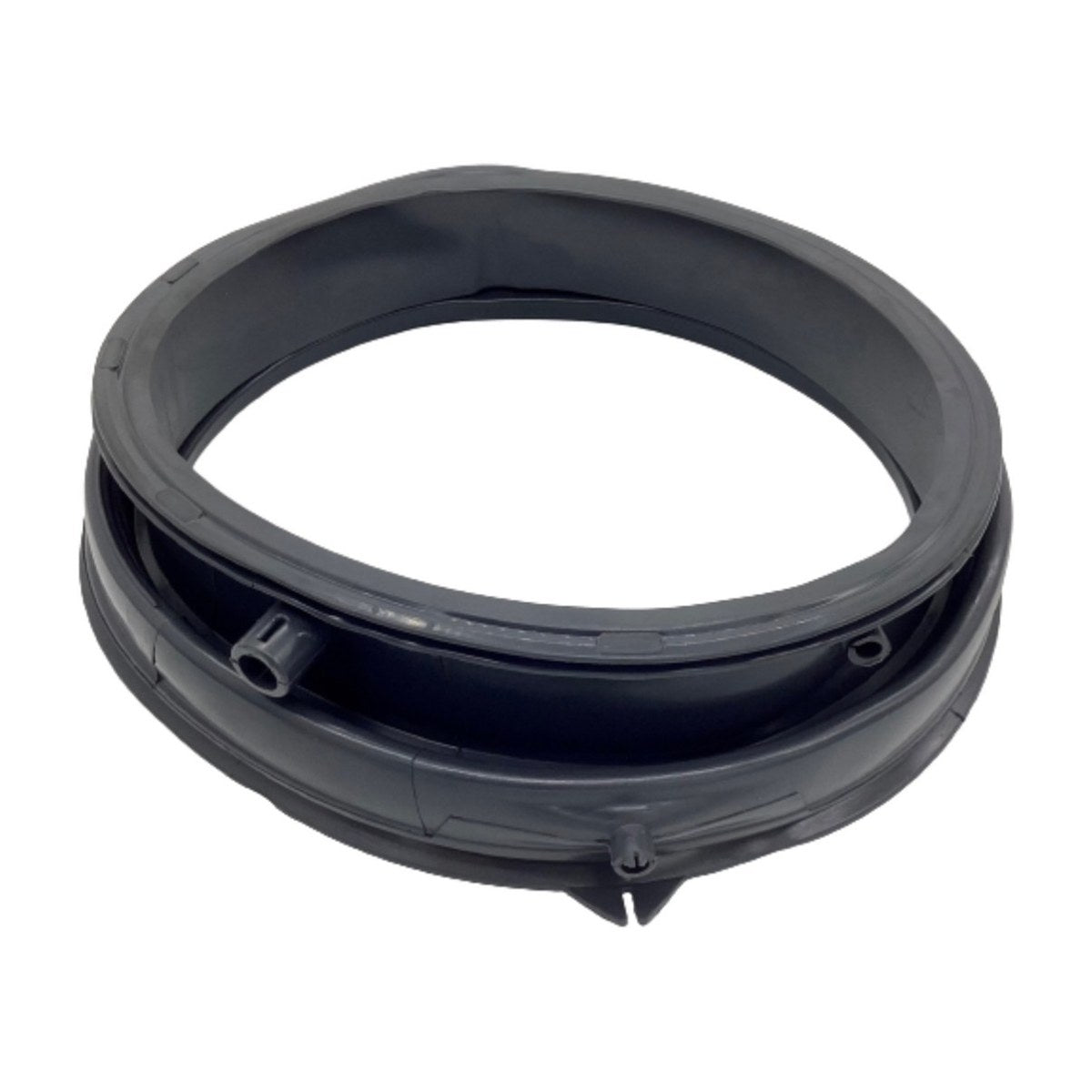

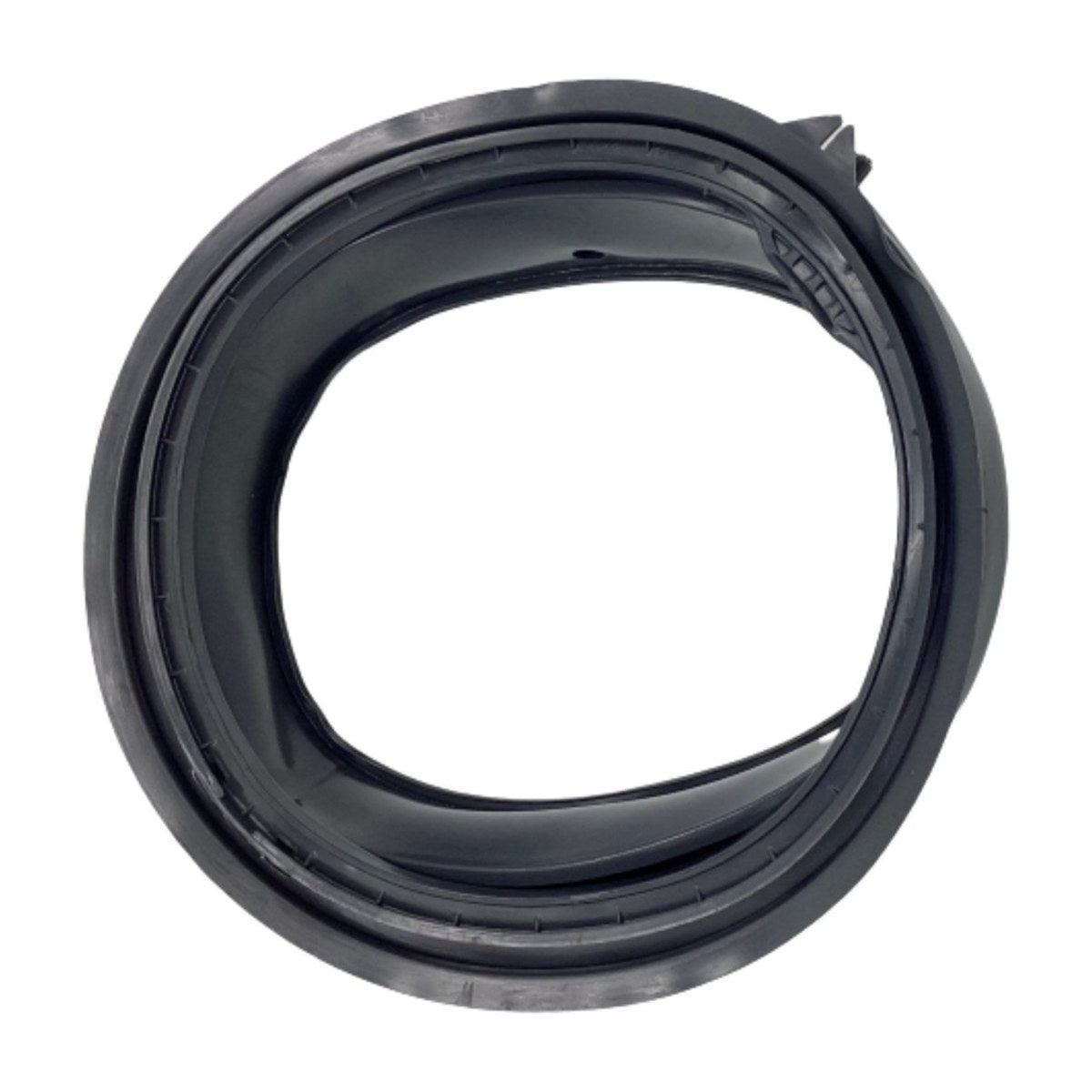

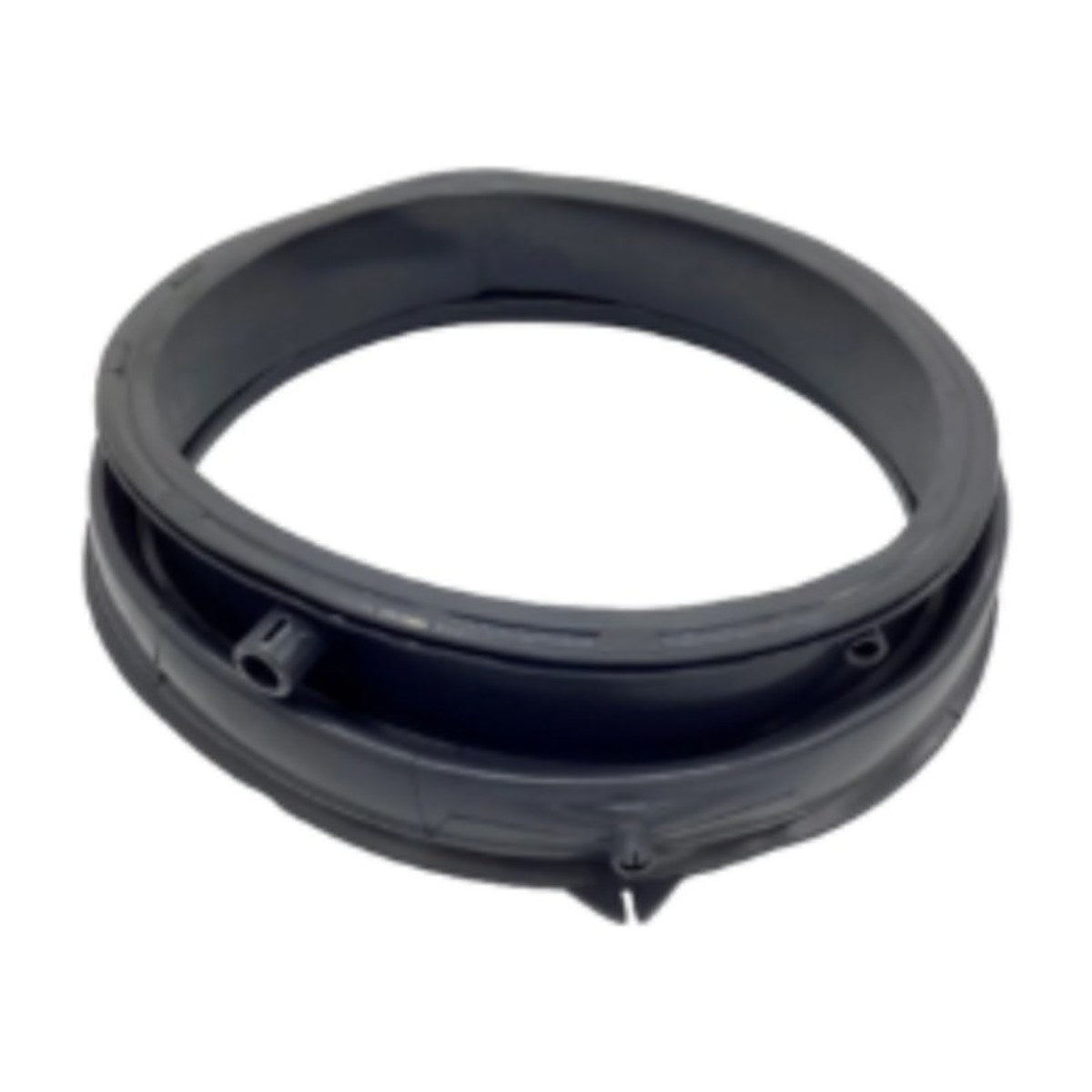

H0020300601M Genuine Door Seal Bellows for Fisher & Paykel Front Load Washing Machines WH8560P3 WH9060P3 WH1060P3 WH1060P4 WH8060P3 WH2424F1

Water on the floor in front of a Fisher & Paykel front loader often traces back to the door seal. H0020300601M is the genuine door bellows for WH series machines, including the WH8060P3 and WH8560P3, the WH9060P3 and WH9060P4, the WH1060P3 and WH1060P4, and the WH2424F1 and WH2424P1. It's the rubber boot that joins the drum opening to the front panel.

Leaking front loader door seal

The bellows forms a watertight seal between the outer tub and the door glass while flexing as the drum moves during spin. Constant moisture, detergent residue and the odd forgotten coin or bra wire wear it out over time. Look for splits or holes in the folds, black mould that won't clean off, a musty smell from the door, or water dripping from under the door during a wash. A torn seal can also let water run down inside the cabinet, so it's worth replacing promptly.

Part details

• Genuine part H0020300601M
• Door seal bellows for front load washers
• Rubber boot that seals between the tub and the door
• Fits Fisher & Paykel WH series models listed

Fitting a front loader door seal

Switch off and unplug the washer, then turn off the taps. Release the outer clamp ring at the front, then work around the inner clamp that holds the seal to the tub. Some models need the front panel removed for access. Line up any alignment marks on the seal before refitting the clamps. Run a rinse cycle and watch the door closely for leaks.

Questions about this part

How do I confirm this seal fits my washer?

Check the model number and product code on the label inside the door opening or on the back of the machine. H0020300601M is listed for the WH8060P3 and WH8560P3, the WH9060P3 and WH9060P4, the WH1060P3 and WH1060P4, and the WH2424F1 and WH2424P1.
