H0020300601K Genuine Door Seal Bellows for Fisher & Paykel, Haier Front Load Washers WH7560P1 WH8560P1 WH8060P1 HWF75AW1 HWF85AW1 HWF10BW1

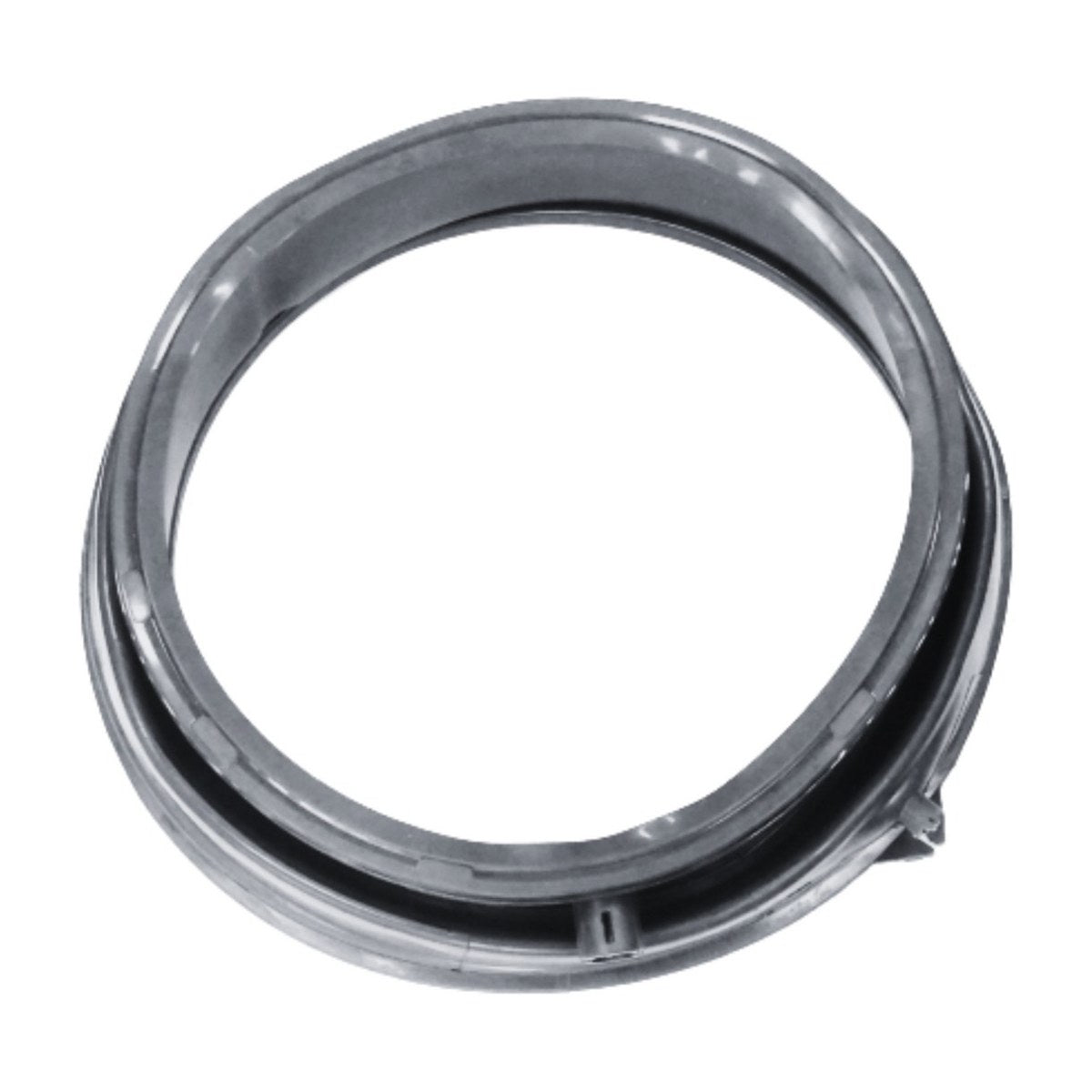

This is the genuine door seal, or bellows, part H0020300601K, for a range of Fisher & Paykel and Haier front loaders. On the Fisher & Paykel side it's listed for the WH7560 P1 and J1, the WH8560 P1 and P2, and the WH8060P1, WH8060F1 and WH8560F1. Haier models include the HWF70BW1, HWF75AW1 and HWF85AW1 through to the HWF90BW1 and HWF10BW1.

Front loader leaking at the door or smelling musty?

The bellows is the flexible boot that joins the drum opening to the front of the cabinet. It seals against the door glass during the wash and flexes as the tub moves. Over time, coins, underwire and zips can tear it, and constant damp lets black mould take hold in the folds. Leaks around the door, water on the floor after a cycle, a musty smell that won't clear, or splits you can see when you pull back the lower fold all point to a worn seal. Fitting a new one is also a chance to clean behind it.

Part details

• Genuine part H0020300601K
• Front loader door seal bellows
• Listed for the WH7560 in P1 and J1 builds and the WH8560 in P1 and P2
• Also fits WH8060P1, WH8060F1 and WH8560F1
• Suits Haier HWF70BW1, HWF85DW1 and HWF90BW1 among others

Fitting a front loader door seal

Switch off at the wall, turn the taps off and make sure the drum is empty. The seal is usually held by a clamp ring on the cabinet side and a larger band on the tub side, and reaching the tub band can be fiddly. Line up the marks on the new bellows with the top of the tub opening and position any drain holes at the bottom. Run a short wash and check for drips.

Questions about this part

My model ends in J1. Does that matter?

For the WH7560, both the P1 and J1 versions are listed. The letters and numbers at the end of a model code mark different builds, and parts can change between them, so always check the full code on the label inside the door.
