H0020300601H Genuine Front Loader Door Seal Bellows for Fisher & Paykel Washing Machines WD8560F1

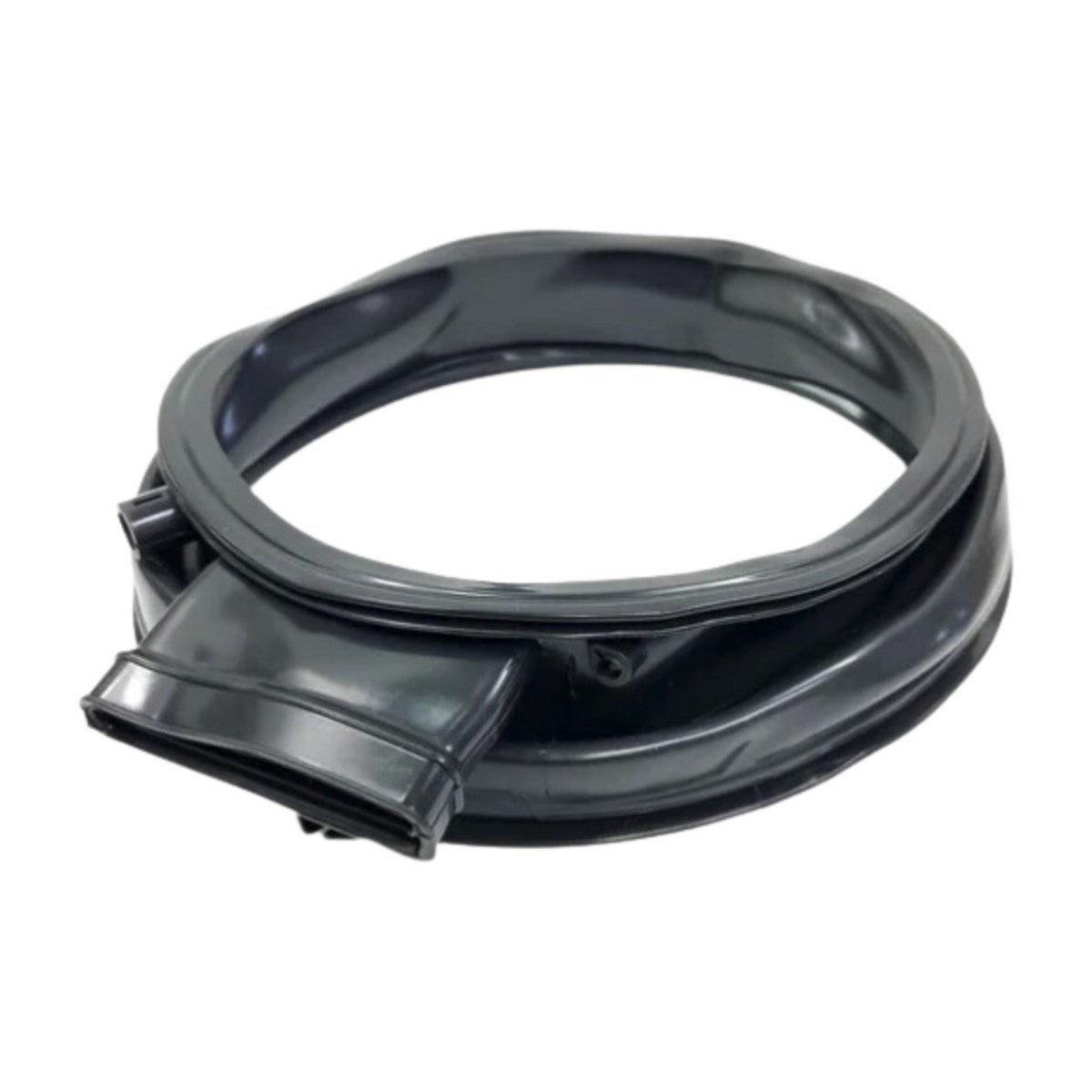

Door bellows H0020300601H is a genuine Fisher & Paykel seal for the WD8560F1 front loader. It is the folded rubber boot that joins the drum opening to the cabinet and seals against the glass door. Fisher & Paykel uses several similar door seals with different letter endings across its front load range, so check that the full number on your old seal, or your model, matches before ordering.

Water leaking from the front of your F&P washer?

Every wash puts the door bellows under water pressure, detergent and the pull of the spinning drum. Over time the rubber hardens or splits in the lower fold, and objects like coins, hair clips and underwire can tear it. Black mould in the folds that will not clean off is also common. Signs include water running down the front of the machine, a puddle near the feet, a damp smell that persists after a hot wash, and visible tears when you pull back the lip of the seal.

Part details

• Genuine Fisher & Paykel part H0020300601H
• Front load door bellows
• Listed for the WD8560F1
• Check the letter ending against your old seal

Changing the bellows

Disconnect the power at the wall and turn off both taps. Remove the outer spring clamp that holds the seal to the front panel, peel the seal off the lip and push it into the drum. Depending on the model, the inner clamp at the tub can be reached through the door or by taking the front panel off. Line up any locating marks on the new seal with the tub, refit both clamps and run a rinse cycle to check for leaks.

Questions about this part

My model is not WD8560F1. Will this seal fit?

This seal is only on file for the WD8560F1. Fisher & Paykel front loaders use a number of similar looking bellows, so send your model and serial number through the parts enquiry form and we will confirm the right one.
