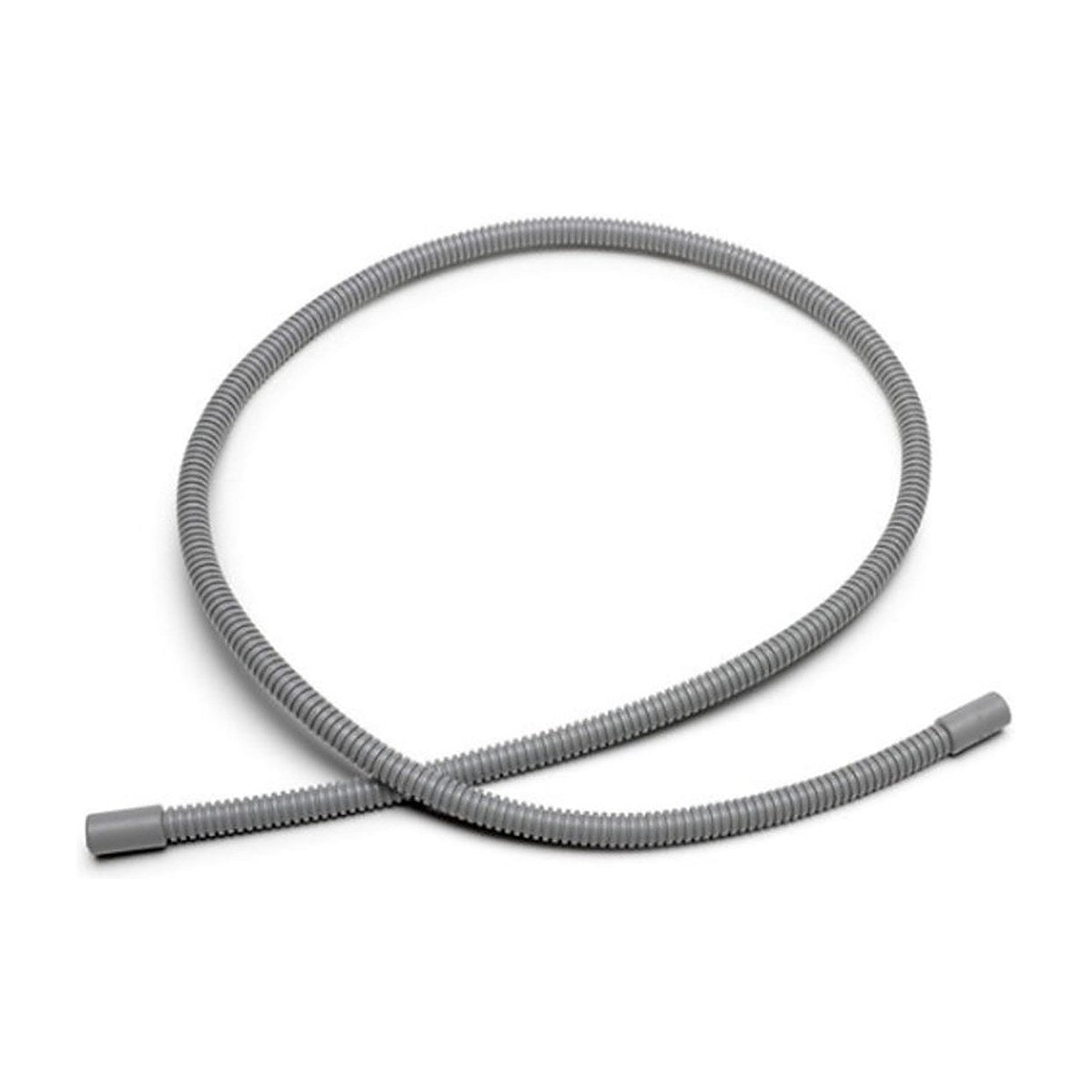

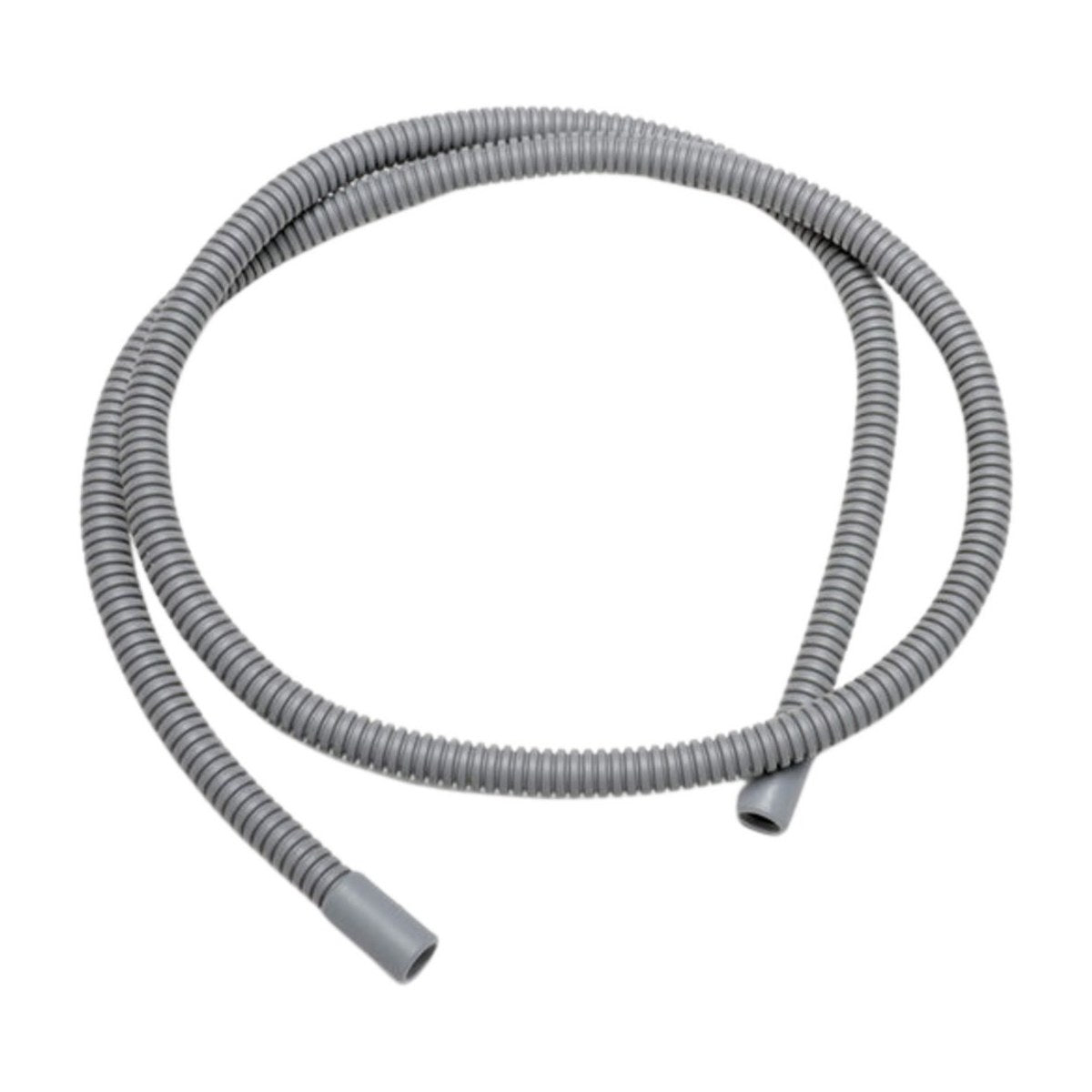

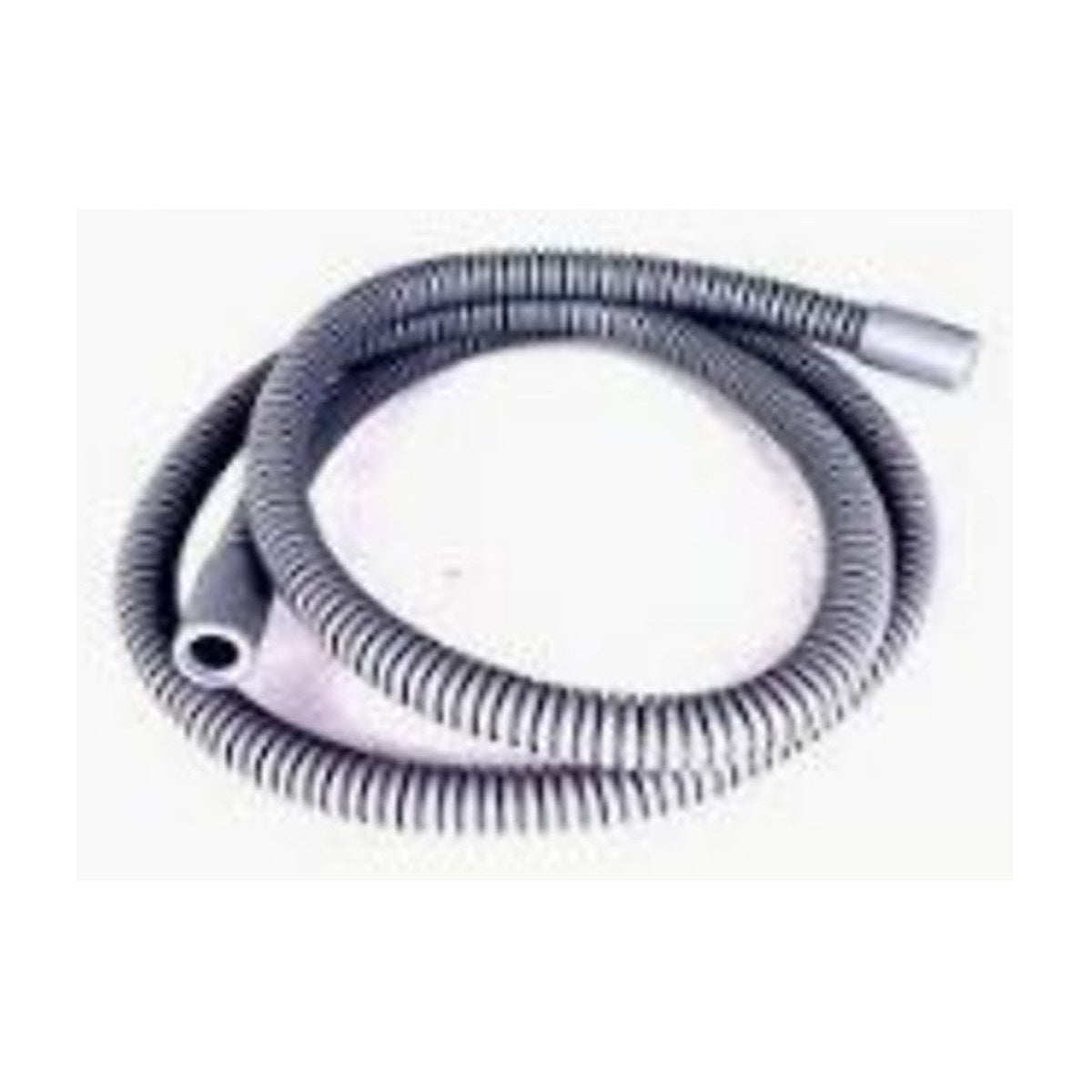

H0020300480Q Genuine Condensation Drain Hose for Fisher & Paykel, Haier Dryers DE8060P1 DH8060P1 DH9060P1 DH9060FS1 HDHP80A1 HDC80E1

H0020300480Q is the genuine hose that carries condensed water away from a group of Fisher & Paykel and Haier condenser and heat pump dryers. It's listed for the DE8060P1, DE8060P2 and DE5060P2, the DH8060P1 and DH8060P3, the DH9060P1, DH9060P2 and DH9060FS1, and the Haier HDC80E1, HDHP80A1 and HDHP80E1. It's the short hose that pushes onto the dryer's drain spigot so the collected water can run away instead of filling the container.

Dryer leaking water or drain hose split

Condenser and heat pump dryers pull moisture out of the clothes and collect it as water. That water either goes into a container you empty by hand or, with this hose fitted, drains straight to a sink or standpipe. A hose that's split, perished or loose on the spigot will drip water behind or under the dryer, and a kinked or blocked one can cause the dryer to stop with a full water or drain warning. This listing is the short hose that fits onto the spigot. To extend the run, a separate connector, H0020203054, lets you join another hose.

Part details

• Genuine part H0020300480Q
• Short condensation drain hose that fits onto the dryer spigot
• Connector for joining an extension hose is H0020203054
• Listed for Fisher & Paykel DE and DH dryers
• Also listed for Haier HDC80E1, HDHP80A1 and HDHP80E1

Connecting the drain hose

Unplug the dryer before moving it. Find the drain spigot at the back and pull off the old hose, catching any water in a tray. Push the new hose fully over the spigot and route it to the drain point your user manual recommends, keeping it free of kinks, dips and sharp bends. Run a load and check the joint stays dry.

Questions about this part

Is this hose long enough to reach my laundry trough?

It's a short hose made to fit onto the dryer's drain spigot. If you need a longer run, use the connector H0020203054 to join an extra length of hose, and keep the whole run free of kinks.
