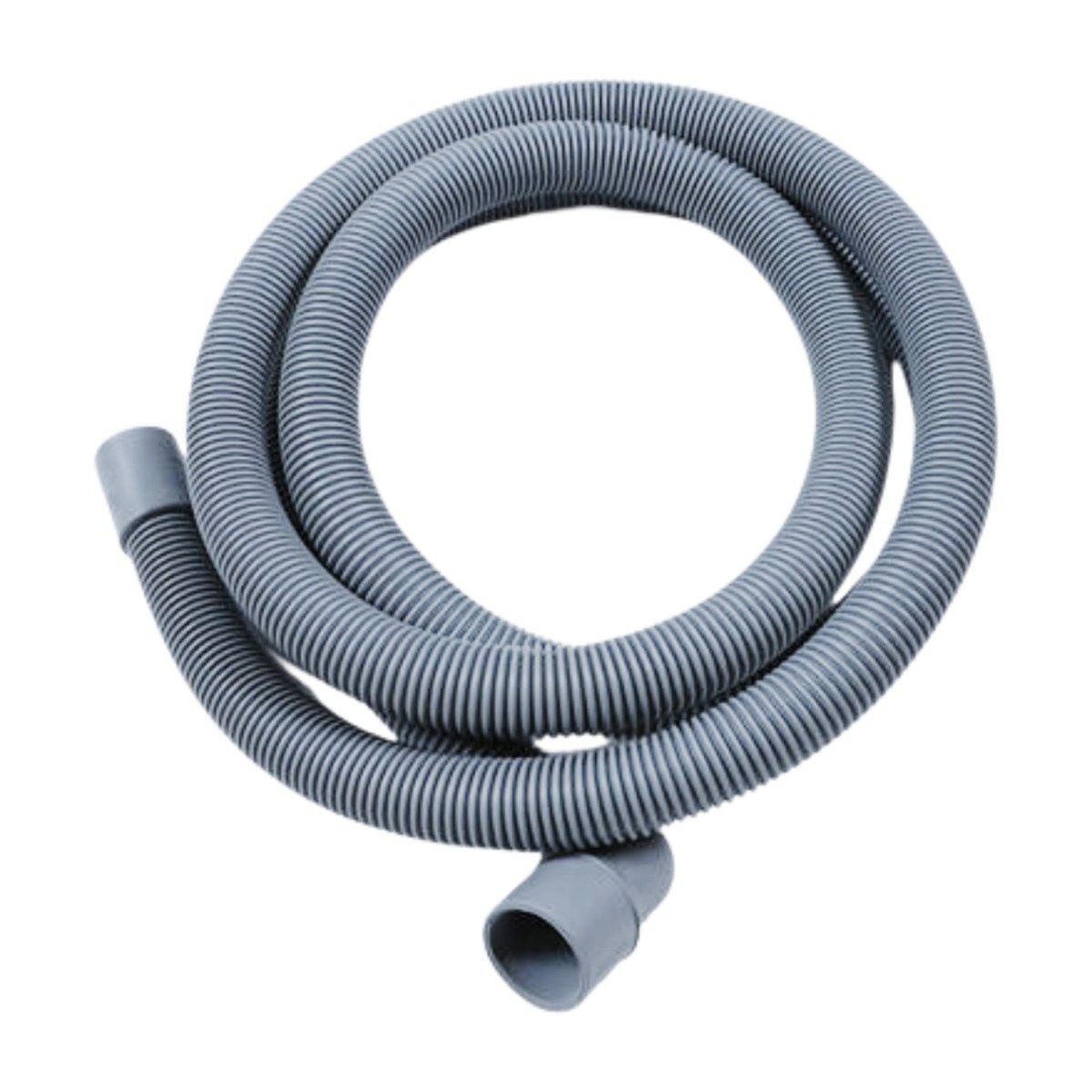

H0020300148M Genuine Drain Hose for Fisher & Paykel, Haier Washing Machines WH1160H1 WH1160HG1 WH1260H1 WH1260HG1

Fisher & Paykel WH1160H1, WH1160HG1, WH1260H1 and WH1260HG1 washers take this genuine drain hose, part number H0020300148M. It carries waste water from the pump to your standpipe or laundry tub. The same part is listed under both the Fisher & Paykel and Haier names, so check the number on your old hose or your model before ordering.

Water leaking from the washing machine drain hose?

Every drain and spin pushes water through this hose under pump pressure. Hoses that have been kinked behind the machine, rubbed against the wall or perished with age can split or crack, leaving puddles at the back of the laundry that are easy to miss until the floor is damaged. A crushed or partly blocked hose can also slow drainage, so the machine takes longer to empty or stops with a drain fault. If the hose is soft, brittle or marked by old leaks, replace it.

Part details

• Genuine Fisher & Paykel and Haier drain hose H0020300148M
• Listed for WH1160H1, WH1160HG1, WH1260H1 and WH1260HG1
• Carries water from the drain pump to the standpipe or tub

Fitting the drain hose

Switch the washer off at the wall, unplug it and close both taps. Drain out any water left in the machine, then put a bucket and towels under the hose connection at the pump. Release the clamp, swap the hose over and refit the clamp firmly. Route the new hose without kinks, secure the outlet end in the standpipe or tub, then run a spin to check for leaks.

Questions about this part

Can I join an extension onto the drain hose?

A hose of the correct length is the better option. Every extra join is another place that can leak, and a longer run can make the pump work harder. If your outlet is out of reach, send your model and layout through the parts enquiry form.
