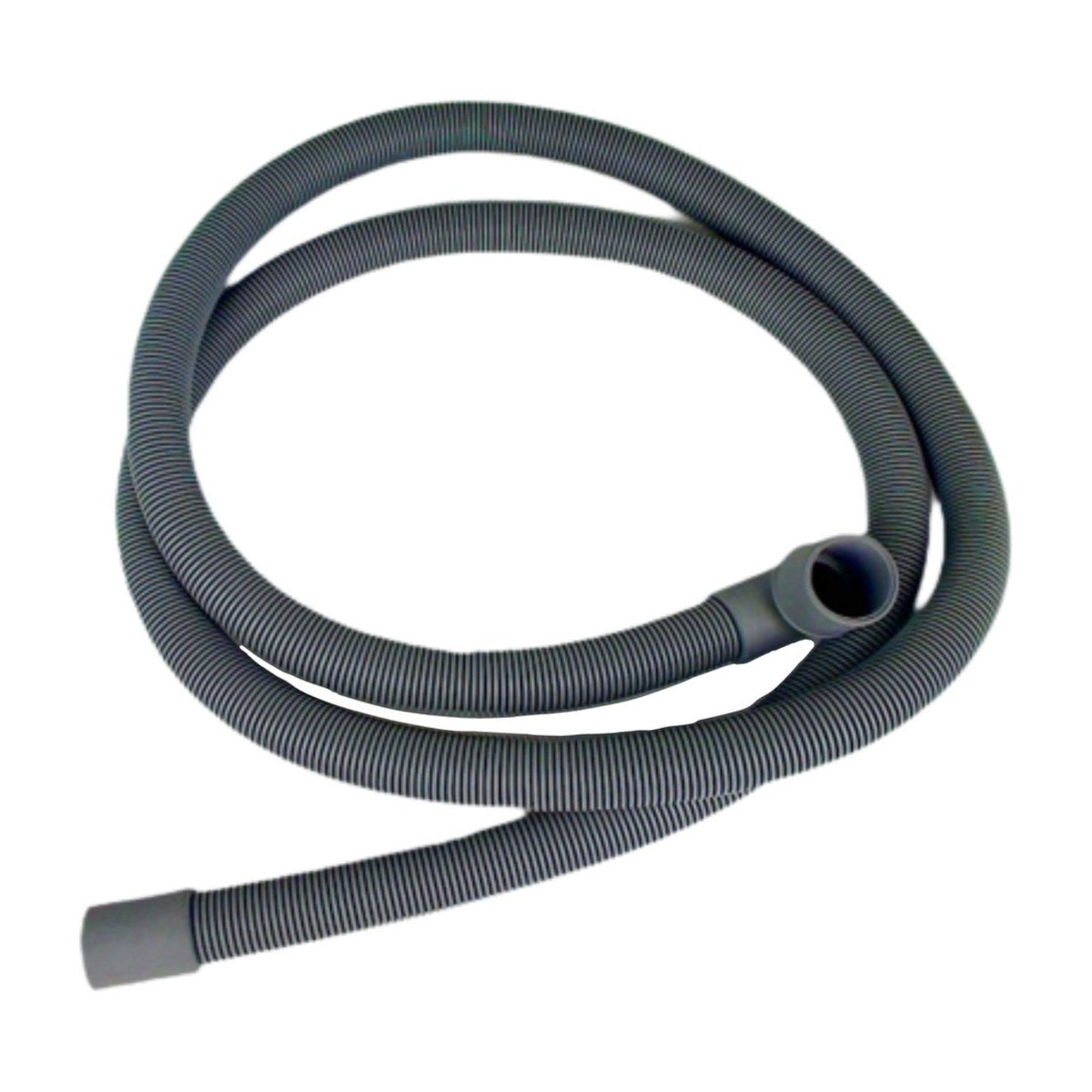

H0020300148F Genuine Drain Hose for Haier, Fisher & Paykel Front Load Washing Machines HWF12D1W1 WH1060SG1 WH1060S1 WH1160S1 WH1260F1 WH1060P1

Haier and Fisher & Paykel front loaders share this genuine drain hose, part H0020300148F. It is listed for the Haier HWF12D1W1 and for Fisher & Paykel models including the WH1060P1 and WH1060S1, the WH1060SG1 and WH1160S1, the WH1160F2 and WH1160P3, and the WH1260F1 and WH1260P1. Order it when your old hose has split, perished or been crushed.

Water on the laundry floor or washer slow to drain?

The drain hose carries waste water from the pump at the bottom of the machine to the laundry tub or standpipe. Because it's flexible, it gets pushed against walls, crushed behind the machine or stretched when the washer is moved. Splits near the ends or under the clamp cause puddles that only appear during draining and spin, while kinks or a partial blockage slow draining or stop the machine with a drain error. Old hoses can also go hard and crack. If the hose is damaged anywhere along its length, a whole new hose is the reliable fix.

Part details

• Genuine part H0020300148F
• Drain hose for front load washing machines
• Listed for Haier HWF12D1W1 and Fisher & Paykel WH series models

Swapping the drain hose

Turn the washer off at the wall and shut both taps. Drain the machine through the pump filter first if you can, as the old hose holds some water. Release the hose where it joins the back of the machine, pull it free and fit the new one in its place. Secure the outlet end in the tub or standpipe so it can't jump out, and keep it free of kinks.

Questions about this part

Can I extend the hose instead of replacing it?

If the hose is damaged, replace it. Extending a sound hose is possible with a joiner, but long or high runs make the pump work harder. Keep within the drain height and length limits in your washer's manual.
