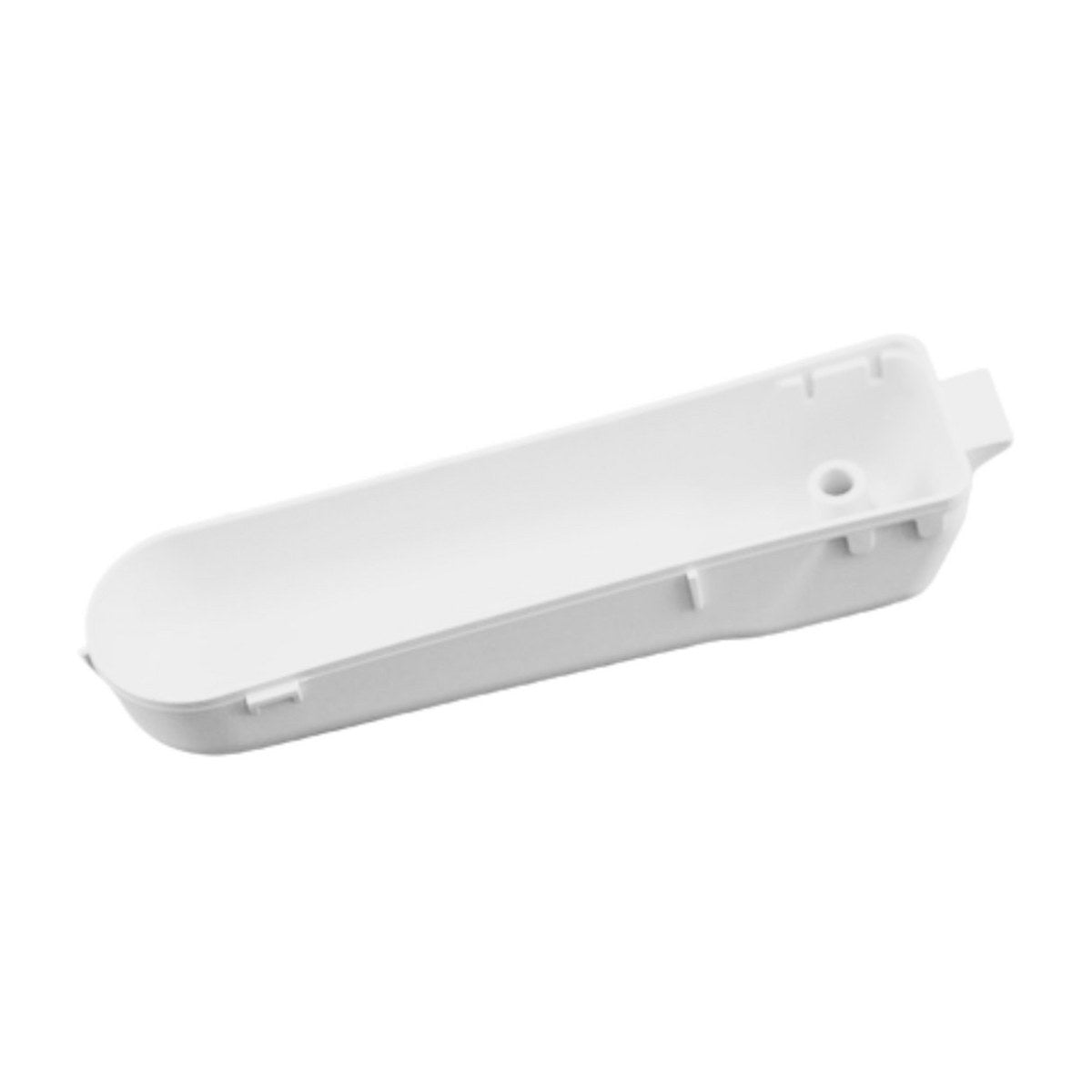

H0020205095 Genuine Detergent Dispenser Box for Fisher & Paykel Front Load Washers WH8060P2 WH8560P2 WH7560P2 WH1060P3 WH9060P3

The pull out drawer you load with powder, liquid and softener is the dispenser box, and H0020205095 is the genuine Fisher & Paykel version for these front loaders. It's listed for the WH7560P2 and the WH8060 and WH8560 F1, P2 and P3 builds, along with the WH9060 and WH1060 in P3 and P4 versions. Replace it if the drawer is cracked, a divider or cap has broken, or it won't slide in and out properly.

Detergent left behind or dispenser leaking?

As the machine fills, water flows through the dispenser box and flushes each compartment into the drum at the right stage of the cycle. A cracked box or a broken divider can mix detergent and softener too early, leave powder caked in the drawer, or let water spill out the front of the machine. Softener left behind after the rinse, or slimy build up that won't wash out, can also come back to a damaged box. Before replacing it, pull the drawer out and clean the box and housing thoroughly, since a blocked inlet can cause the same symptoms.

Part details

• Genuine Fisher & Paykel part H0020205095
• Detergent dispenser box (drawer)
• Listed for WH8060 and WH8560 F1, P2 and P3 builds
• Also fits WH9060 and WH1060 P3 and P4, plus WH7560P2

Changing the dispenser drawer

Wait until the cycle has finished and the machine is off. Pull the drawer out to its stop, press the release tab, often marked on the softener compartment, and lift it free. Clean out the housing while it's open, then slide the new box in until it clicks into place. Run a rinse to check water flushes through every compartment properly.

Questions about this part

Is this the drawer or the housing it slides into?

This is the box, the removable drawer you fill with detergent. The housing it sits in is a separate part. Check your model number on the label inside the door opening to confirm it's listed before you order.
