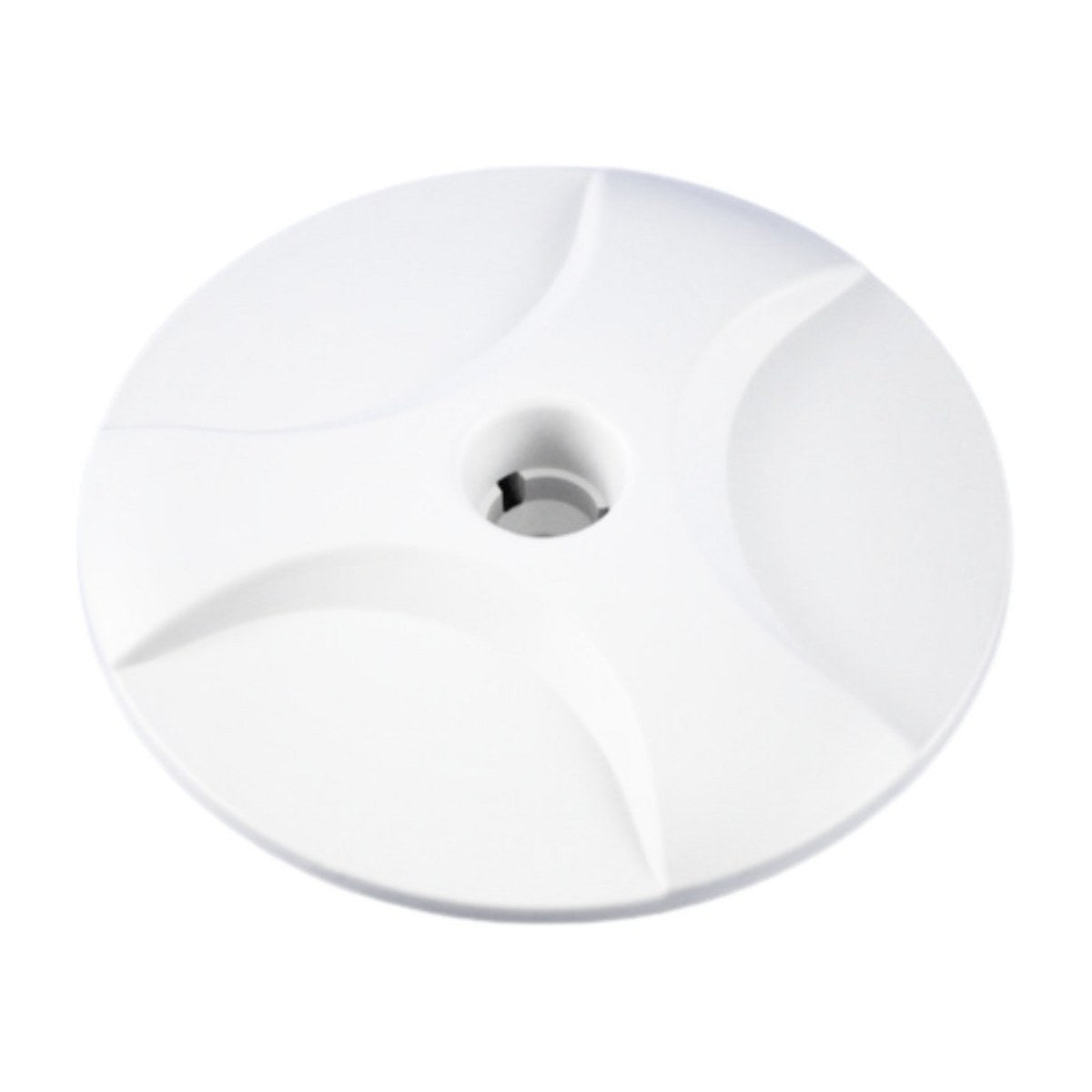

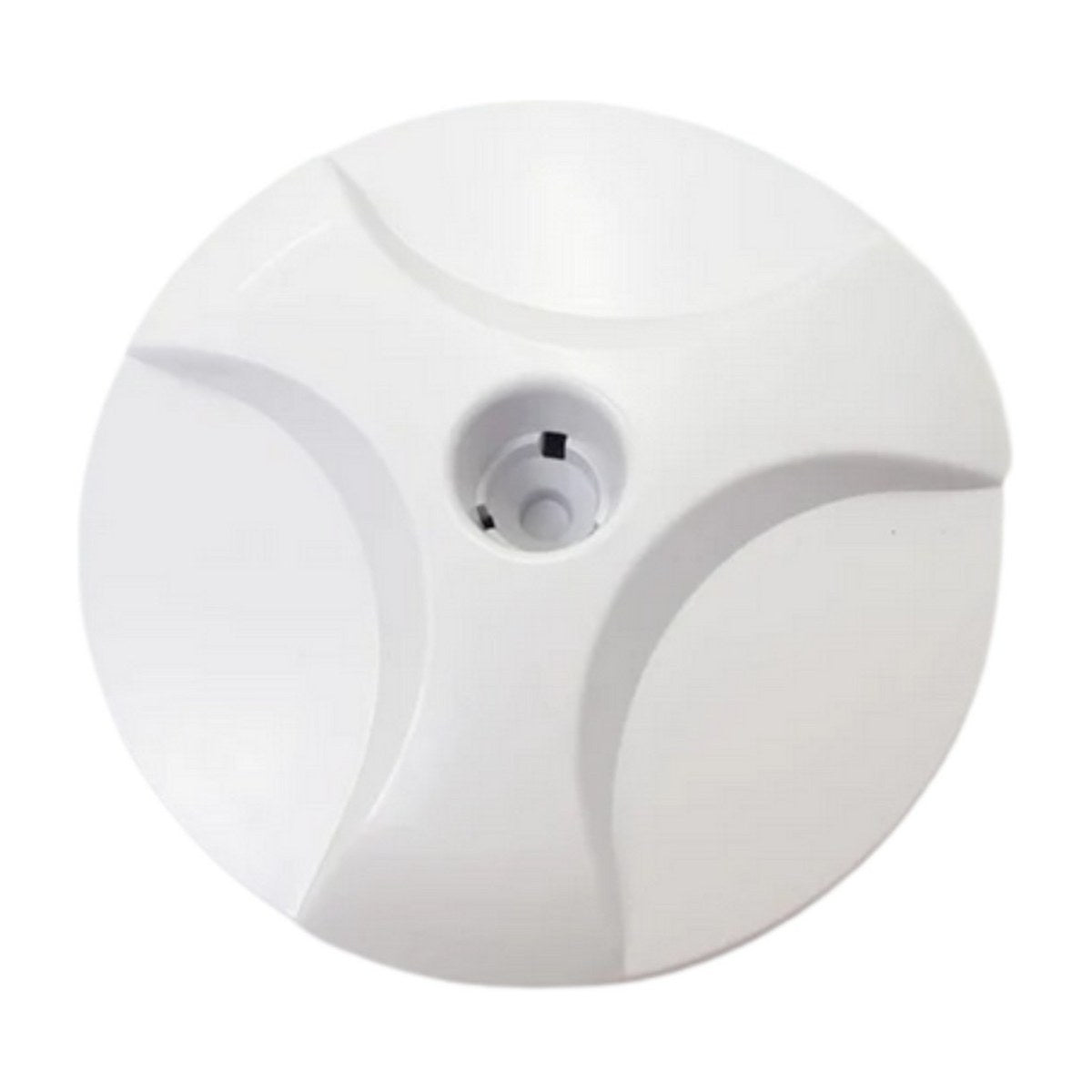

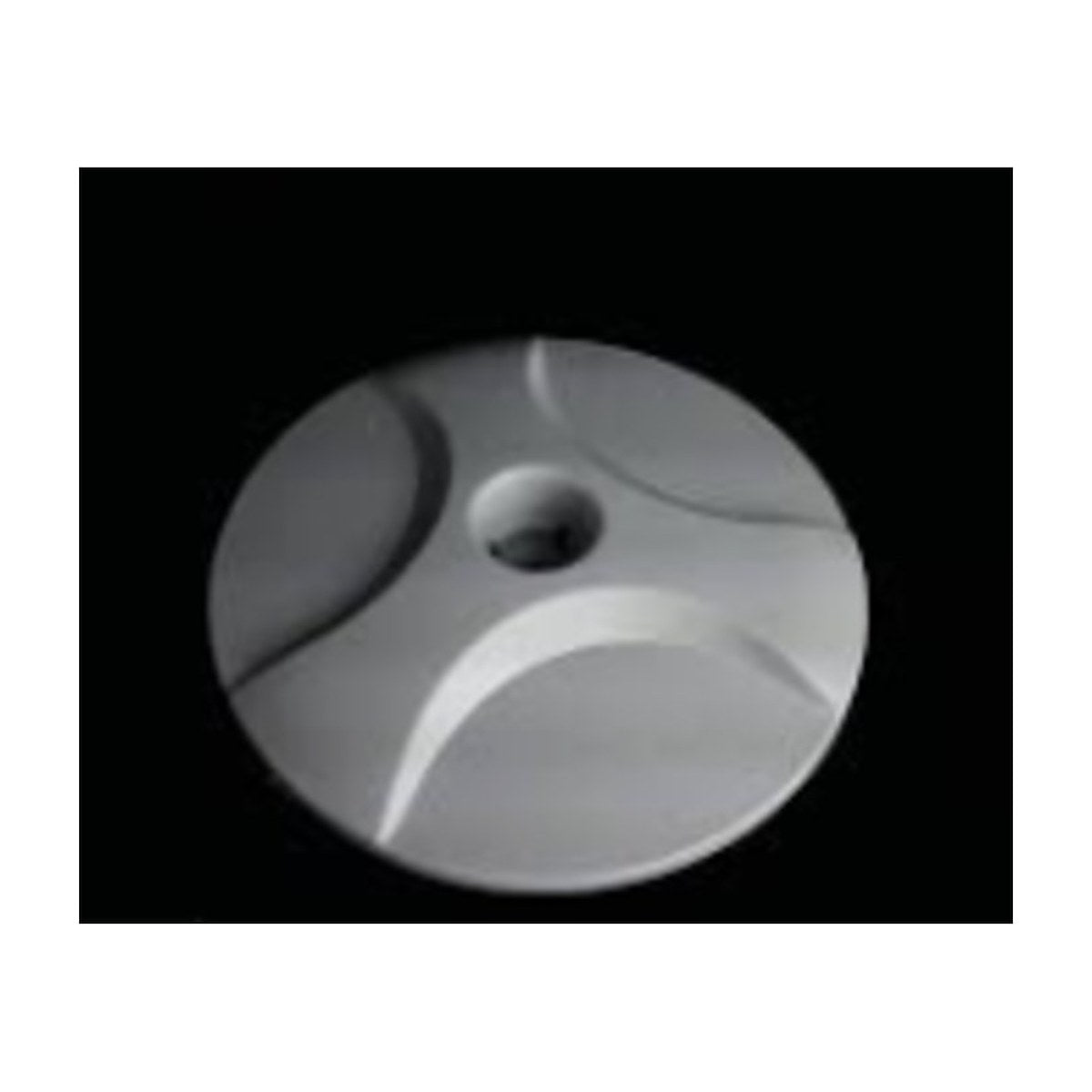

H0020201869 Genuine Drum Rear Cover for Fisher & Paykel, Haier Washing Machines WH8560P1 WH8060P1 WH7560J1 WH8560F1 HWM85-B14266 HWM75-B12266

H0020201869 is the genuine drum rear cover for Fisher & Paykel and Haier front load washing machines. It's listed for F&P WH7560J1 and WH7560P1, the WH8060P1, and WH8560F1 or WH8560P2, as well as Haier HWM75-B12266 and HWM85-B14266 and model HWX8040DW1. The cover is held by a screw with a cap over it. Those are separate parts, the cap being H0020203100 and the screw H00330057500A, so check yours can be reused.

When a washer drum rear cover needs replacing

This cover fits at the back of the drum and is fixed in place by a screw under a cap. It isn't a part that wears out quickly, so it's usually replaced because it has cracked, warped or been damaged during another repair, such as a bearing or drum job where the machine is stripped down. A cracked or loose cover can knock or scrape as the drum turns, especially at spin speed, and broken pieces can end up between the drum and tub. A new rhythmic tapping from the back of the machine is worth investigating early.

Part details

• Genuine Fisher & Paykel and Haier part H0020201869
• Rear cover for the washing machine drum
• Used with cap H0020203100 and screw H00330057500A, sold separately
• Suits F&P WH series and Haier HWM models on file

Fitting the rear cover

Unplug the washer and turn off the taps before opening it up. Access depends on the model, so photograph each step as you go to make reassembly easier. Fit the new cover in the same position, refit the screw and press its cap on. Turn the drum by hand to check nothing rubs, then run a rinse and spin and listen for any noise.

Questions about this part

Do I need the screw and cap as well?

They aren't part of this cover. If the original screw or cap is damaged or went missing during the repair, order cap H0020203100 and screw H00330057500A at the same time so the cover is held securely.
