GC566-1170 Generic Oven Bottom Element 1300W suits Baumatic, Emilia, Technika Ovens BA190SS BA187SS BAO6008 L156SS DO67MS EF6A1
- Original part no.
- GC566-1170
- Part grade
- Generic
- Appliance
- Oven Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

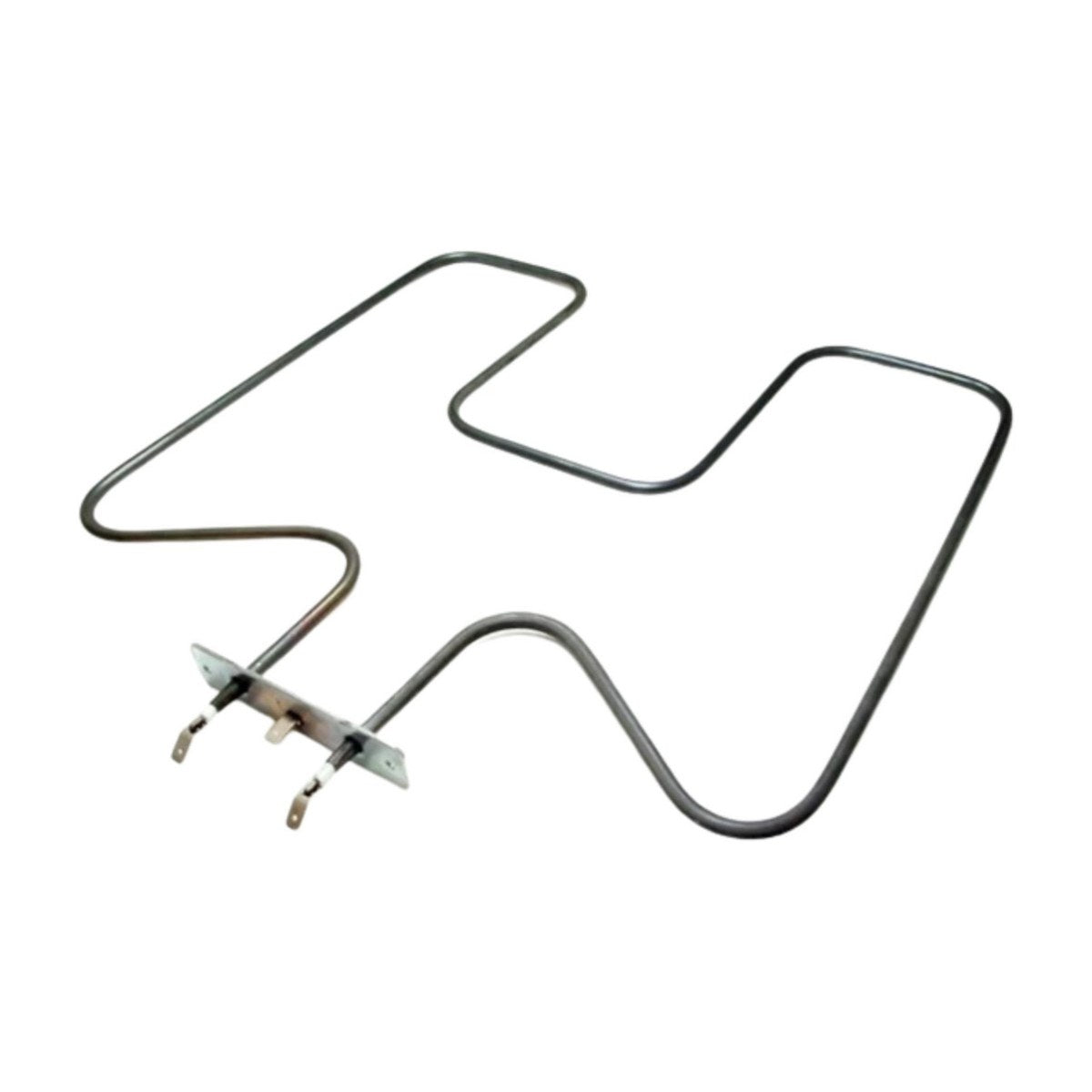

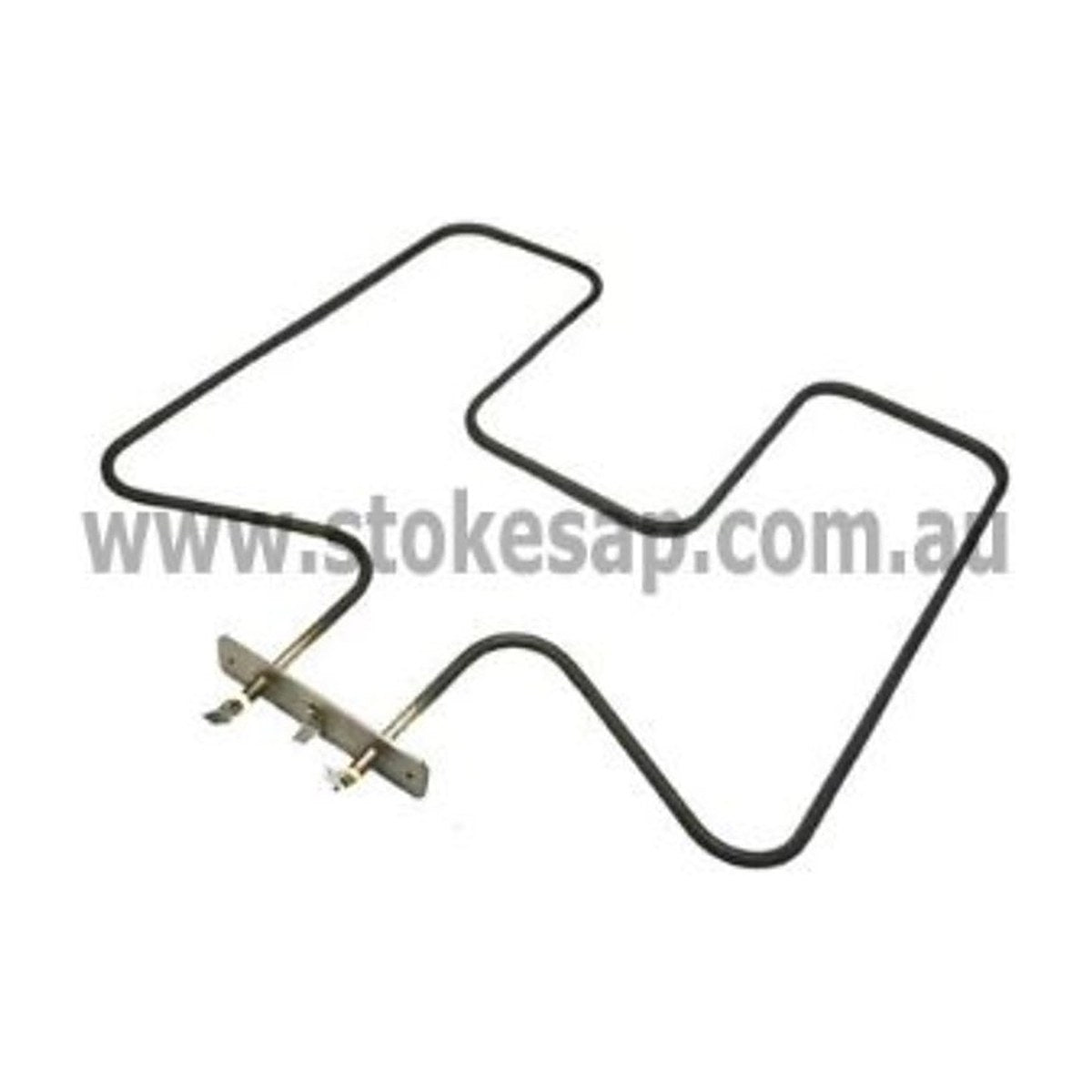

Built to suit Baumatic, Emilia and Technika ovens, GC566-1170 is a generic 230V bottom element rated at 1300W. It cross references to 1170000708 and 1170000008, the numbers often stamped on the old element or shown in the parts book. Models on file include BA180SS, BA187SS, BA190SS, BAO6007, BAO6008, L156SS, L186SS and DO67MS.
Baumatic oven not baking underneath? Test the bottom element
The bottom element warms the oven from below and carries most of the load on conventional and pastry settings. Once it fails, pizza bases and pie crusts stay soft, casseroles take much longer, and the oven may never quite reach the set temperature. A broken element can also trip the safety switch or leave a scorched spot under the oven floor. Check it with a multimeter while the oven is isolated. A reading of open circuit, or a short to the metal sheath, means it's time for a new one.
Part details
- Generic bottom element, part GC566-1170
- Rated 1300W at 230V
- Cross references 1170000708 and 1170000008
- Suits Baumatic, Emilia and Technika ovens on the fit list
| Power | 1300W |
|---|---|
| Voltage | 230V |
Changing the lower oven element
Switch off at the isolating switch and let the oven cool completely. Ovens that are hard-wired must be worked on by a licensed electrician. You'll usually need to slide the oven out of its cavity to reach the rear panel or base cover. Note the wire positions, transfer them to the new element, lay any insulation back the way it was and test on conventional bake.
Questions about this part
What other numbers is this element known by?
GC566-1170 cross references to 1170000708 and 1170000008. If either number is stamped on your old element, this part should match. Still unsure? Compare the shape and terminals, or send your model number through the parts enquiry form.
Specifications
| Brand | Universal |
|---|---|
| Original part number | GC566-1170 |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | GC566-1170_G |
| Appliance | Oven Parts |
| Shipping weight | 0.7 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
