EG55.17024.010 Generic Thermostat 30 to 110°C 16A with Gland, EGO 55.17024.010 Type, Universal Adjustable Thermostat
- Original part no.
- EG55.17024.010
- Part grade
- Generic
- Appliance
- Universal Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Quality checked generic part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

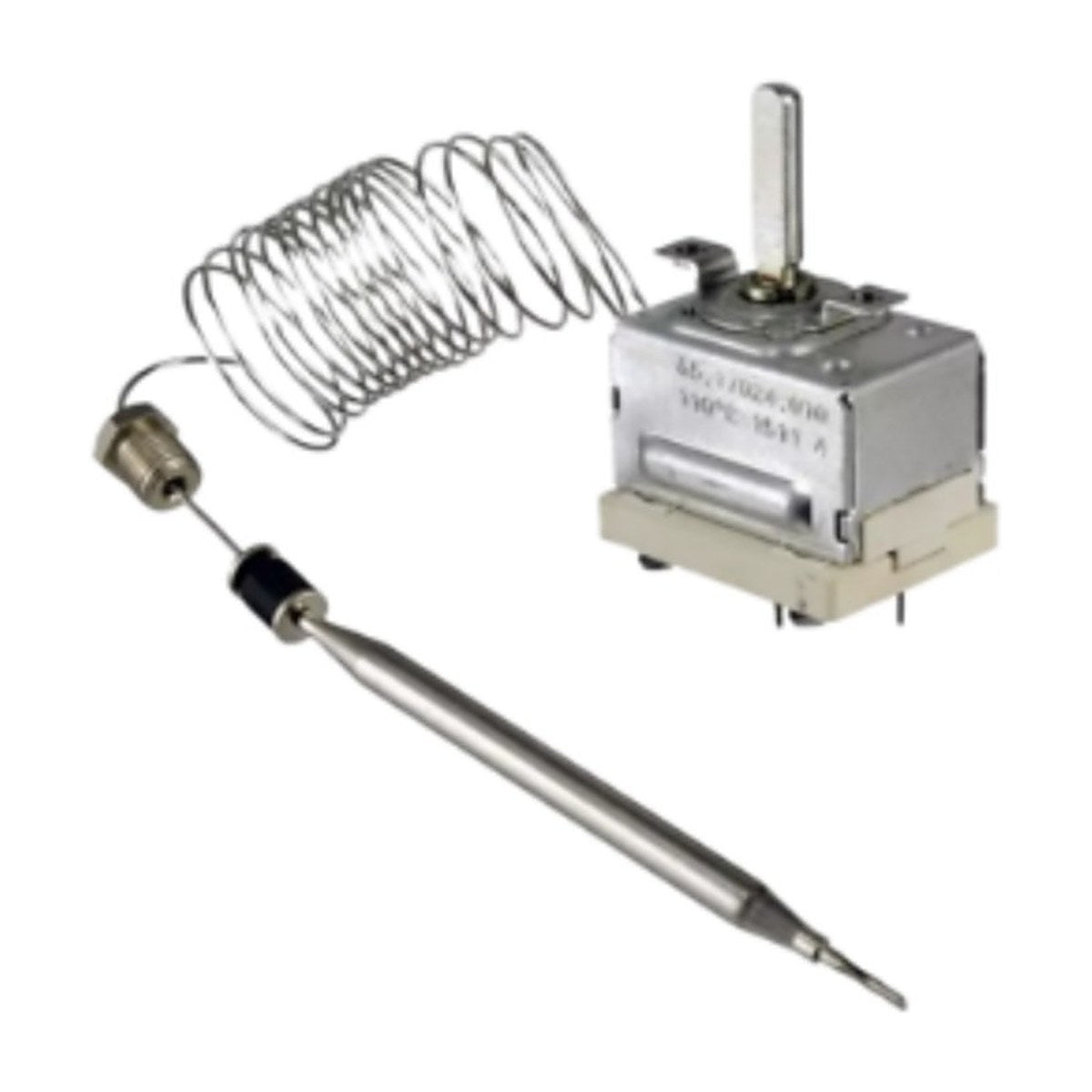

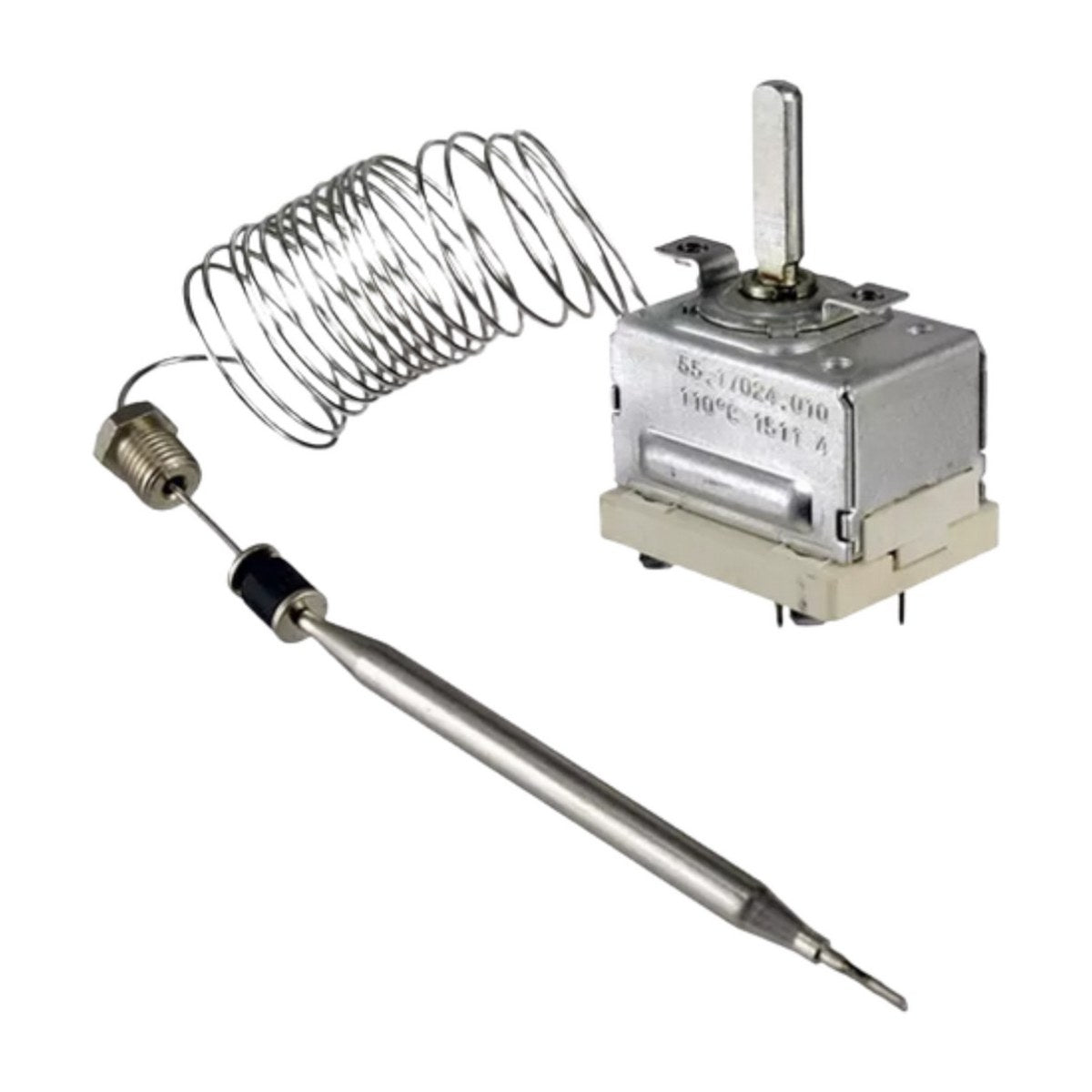

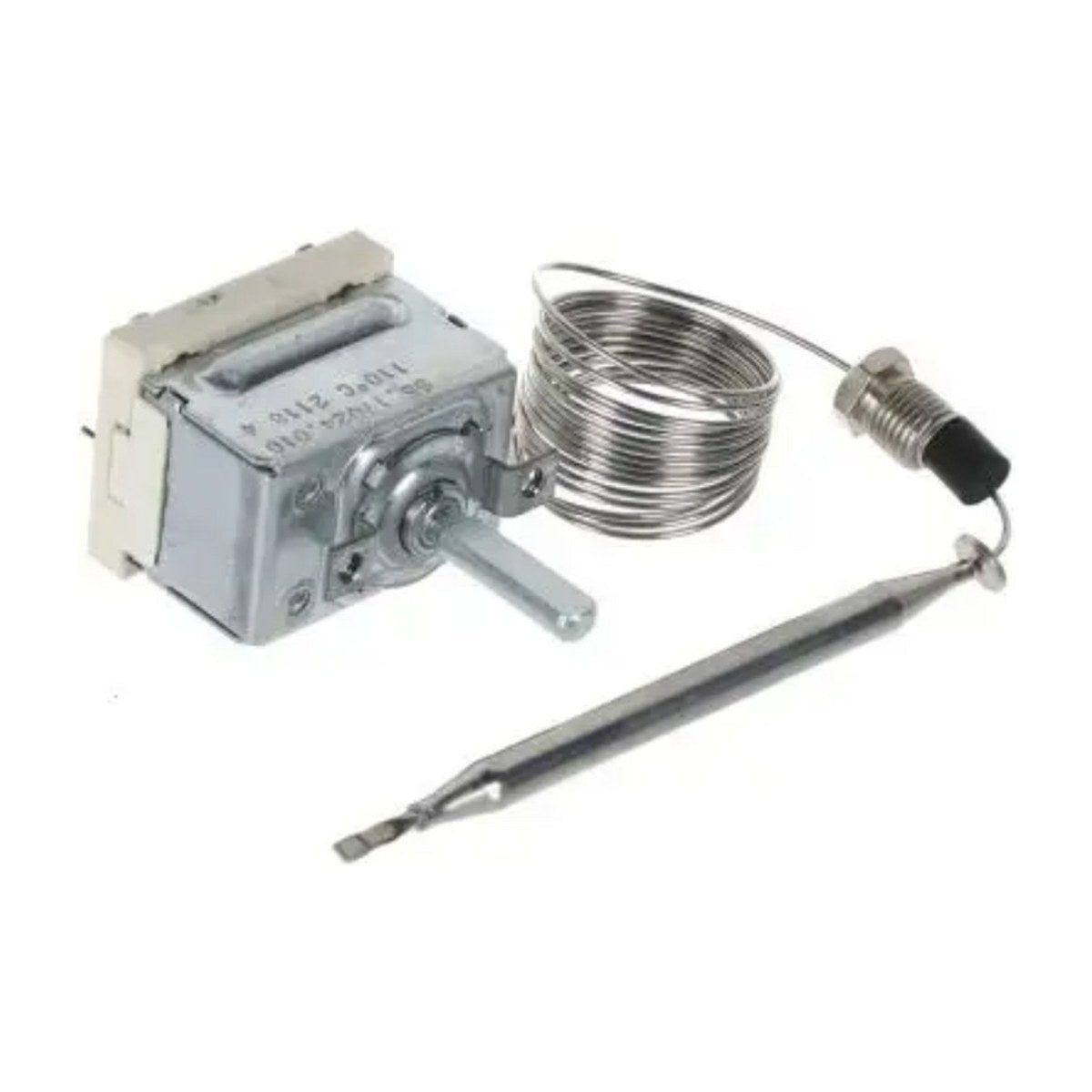

EG55.17024.010 is a generic adjustable thermostat that controls between 30 and 110°C and switches loads up to 16A. It cross references EGO number 55.17024.010 and comes with a gland for mounting where the sensor passes through a wall or tank. Check the temperature range, rating and mounting style against your old thermostat before ordering, as EGO makes many similar looking units.
How an adjustable thermostat controls temperature
The thermostat senses temperature at its probe and opens its contacts once the set point on the dial is reached, then closes them again as things cool. That cycling keeps the heating element close to the chosen temperature. When it fails, the element may never switch on, may run flat out with no control, or the temperature may wander well away from the dial setting. Burnt terminals, a broken or kinked sensor line and a spindle that turns without any click are signs worth checking.
Part details
- Generic thermostat, cross reference EGO 55.17024.010
- Adjustable range 30 to 110°C
- Contact rating 16A
- Supplied with a gland
| Range | 30 to 110°C |
|---|---|
| Rating | 16A |
| Includes | Gland |
Fitting the thermostat
Isolate the equipment at the switchboard first. Most fixed catering and heating equipment is hard-wired, so have a licensed electrician fit the thermostat. Feed the sensor through the gland without kinking the line, tighten the gland so it seals, and connect the wires exactly as they came off the old one. Check the cut-off point with a thermometer once it's running.
Questions about this part
Can I use this thermostat in a deep fryer?
Only if the fryer's existing thermostat has the same range. This one adjusts from 30 to 110°C, while frying oil normally runs hotter than that. Match the range on your old thermostat, or on the appliance's data label, before ordering.
Specifications
| Brand | Universal |
|---|---|
| Original part number | EG55.17024.010 |
| Part grade | Generic : Generic compatible replacement, a lower cost alternative to the original part. |
| SKU | EG55.17024.010_G |
| Appliance | Universal Parts |
| Shipping weight | 0.3 kg |
