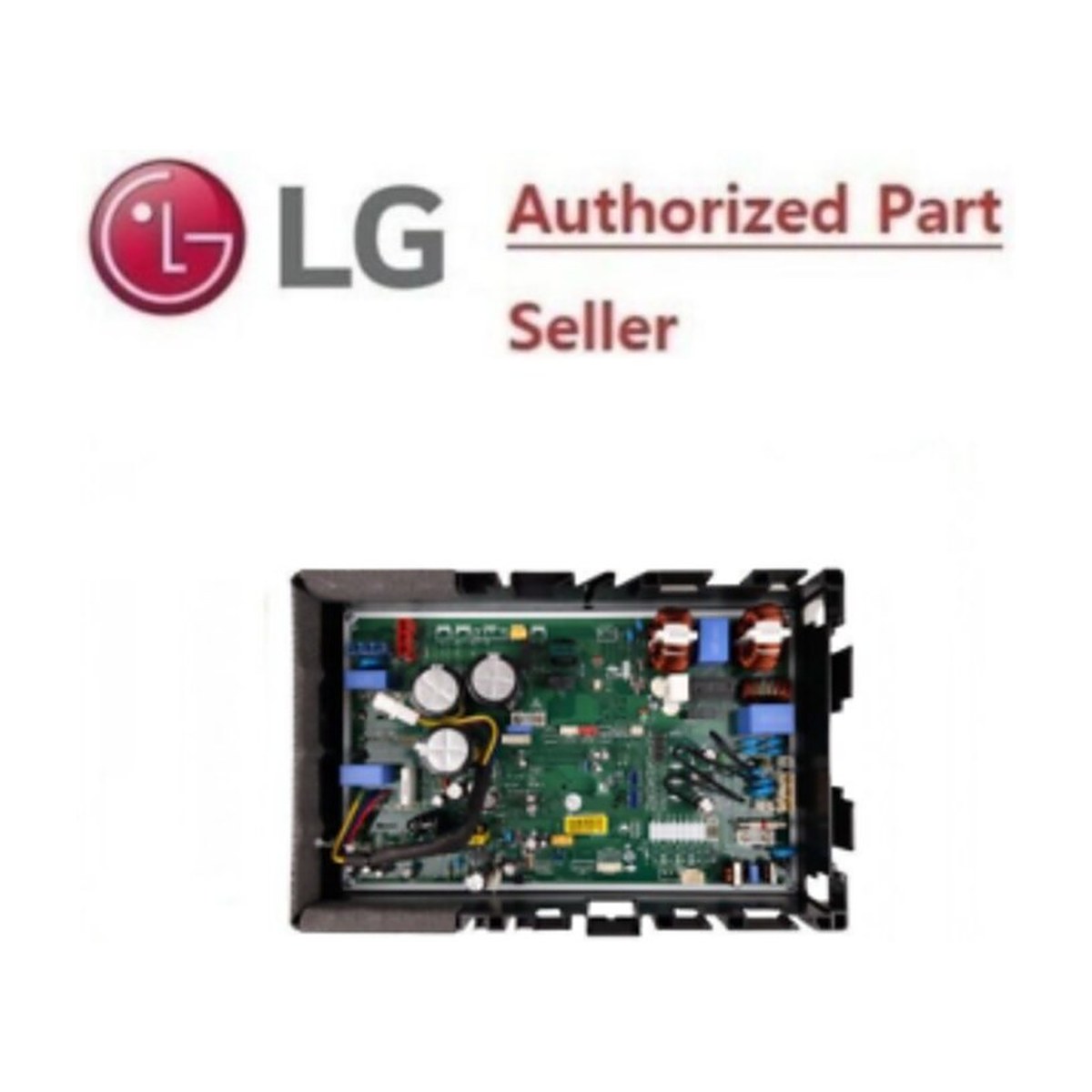

EBR83796106 Genuine Inverter PCB Assembly for LG Air Conditioner Outdoor Units, LG Outdoor Inverter Board
- Original part no.
- EBR83796106
- Part grade
- Genuine
- Appliance
- Air Conditioner Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- MorleyOrder in, approx. 5 to 15 days to arrive in store
- MyareeOrder in, approx. 5 to 15 days to arrive in store
- JoondalupOrder in, approx. 5 to 15 days to arrive in store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details
Part EBR83796106 is a genuine LG inverter PCB assembly from the outdoor side of an LG air conditioner. It's the board that converts the supply into variable frequency power for the inverter compressor, letting the system adjust its output instead of cycling on and off. A long run of LG boards share the EBR83796 start, so the full number matters. We don't have a model list for this board, so check the label on the one you're replacing.
Outdoor inverter board faults on LG split systems
A failing outdoor inverter board tends to show itself when the system is asked to work hardest. The compressor may refuse to start, run briefly and stop, or the outdoor unit may trip the circuit breaker. The indoor unit will often flash or display a code linked to the compressor, inverter or communication between the units. Look inside the outdoor unit for scorched power components, cracked solder joints, a blown fuse or signs of insects. Fix any cause such as a faulty compressor or wiring before fitting a new board.
Part details
- Genuine LG part EBR83796106
- Inverter PCB assembly for LG air conditioner outdoor units
- Many similar EBR83796 boards exist, match all digits
- No model list on file
Outdoor board safety and fitting
This is licensed electrician or qualified technician territory, as outdoor units are hard wired and the board holds a dangerous charge after switch off. Isolate at the switchboard and outdoor isolator, allow time to discharge and test before touching. Record every terminal and plug with photos, transfer the board's mounting hardware, use new thermal compound under the power module, and recheck the wiring before power up.
Questions about this part
Is this board for the indoor or outdoor unit?
Outdoor. Inverter boards like this one sit in the outdoor unit with the compressor they drive. Even so, confirm by the label on your old board or the parts list for your outdoor model before ordering, as LG has many similar numbers.
Specifications
| Brand | LG |
|---|---|
| Original part number | EBR83796106 |
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | EBR83796106 |
| Appliance | Air Conditioner Parts |
| Shipping weight | 0.4 kg |
