EBF49827803 Genuine Door Lock Switch Assembly for LG Front Load Washing Machines, 4 Pin Door Interlock
- Original part no.
- EBF49827803
- Part grade
- Genuine
- Appliance
- Washing Machine Parts
This part is an order in item. We order it from our supplier once you place your order. It usually takes approximately 5 to 15 days to arrive in store, then we ship it to you or hold it for collection.
Delivery times by state
| WA metro | 1 to 2 business days |
|---|---|
| WA regional | 2 to 5 business days |
| SA and NT | 3 to 6 business days |
| VIC, NSW and ACT | 3 to 6 business days |
| QLD | 4 to 7 business days |
| TAS | 4 to 7 business days |
| Remote areas | 5 to 10 business days |
Estimated times after dispatch. Tracking details are emailed when your order ships.
Local pickup in WAMorley, Myaree or Joondalup
- 3/135 Russell StreetIn stock at this store
Choose Pickup at checkout to collect from our Morley, Myaree or Joondalup store in Western Australia. Please wait for your ready for collection notification before coming in.
Check your model number before ordering. Not sure this part suits your appliance? Send us your model number and we will confirm it for you.
- Genuine manufacturer part
- Tracked delivery Australia-wide
- Parts experts on call
- Secure checkout
Product details

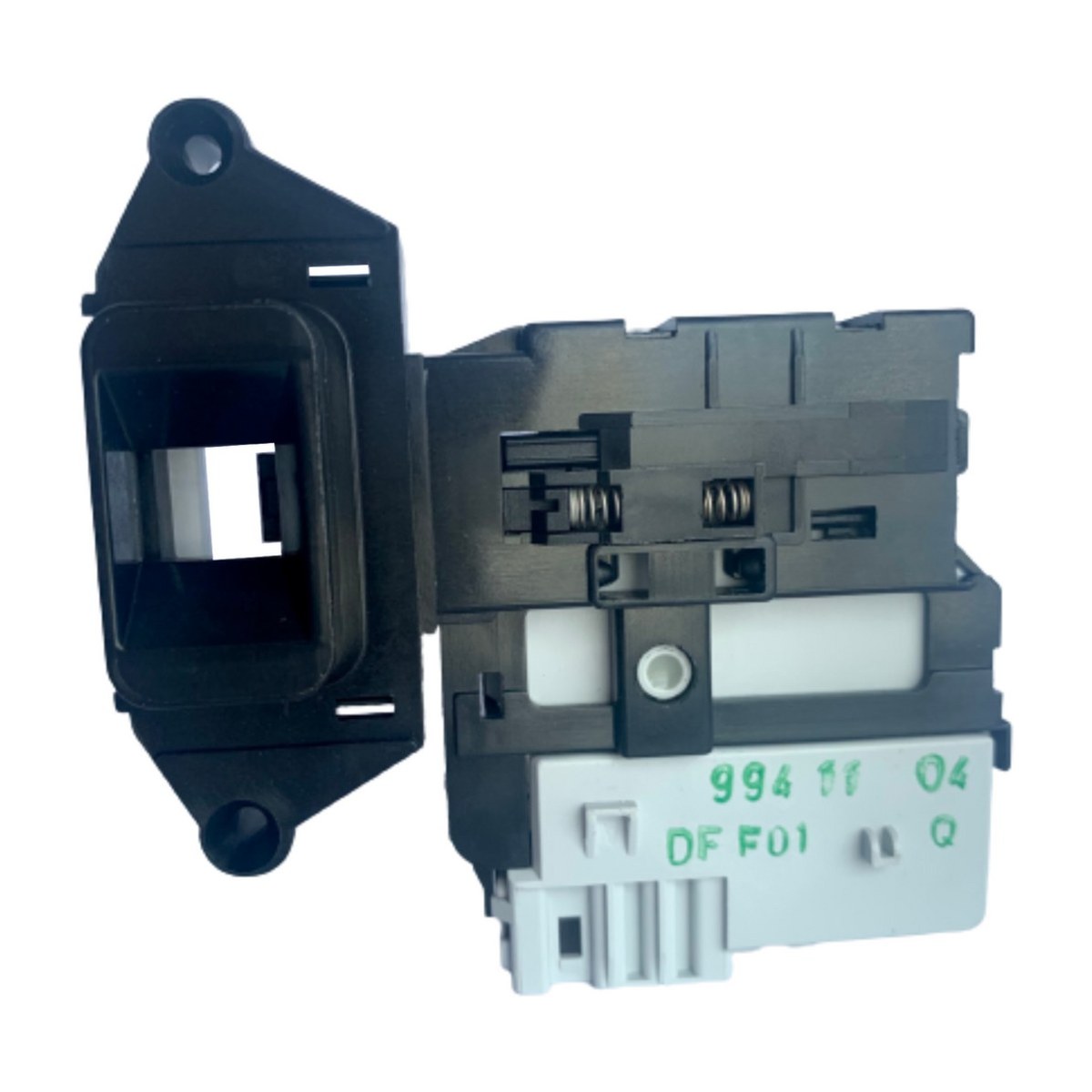

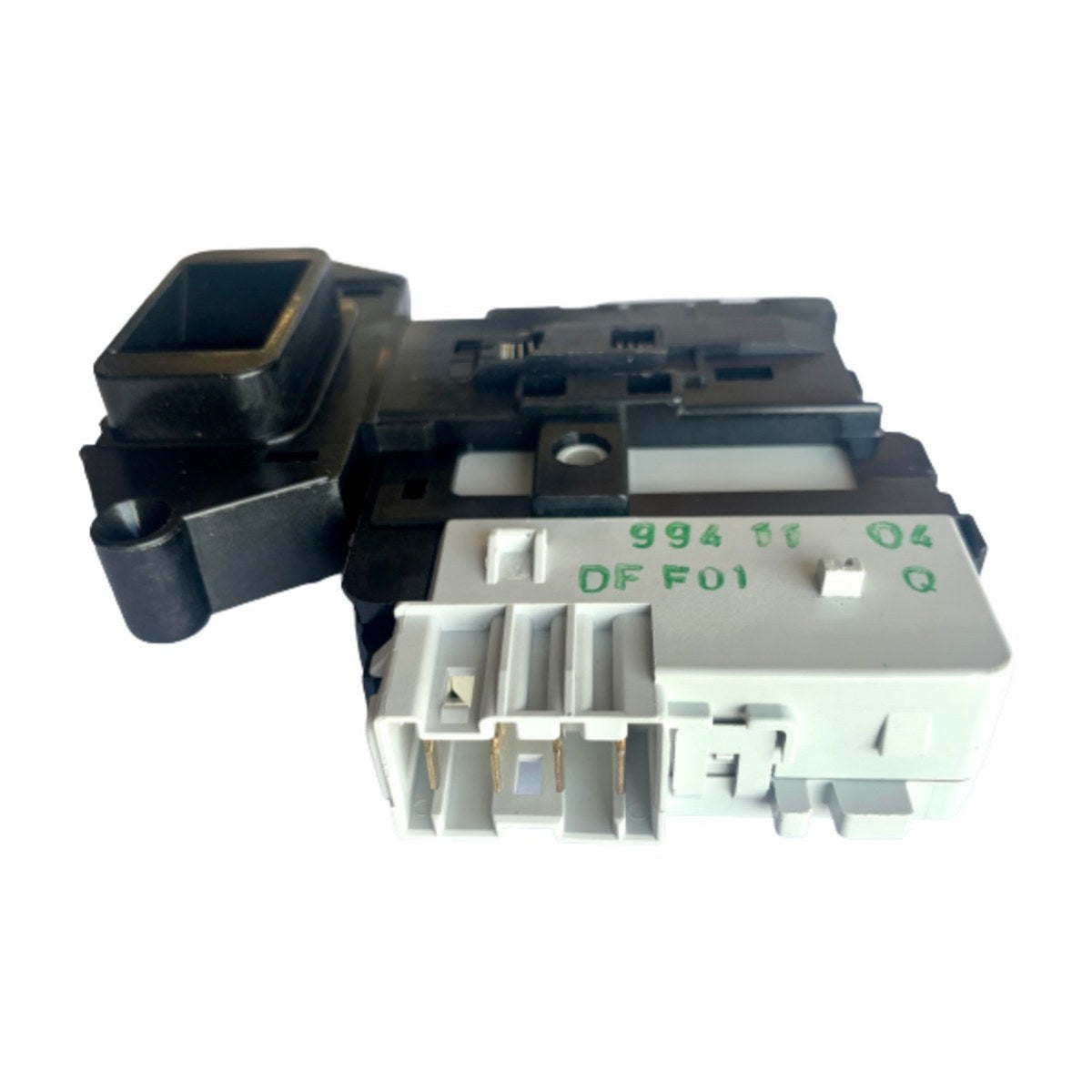

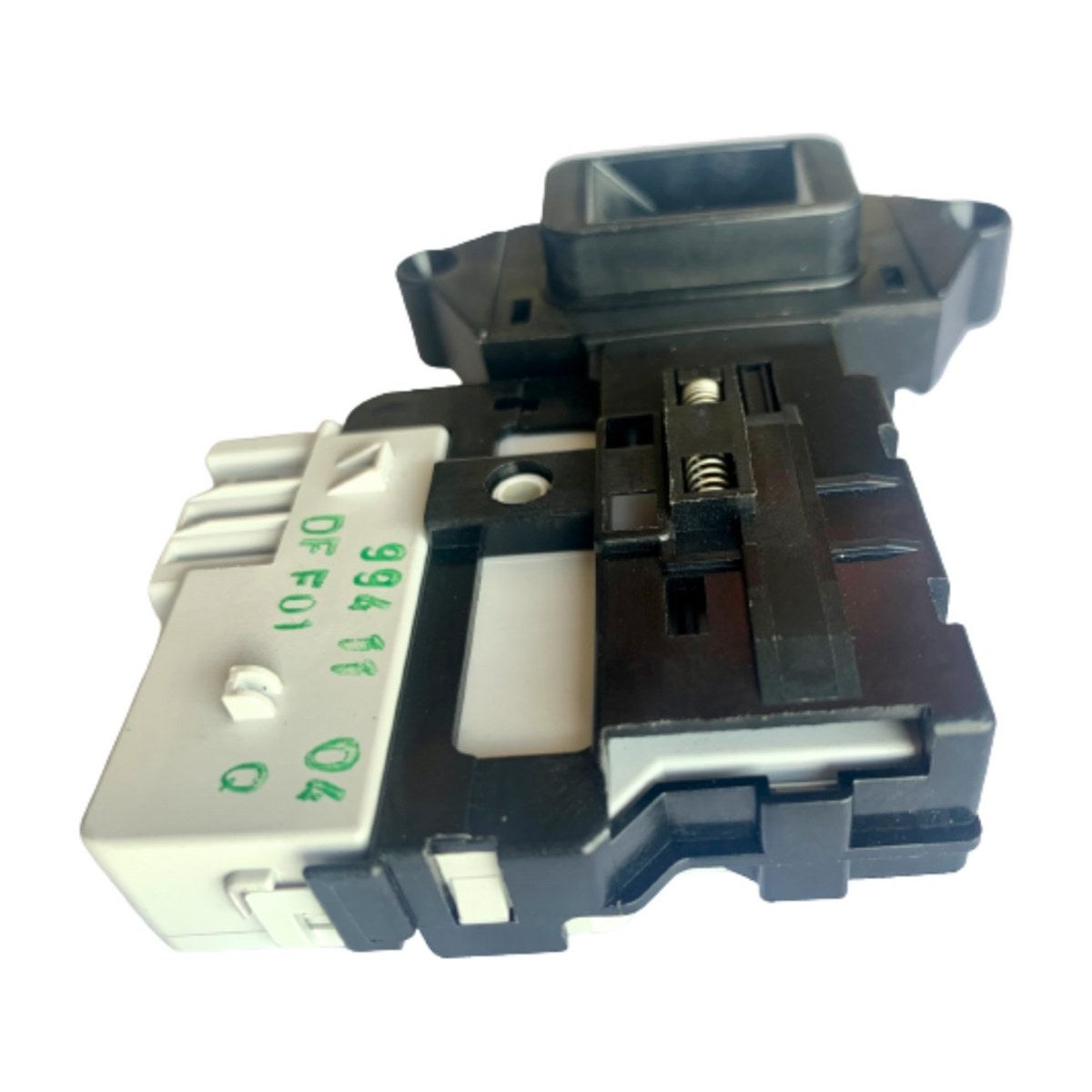

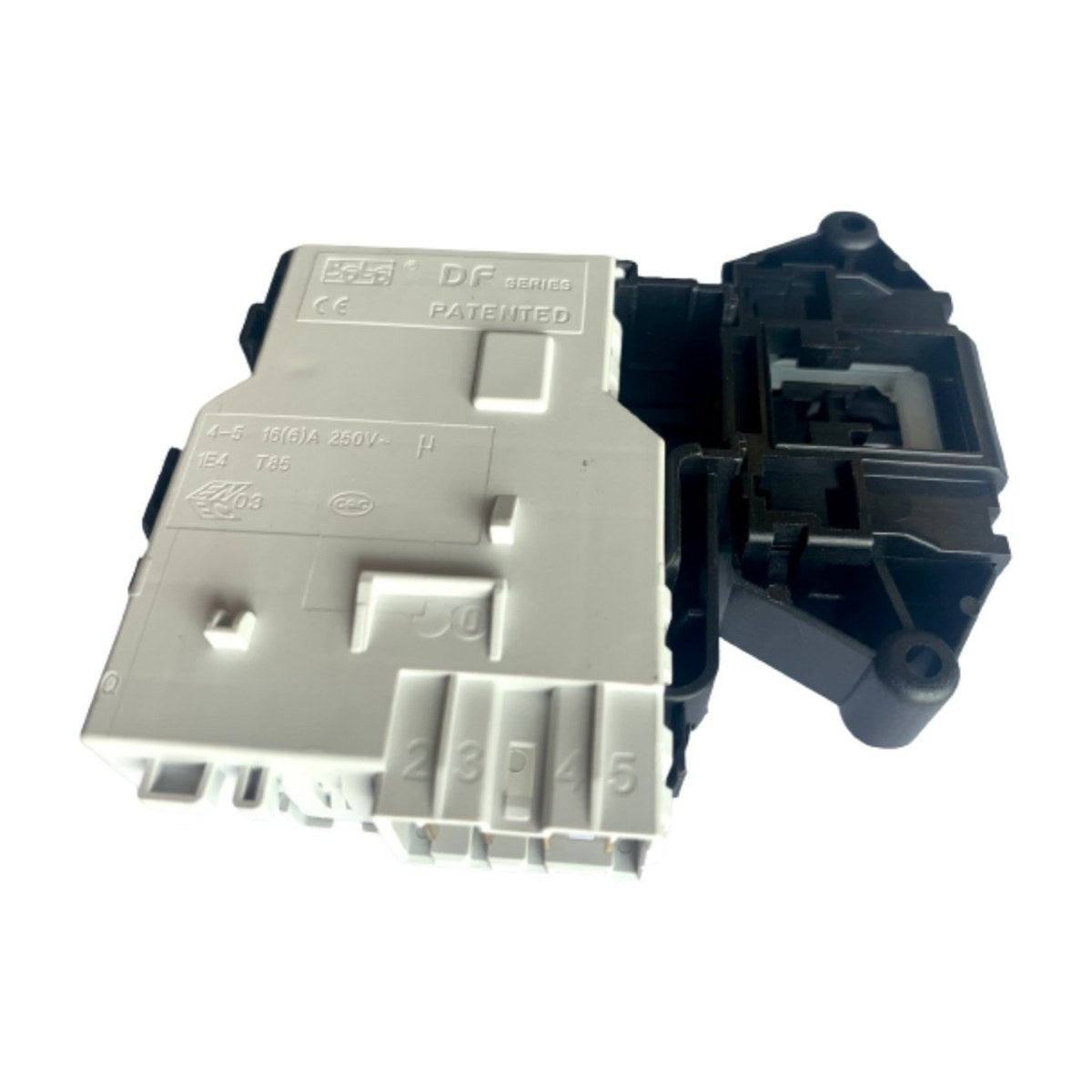

Genuine LG part EBF49827803 is the door lock switch assembly for LG front load washing machines, fitted with a 4 pin connector. LG describes it as a locker switch assembly, and it latches and locks the door so a wash can start, then releases it at the end. Compare the pin count and the part number label on your old lock with this one before you order.
LG front loader door won't lock or open? Signs of a bad door lock
Before a front loader will fill, the control board has to see the door lock confirm it's closed and locked. If the lock switch fails, the machine may refuse to start, click repeatedly while it tries to lock, show a door error code such as dE, or stop partway through a cycle. The opposite also happens, with the door staying locked long after the wash has finished. A broken door hook or a misaligned door can mimic the same problems, so check those first.
Part details
- Genuine LG door lock switch assembly
- Part number EBF49827803
- 4 pin electrical connector
- Suits LG front load washing machines
| Connector | 4 pin |
|---|
Fitting the LG door lock
Unplug the machine and make sure there's no water left in the drum. Release the outer clamp on the door seal and fold the seal back to reach the lock, then remove the screws holding it to the front panel. Unplug the 4 pin connector, move it to the new lock and refit everything. Run a short program to confirm the door locks and releases properly.
Questions about this part
Is my lock the 4 pin version?
Count the terminals in the plug on your existing lock. EBF49827803 has 4 pins. LG has used different lock styles over the years, so a matching pin count and a matching part number label are the best way to be sure.
The door stays locked after the wash. Is it the lock?
Front loaders hold the door locked while there's water or heat in the drum, and for a short time after the cycle ends. If it stays locked well beyond that with the drum empty, the door lock is a likely suspect.
Specifications
| Original part number | EBF49827803 |
|---|---|
| Part grade | Genuine : Genuine part supplied by the appliance manufacturer. |
| SKU | EBF49827803 |
| Appliance | Washing Machine Parts |
| Shipping weight | 0.3 kg |
Shipping and returns
Shipping
In-stock parts ordered before 2pm AWST on business days are dispatched the same day. We deliver Australia-wide with Australia Post and couriers, with tracking on every order.
Order in parts usually reach us within 5 to 15 days and are then dispatched to you straight away.
Local pickup is also available from our stores in Morley, Myaree and Joondalup, Western Australia. Choose Pickup at checkout and wait for your ready for collection notification before coming in.
Returns
Unused parts in original packaging can be returned within 30 days. Electrical parts that have been fitted cannot be returned unless faulty. Please check your model number before ordering.
